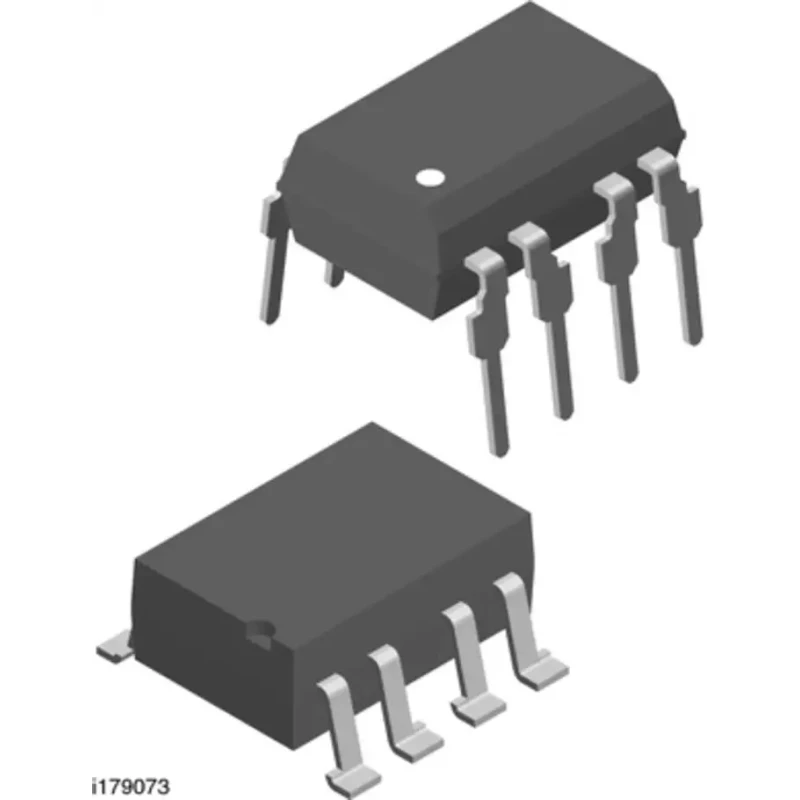

Vishay DC Input Optocoupler Through Hole 8-Pin DIP MCT6
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | MCT6 |
| Mount Type | Through Hole |
| Series | MCT6 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 50% |
| Minimum Current Transfer Ratio | 20% |
Key Features
- Two isolated channels per package for enhanced signal integrity.
- Maintains high electrical isolation with 5.3 kVrms isolation voltage.
- Typical current transfer ratio of 50% and leakage current of 1.0 nA.
- Operating temperature range from -55°C to 100°C for industrial applications.
- Designed to drive medium-speed logic and eliminate ground loop noise issues.
- Suitable to replace relays and transformers in digital and analog interfaces.
- Complies with CSA 93751, DIN EN 60747-5-2, IEC 60065, UL1577, and BSI IEC 60950 standards.
- Maximum forward voltage of 1.5V and maximum input current of 60mA.
Product Description
Vishay MCT6 is a two channel DC input optocoupler provided in an 8-pin Dual Inline Package (DIP) with through-hole mounting. It consists of an optically coupled pair combining gallium arsenide infrared LEDs and silicon NPN phototransistors, ensuring excellent electrical isolation between input and output.
This device supports signal transmission including DC levels while maintaining a high isolation voltage of 5.3 kVrms, making it ideal for high-density applications where noise elimination and ground loop isolation are critical.
With a typical current transfer ratio of 50% and leakage current around 1.0 nA, the MCT6 is specifically designed to drive medium-speed logic circuits effectively. Its wide operating temperature range from -55°C to 100°C allows use in harsh industrial environments.
The MCT6 can effectively replace mechanical relays and transformers in various digital interface and analog applications such as CRT modulation, offering robust and reliable performance compliant with multiple safety standards including CSA 93751, DIN EN 60747-5-2 (VDE 0884), IEC 60065, UL1577, and BSI IEC 60950.
Two isolated optical channels per device for versatile signal interfacing. High isolation voltage of 5.3 kVrms for safety and noise immunity. Maximum forward voltage of 1.5V ensuring efficient operation. Maximum input current rating of 60mA suitable for various input signal levels.
Wide temperature tolerance from -55°C to 100°C for industrial use. Through-hole 8-pin DIP package for easy PCB implementation. Extensive standards compliance assures quality and safety. Manufactured in Malaysia ensuring consistent quality control.
Typical low leakage current of 1.0 nA minimizing unwanted signals.
This optocoupler is applicable in industrial, laboratory, manufacturing, and electronic equipment designs where electrical isolation and signal integrity are paramount. Vishay's MCT6 ensures reliable performance in a compact form factor.
Explore the comprehensive range of Optocouplers and photodetectors at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCT6 optocoupler has a maximum isolation voltage of 5.3 kVrms, ensuring high electrical isolation between input and output.
This model operates within a temperature range of -55°C to 100°C, making it suitable for harsh industrial environments.
The typical current transfer ratio for the MCT6 is 50%, with a minimum of 20%.
The MCT6 features two isolated channels per package, allowing for versatile signal interfacing.
The maximum input current rating for the MCT6 is 60mA, suitable for various input signal levels.
This model uses through-hole mounting, provided in an 8-pin Dual Inline Package (DIP).
The maximum forward voltage for the MCT6 is 1.5V, ensuring efficient operation.
The MCT6 complies with several standards including CSA 93751, DIN EN 60747-5-2, IEC 60065, UL1577, and BSI IEC 60950.
The MCT6 has a typical leakage current of 1.0 nA, minimizing unwanted signals.
The MCT6 is suitable for various applications including industrial, laboratory, manufacturing, and electronic equipment designs requiring electrical isolation and signal integrity.
The MCT6 consists of gallium arsenide infrared LEDs and silicon NPN phototransistors, ensuring excellent electrical isolation.
The MCT6 is manufactured in Malaysia, ensuring consistent quality control.
