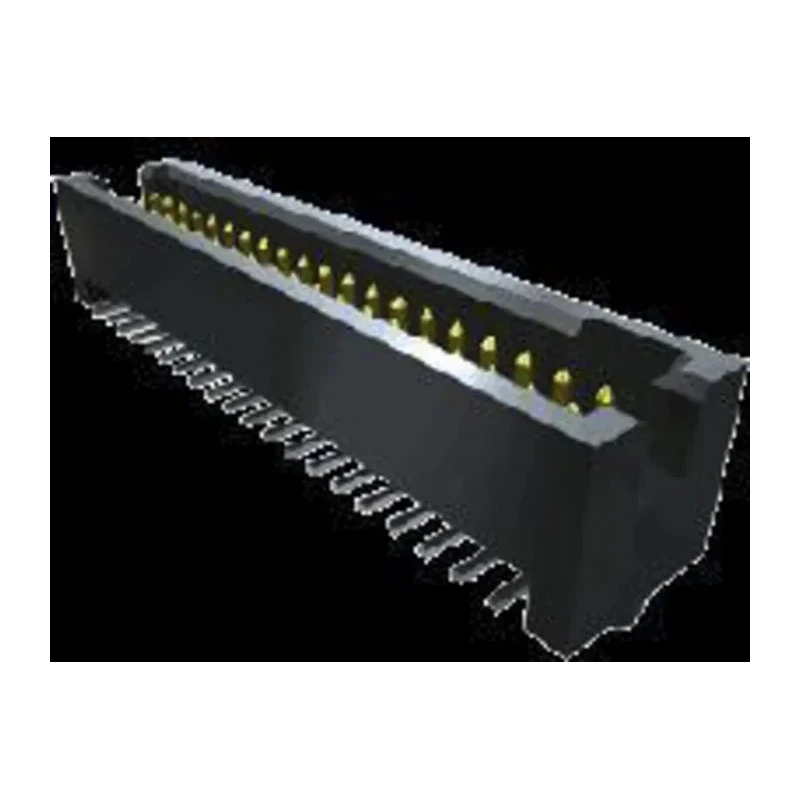

Samtec TFM Series Straight Through Hole PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-125-02-S-D-LC

Samtec TFM-125-02-S-D-LC is a Straight Through Hole PCB Header featuring a 1.27 mm pitch and 50 male contacts arranged in 2 rows with a shrouded design. It is designed for high reliability wire-to-board connections in demanding electronic applications.

The header housing is constructed from high-quality liquid crystal polymer material, providing durability and stability under harsh operating conditions. Contacts are made from phosphor bronze with gold plating, supporting low resistance and excellent conductivity for current ratings up to 3.2A and voltage up to 250V.

This component supports through-hole mounting with solder termination, ensuring a strong mechanical and electrical connection on printed circuit boards. Its operating temperature range spans from -55°C to 125°C, making it suitable for a wide variety of industrial and electronic environments.

The shrouded body design enables blind mating and adds protection to the contacts, enhancing connector durability. Additional features include options for screw down, weld tab, and solder nail, which cater to rugged application requirements.

Compatible with the Tiger Eye™ contact sockets and cable assemblies, the TFM series is particularly well suited for high cycle, high-reliability applications in sectors like industrial manufacturing, automotive electronics, telecommunications, and instrumentation.

By choosing Samtec’s TFM Series Straight Through Hole PCB Header, designers and engineers can ensure consistent performance and reliable connector interfacing in their electronic assemblies.

Constructed with liquid crystal polymer housing for durability and stability. Gold-plated phosphor bronze contacts with .018 inch diameter posts ensure high conductivity. Supports a maximum current of 3.2A and voltage rating of 250V.

Designed for through-hole mounting with solder termination for robust assembly. Operates efficiently in temperature ranges from -55°C to 125°C. Shrouded body enables blind mating and enhanced protection. Includes screw down, weld tab and solder nail options for rugged applications.

Compatible with Tiger Eye™ contact sockets and cable assemblies for high reliability. Ideal for industrial, electronic, manufacturing and automotive wire-to-board connection solutions. Explore more PCB Headers and electronic components at EnvMart for industrial-grade quality and performance.
