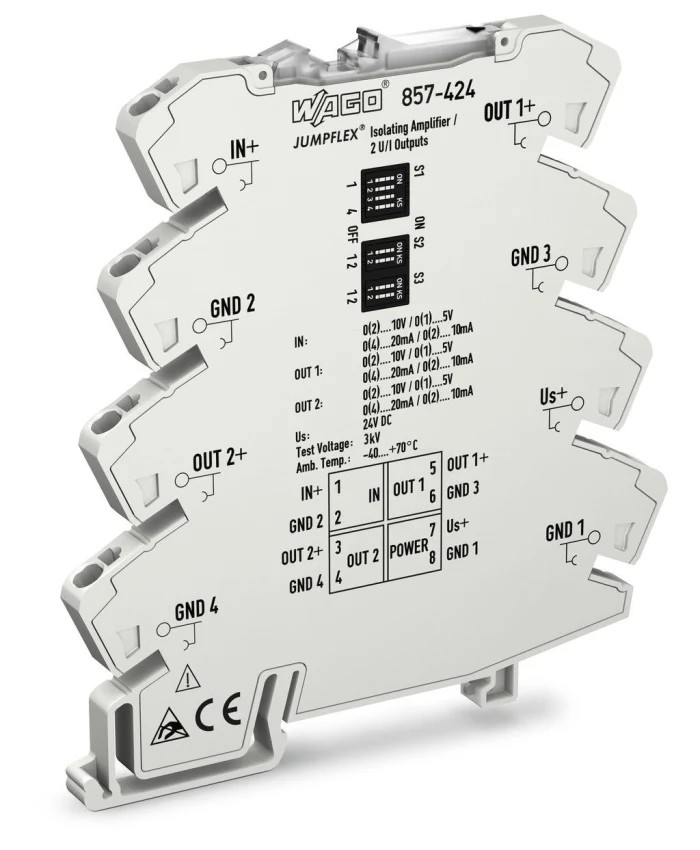

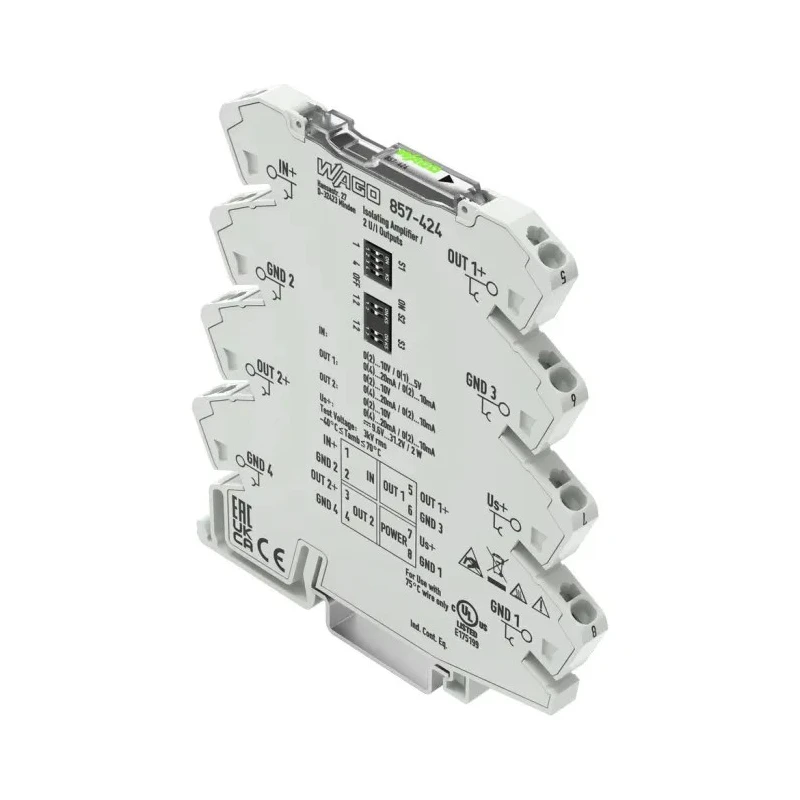

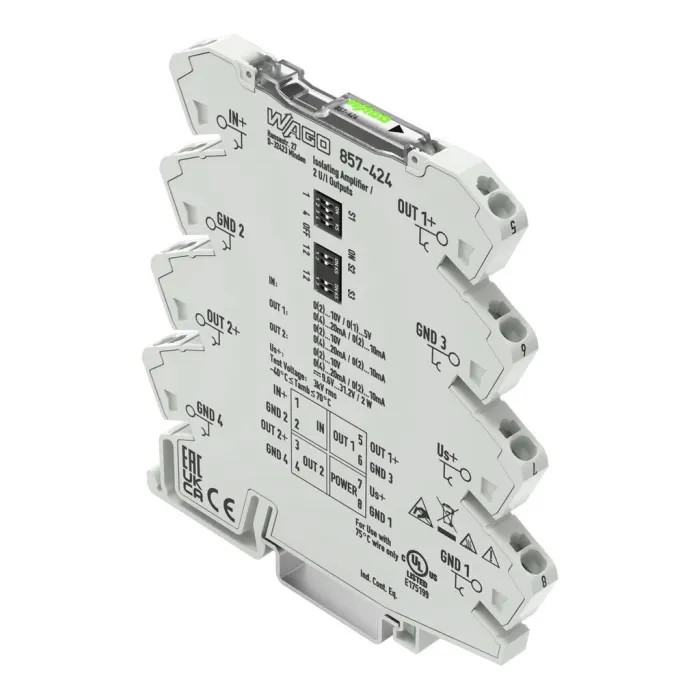

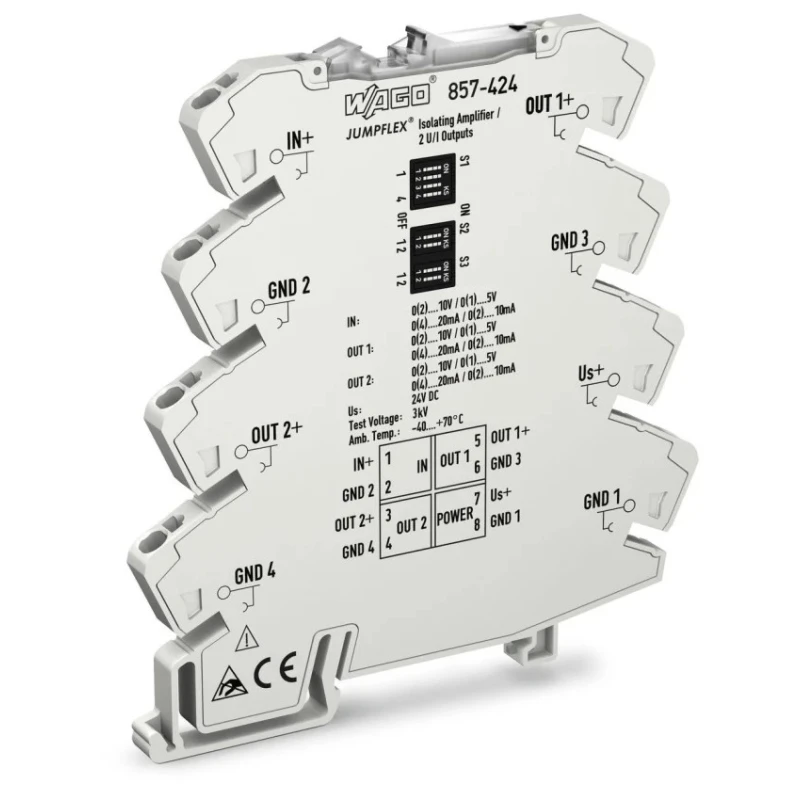

WAGO 857 Series Signal Conditioner Current/Voltage Input Current/Voltage Output 24V DC Supply 857-424

The WAGO 857 Series Signal Conditioner model 857-424 is a high-performance device designed for current and voltage signal input and output with a 24V DC supply voltage. It is ideal for industrial automation, electrical measurement, and monitoring applications where precise and reliable signal conditioning is essential.

This signal conditioner supports a wide input range covering 0 to 1 V, 0 to 10 mA, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 2 to 10 V, 2 to 10 mA, and 4 to 20 mA. The output ranges include 0 to 10 V, 0 to 10 mA, 0 to 20 mA, 2 to 10 V, 2 to 10 mA, and 4 to 20 mA, ensuring compatibility with diverse industrial signal requirements.

Equipped with push-in cage clamp terminals and DIN rail mounting type, installation is straightforward within electrical panels. The device provides robust three-way electrical isolation rated at 2.5 kV, significantly enhancing safety and protecting connected equipment from electrical interference.

Its operational temperature range of -40°C to 70°C and IP20 rating enable it to perform reliably in demanding industrial environments. The unit’s configurable limit frequency between 100 Hz and 1 kHz allows customization for specific signal conditioning tasks.

Designed according to multiple international standards such as EN 61000-6-3 and EN 61326-1, this WAGO Signal Conditioner ensures compatibility and compliance in various industrial and manufacturing installations. Its signal doubler functionality is particularly useful for splitting input signals to multiple outputs while maintaining signal integrity.

Applications include automation systems, industrial monitoring and control, electrical measurement, and precise data transmission in manufacturing plants. The product is manufactured in Germany, reflecting high-quality engineering standards.

Supports dual configurable current and voltage input/output signals. Wide input/output ranges for versatile application. Three-way electrical isolation enhances safety and reduces interference. DIN rail mounting for easy installation within control panels.

Durable operation over -40°C to 70°C temperature range. IP20 rated enclosure for indoor industrial environments. Push-in cage clamp terminals for secure wiring. Compliant with IEC and EN international standards. Signal doubler type conditioner for splitting input signals.
