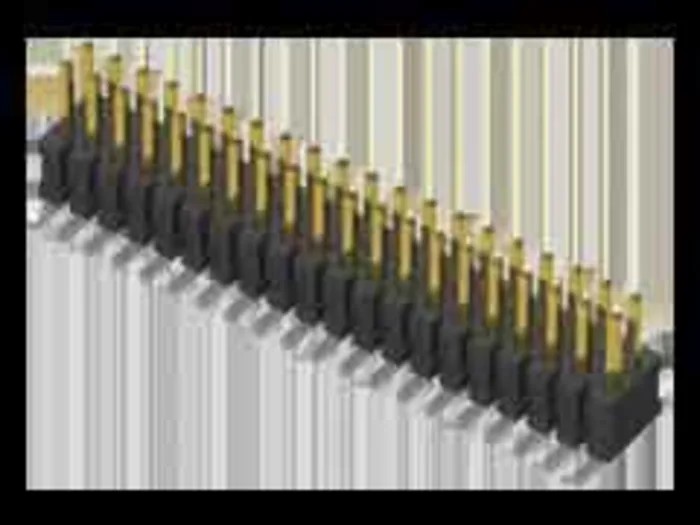

Samtec Straight Surface Mount Pin Header 20 Contacts 1.27mm Pitch 2 Row Unshrouded FTSH-110-01-L-DV-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | FTSH-110-01-L-DV-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 0.1mm |
| Mating Pin Length | 3.05mm |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Features phosphor bronze contacts plated with gold for corrosion resistance.
- Designed with 2 rows and unshrouded, straight orientation for versatile PCB mounting.
- Rated for a current capacity of 3.4 A operating between -55°C and 125°C.
- Solder termination type provides secure electrical connection.
- Contact tail pin length is 0.1 mm and mating pin length is 3.05 mm.
- Compatible with surface mount technology (SMT) applications.
- Suitable for use in electronic components, power connectors, and PCB header applications.
Product Description
Samtec FTSH-110-01-L-DV-P-TR Straight Surface Mount Pin Header is a high-quality electronic connector designed for wire-to-board applications. Featuring a 1.27 mm pitch and 20 contacts arranged in 2 rows, this connector is ideal for compact PCB header solutions requiring reliable connections. The housing is made from liquid crystal polymer, providing excellent mechanical strength and heat resistance.
The phosphor bronze contact material is plated with gold, ensuring superior conductivity and resistance to corrosion, enabling long-lasting performance. This pin header is unshrouded with a straight orientation, allowing flexible and straightforward PCB mounting using surface mount technology.
Rated to carry up to 3.4 A current, it supports operation in demanding environments with temperatures ranging from -55°C up to 125°C. The termination type is solder, with tail pins measuring 0.1 mm and mating pins measuring 3.05 mm in length, ensuring secure and stable electrical connections.
This product is suitable for a broad spectrum of industrial uses including electronics manufacturing, power connector assemblies, and PCB header configurations in telecommunications, computing, and instrumentation. Its design supports both vertical and horizontal row configurations if necessary.
Liquid crystal polymer housing ensures durability and heat resistance. Gold-plated phosphor bronze contacts deliver high conductivity and corrosion resistance. Straight, unshrouded design with 2 rows for versatile PCB applications.
Current rating of 3.4 A and operating temperature from -55°C to 125°C. Solder termination ensures reliable electrical connectivity. Tail pin length of 0.1 mm and mating pin length of 3.05 mm for secure connection. Ideal for electronic components, power connectors, industrial manufacturing, and PCB headers.
Supports surface mount technology for ease of assembly. Explore the comprehensive range of PCB Headers and connectors at EnvMart to find compatible components for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 3.4 A.
The pitch size of this pin header is 1.27 mm.
The housing is made from liquid crystal polymer, and the contacts are phosphor bronze plated with gold for corrosion resistance.
It operates between -55°C and 125°C.
This pin header features 20 contacts arranged in 2 rows.
It uses a solder termination type for secure electrical connections.
Yes, it is designed for compatibility with surface mount technology (SMT) applications.
The tail pin length is 0.1 mm, and the mating pin length is 3.05 mm.
The orientation of this model is straight and unshrouded.
It is suitable for electronic components, power connectors, and PCB header applications in various industries.
The country of origin for this pin header is India.
This model is part of a wire-to-board connector system.
