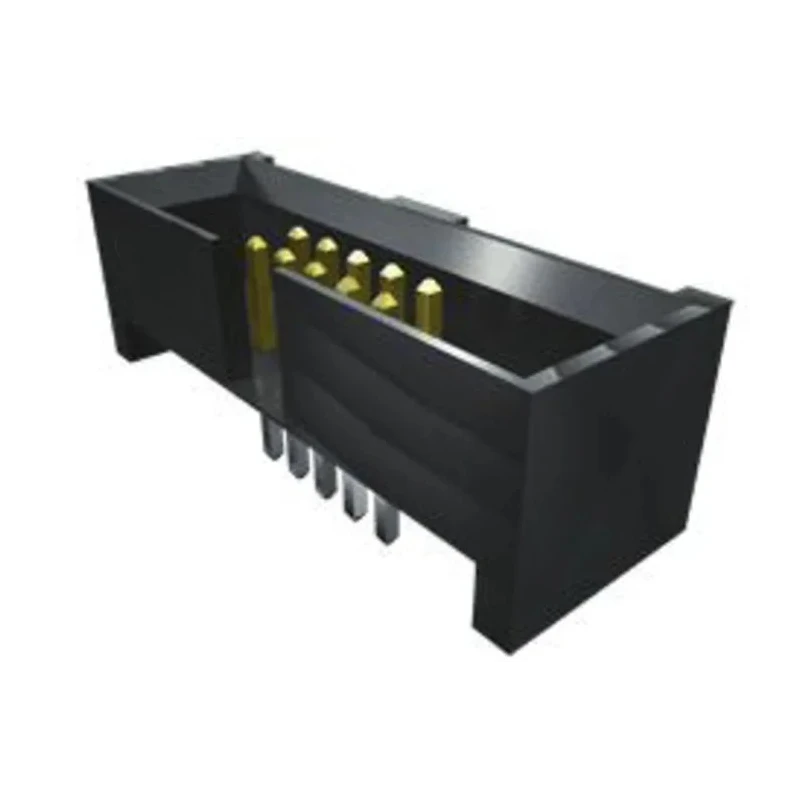

Samtec PCB Header Board-to-Board Connector 10 Contacts 1.27 mm Pitch 2 Row Shrouded Surface Mount ESHF-105-01-L-D-SM
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | ESHF-105-01-L-D-SM |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ESHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with high-quality phosphor bronze contacts for reliable conductivity.
- Housing made from durable liquid crystal polymer material ensuring high temperature resistance.
- Gold or tin plating on contacts to enhance corrosion resistance and signal integrity.
- Designed for surface mount applications with straight orientation and solder termination.
- Operates effectively in extreme temperatures from -55°C up to 125°C.
- Shrouded design provides polarization notch, ensuring correct mating with corresponding connectors.
- Compatible with FFSD/FFTP connectors featuring strain relief.
- Ideal for use in electronics manufacturing, industrial automation, and PCB assembly applications.
Product Description
Samtec ESHF-105-01-L-D-SM is a premium PCB header connector designed for board-to-board connectivity, featuring 10 male contacts arranged in 2 rows with a 1.27 mm pitch. The connector employs a shrouded housing made from advanced liquid crystal polymer, offering excellent durability and thermal stability.
Its phosphor bronze contacts are plated with gold or tin to deliver superior electrical performance and corrosion resistance. Suitable for surface mount technology applications, it utilizes a straight orientation and solder termination type for secure mounting on PCBs.
Operating temperature ranges from -55°C to 125°C make it highly reliable in harsh industrial environments. The shrouded design includes a polarization notch that ensures correct mating orientation, reducing assembly errors.
This connector series supports common pin counts ranging from 3 to 25 and mates seamlessly with FFSD or FFTP connectors equipped with strain relief. It is extensively used in electronic components manufacturing, industrial control equipment, and advanced PCB module assembly tasks where precise, reliable connections are critical.
Constructed with phosphor bronze contacts for electrical reliability. Housing material is durable liquid crystal polymer offering heat resistance. Gold or tin contact plating enhances connectivity and longevity. Shrouded and polarized to prevent misalignment during board mating.
Designed for surface mount, straight orientation, solder termination. Wide operating temperature from -55°C to 125°C for industrial use. Compatible with complementary connectors having strain relief. Facilitates board-to-board connection in electronics and industrial applications.
Ideal for use in sectors including electronics manufacturing, industrial automation, and precision instrumentation, this Samtec PCB header ensures robust and secure electrical connections. Explore more precise connectors and components in the electronics components category on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header connector is 1.27 mm.
This model can operate at a maximum temperature of 125°C.
The connector features 10 male contacts arranged in 2 rows.
The housing is constructed from liquid crystal polymer, which offers high durability and thermal stability.
It utilizes a solder termination type for secure mounting on PCBs.
Yes, it is compatible with FFSD and FFTP connectors that feature strain relief.
The orientation of this PCB header is straight.
The minimum operating temperature for this model is -55°C.
This connector is designed for use in electronics manufacturing, industrial automation, and PCB assembly applications.
The contacts are made of phosphor bronze, which enhances electrical performance and corrosion resistance.
The contacts can be plated with either gold or tin to improve connectivity and longevity.
This model belongs to the board-to-board connector system.
