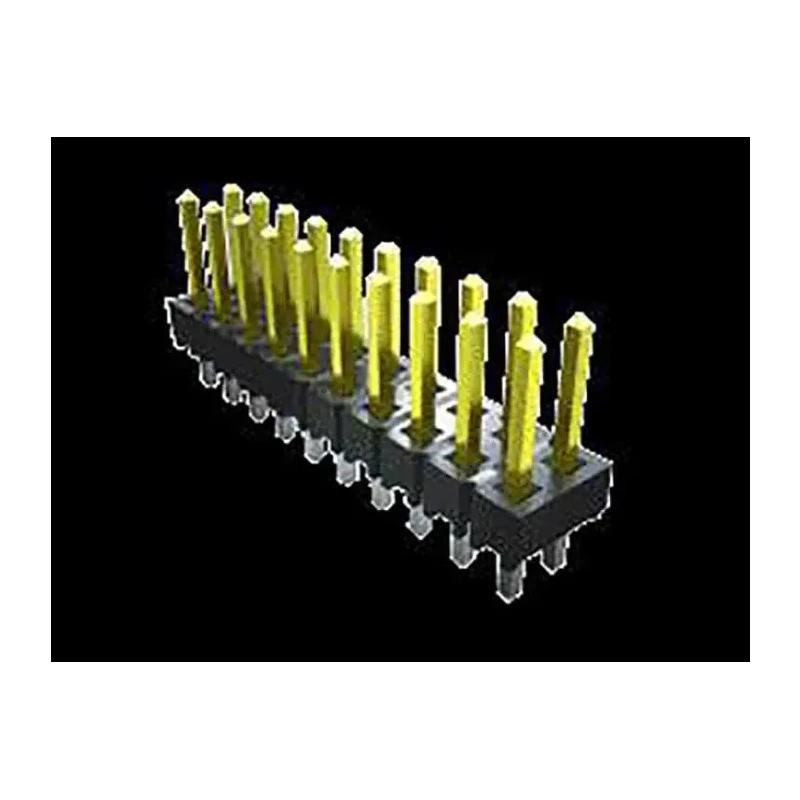

Samtec TSW Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 2 Row Unshrouded TSW-110-08-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.3A |
| Model | TSW-110-08-G-D |
| Mount Type | Through Hole |
| Special Features | Many options for optimizing cost and performance with platings and ruggedizing features |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 5.08mm |
| Mating Pin Length | 5.84mm |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Constructed with Polybutylene Terephthalate housing for durability and performance.
- Phosphor Bronze contacts plated with gold ensure reliable conductivity.
- Rated for 4.3A current and 550V voltage for robust electrical performance.
- Operates reliably within -55°C to 125°C temperature range.
- Designed with 5.08 mm tail pin length and 5.84 mm mating pin length for secure connections.
- Unshrouded design allows easy board-to-board connections.
- Precisely spaced 2.54 mm pitch and 2 rows for versatile PCB applications.
- Suitable for industrial electronics, power connectors, and electronic assembly.
Product Description
Samtec TSW-110-08-G-D is a premium pin header from the TSW series, featuring 20 male contacts arranged in 2 rows with a pitch of 2.54 mm. This connector is designed for straight, through-hole mounting on printed circuit boards and is unshrouded to allow flexible board-to-board connections. The housing is made of Polybutylene Terephthalate, offering excellent durability and resistance in demanding environments.
The contacts are manufactured from phosphor bronze and plated with gold, ensuring reliable electrical conductivity and corrosion resistance. It supports a current of 4.3A and voltage up to 550V. The operating temperature range extends from -55°C to 125°C, making it suitable for a wide range of industrial and electronic applications.
The connector features a 5.08 mm tail pin length and a mating pin length of 5.84 mm, optimized for secure soldered connections. With its precise 2.54 mm pitch and two-row configuration, this pin header is ideal for electronic components, power connectors, and PCB assembly requiring high reliability and robust contact systems.
Constructed with Polybutylene Terephthalate housing for durability and performance. Phosphor Bronze contacts plated with gold ensure reliable conductivity. Rated for 4.3A current and 550V voltage for robust electrical performance.
Operates reliably within -55°C to 125°C temperature range. Designed with 5.08 mm tail pin length and 5.84 mm mating pin length for secure connections. Unshrouded design allows easy board-to-board connections. Precisely spaced 2.54 mm pitch and 2 rows for versatile PCB applications.
Suitable for industrial electronics, power connectors, and electronic assembly.
Applications include use in various industrial electronics, power connection systems, and PCB interconnection tasks where precision and performance are critical. This pin header supports reliable solder termination in through-hole mountings and facilitates efficient assembly in electronic manufacturing environments.
Explore the full range of PCB Headers and connectors on EnvMart for advanced electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this pin header is 550V.
This model is rated for a current of 4.3A.
It operates reliably within a temperature range of -55°C to 125°C.
The contacts are spaced at a pitch of 2.54 mm.
This pin header features 20 male contacts arranged in 2 rows.
The housing is made of Polybutylene Terephthalate, and the contacts are made from phosphor bronze plated with gold.
It uses through-hole mounting for installation on printed circuit boards.
The tail pin length is 5.08 mm.
This connector supports solder termination for secure connections.
This model is unshrouded, allowing for flexible board-to-board connections.
It is suitable for industrial electronics, power connectors, and electronic assembly tasks.
The country of origin for this product is India.
