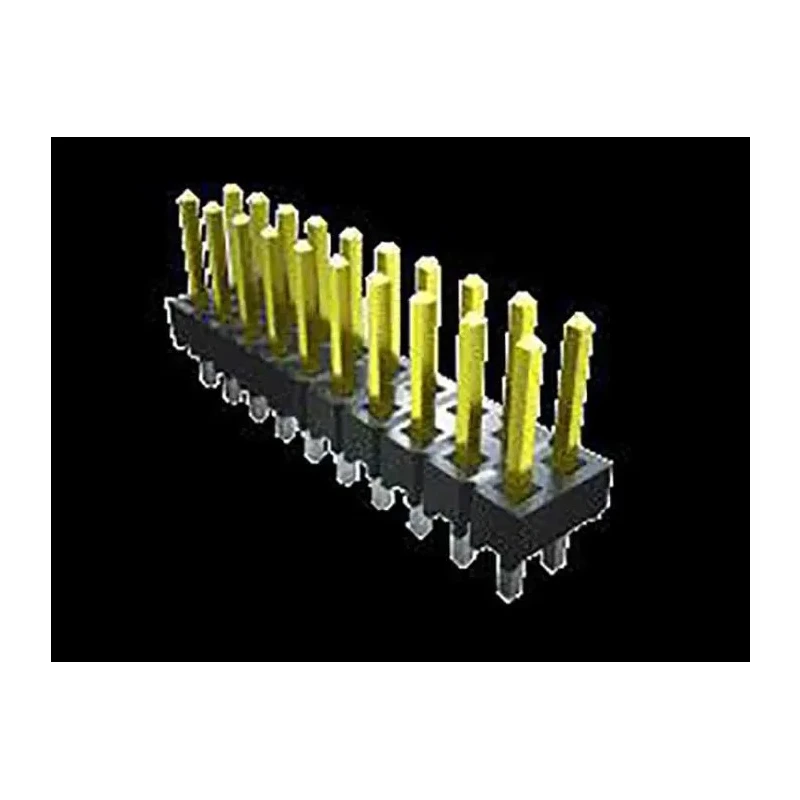

Samtec TSW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-110-14-G-D

Samtec TSW-110-14-G-D is a straight through hole pin header, part of the TSW series, featuring 20 male contacts distributed over 2 rows with a 2.54 mm pitch. This connector is designed for board-to-board applications, offering stable and secure connectivity in electronic assemblies.

The housing is made from polybutylene terephthalate, providing excellent electrical insulation and mechanical strength. The contacts are formed from phosphor bronze and plated with gold to ensure high conductivity and long-term corrosion resistance, which is critical in demanding industrial, laboratory, HVAC, and manufacturing environments.

This pin header supports a current rating of 4.3 amperes and can operate safely at voltages up to 550 volts. It functions in temperatures ranging from -55°C to 125°C, making it suitable for a broad range of environmental conditions.

The connector’s termination type is solder through-hole, allowing for reliable PCB mounting. The tail pin length is 2.79 mm, while the mating pin length extends to 8.13 mm, ensuring secure engagement with complementary connectors. This unshrouded connector design facilitates ease of access during assembly and inspection.

Special features include multiple plating and ruggedizing options to optimize cost and performance according to the specific application requirements. The design suits versatile electronics manufacturing, including power connectors, communication assemblies, and control system installations.

Features 20 male contacts arranged in 2 rows. Pitch of 2.54 mm supports standard PCB layouts. Polybutylene terephthalate housing for durability. Gold-plated phosphor bronze contacts for conductivity. Supports 4.3 A current and 550 V voltage rating.

Operating temperature range from -55°C to 125°C. Unshrouded, straight orientation facilitates easy inspection. Through-hole solder termination ensures mechanical stability. Contact system is 0.025" (0.635 mm) square post for reliable mating.

This Samtec TSW pin header is ideally used across industrial, electronic manufacturing, laboratory instrumentation, and HVAC control systems demanding dependable and rugged electronic connections. Explore more electronic components and connectors in the EnvMart catalogue for comprehensive PCB interconnection solutions.
