TDK 680 pF Multilayer Ceramic Capacitor 450V DC ±5% Tolerance Surface Mount CGA4C4C0G2W681J060AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 680 pF Multilayer Ceramic Capacitor 450V DC ±5% Tolerance Surface Mount CGA4C4C0G2W681J060AA



Category MLCCs - Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	450V dc
Brand	TDK
Height	0.6mm
Length	2mm
Model	CGA4C4C0G2W681J060AA
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	680pF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Features high capacitance with precise multilayer ceramic construction.
Tolerance of ±5% ensures stable performance.
Surface mount type with 0805 package size for compact design.
Dielectric material is C0G, providing excellent frequency characteristics.
Automotive grade compliant with AEC-Q200 standard.
Operates between -55°C to 125°C for wide temperature range usage.
Ideal for decoupling, smoothing, and snubber circuits in inverters and DC-DC converters.
Uses tape and reel packaging for automated assembly.

Product Description

TDK CGA4C4C0G2W681J060AA Multilayer Ceramic Capacitor is a precision electronic component with a capacitance of 680 pF and a voltage rating of 450 volts DC. Designed for surface mount applications, this capacitor utilizes C0G dielectric material, ensuring excellent frequency response, low dielectric losses, and stability. It features a ±5% tolerance and complies with the automotive standard AEC-Q200, making it versatile for automotive and industrial electronics.

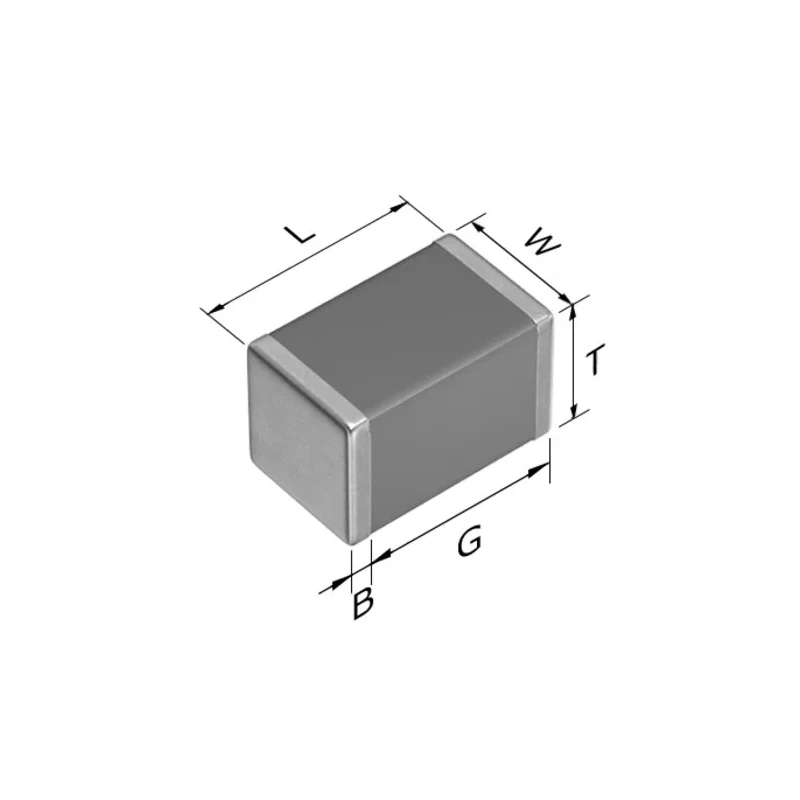

This capacitor package is designated as 0805 with dimensions of 2 mm length, 1.25 mm width, and 0.6 mm height, providing space-efficient solutions for circuit board layouts. Its operating temperature range from -55°C to 125°C allows application in harsh environments typical of automotive and industrial sectors.

The TDK CGA series capacitor is engineered for use in decoupling, smoothing, and snubber circuits found in inverters and DC-DC converters within Hybrid Electric Vehicles (HEVs) and Electric Vehicles (EVs). The low residual inductance and Class I suppression class offer superior frequency characteristics essential for noise reduction and voltage surge protection in connectors and sensitive electronics.

Packaged on tape and reel with 4000 units per reel, this capacitor supports automated assembly processes. It is suitable for industrial, automotive, laboratory, and manufacturing applications where precision and stability are critical.

High capacitance with precision multilayer ceramic dielectric. Rated 450V DC voltage with ±5% tolerance. C0G dielectric ensures low loss and temperature stability. Automotive standard AEC-Q200 certified for quality assurance.

Compact 0805 surface mount package size. Wide operating temperature from -55°C to 125°C. Class I suppression class for noise and surge protection. Applications include power electronics decoupling and noise suppression. Tape and reel packaging suitable for automated manufacturing.

Physical dimensions support compact PCB designs. Discover more high-quality capacitors and electronic components by browsing the MLCCs category at EnvMart for reliable industrial and automotive electronics solutions.
