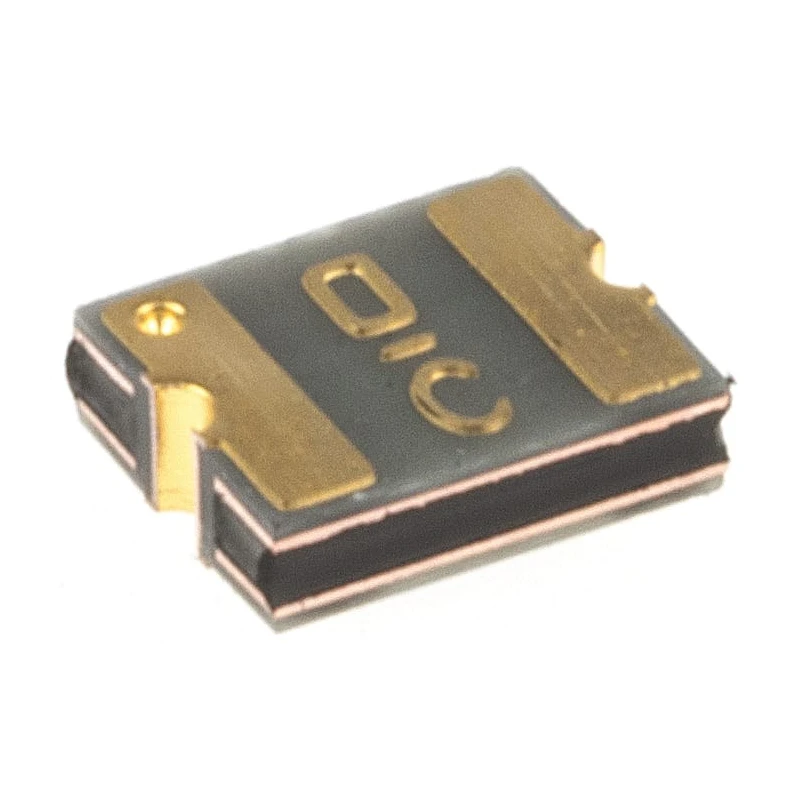

Bourns 6V Resettable Fuse Surface Mount 1.1A Hold Current 40A Rating MF-USMF110-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 3.43mm |
| Model | MF-USMF110-2 |
| Width | 2.8mm |
| Current Rating | 40A |
| Series | MF-USMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1210 |
| Trip Current | 2.2A |
| Power Dissipation | 0.6W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | RoHS, UL |
| Time to Trip | 1s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.05Ω |
| Maximum Resistance | 210mΩ |
Key Features
- Provides fast tripping resettable circuit protection for electrical and electronic circuits.
- Surface mount technology enables automated assembly with a compact 1210 package size.
- Features electroless nickel immersion gold-plated terminals for reliable connections.
- Operates safely between -40°C and 85°C with power dissipation of 0.6W.
- Maintenance-free automatic reset for thousands of cycles without the need for fuseholders.
- Ideal for applications including security systems, power supplies, automotive, medical equipment, and telecommunications.
- Low resistance during normal operation, switching to high resistance during fault conditions to protect circuits.
- Complies with RoHS and UL standards ensuring environmental and safety compliance.
Product Description
Bourns MF-USMF110-2 is a high-performance resettable fuse designed to provide fast tripping circuit protection. Operating at 6 volts with a hold current of 1.1 amperes and a maximum current rating of 40 amperes, this surface mount device comes in a 1210 package suitable for automated assembly lines.
The fuse rapidly transitions from a low resistance state to a high resistance state under electrical overload or short circuit conditions, effectively protecting sensitive electronic components. It automatically resets and returns to a low resistance state when the fault condition is removed and power is cycled. This maintenance-free functionality supports thousands of reset cycles without replacement.
Its terminals feature electroless nickel immersion gold plating, providing enhanced conductivity and corrosion resistance. The fuse operates reliably within a temperature range of -40°C to 85°C and dissipates 0.6 watts power during operation.
The resettable fuse is ideally suited for use in industrial and commercial applications such as security systems, power supplies, transformers, automotive and medical equipment, instrumentation, control systems, computers, peripherals, audio visual systems, and telecommunications equipment. The compact form factor minimizes board space requirements.
Fast tripping circuit protection for overcurrent conditions. Compact surface mount 1210 package for automated PCB assembly. Electroless nickel immersion gold plating for durable terminals. Operating temperature range from -40°C to 85°C with 0.6W power dissipation.
Maintenance-free automatic reset capable of thousands of cycles. Meets RoHS and UL safety and environmental standards. Suitable for industrial, medical, automotive, and communication applications. Low resistance during normal operation switching to high resistance during faults.
Explore similar Resettable Fuses on EnvMart for a broad selection of circuit protection components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current of the Bourns MF-USMF110-2 resettable fuse is 1.1 amperes.
This model has a maximum current rating of 40 amperes.
It operates reliably within a temperature range of -40°C to 85°C.
The package size of this resettable fuse is 1210.
During fault conditions, it switches from a low resistance state to a high resistance state, effectively protecting sensitive electronic components.
The power dissipation during operation is 0.6 watts.
The terminals feature electroless nickel immersion gold plating for enhanced conductivity and corrosion resistance.
The time to trip under overload conditions is approximately 1 second.
It complies with RoHS and UL standards, ensuring environmental and safety compliance.
The dimensions are 3.43mm in length, 2.8mm in width, and 0.85mm in height.
It is suitable for applications including security systems, power supplies, automotive, medical equipment, and telecommunications.
Yes, it features maintenance-free automatic reset functionality, capable of thousands of reset cycles without replacement.
