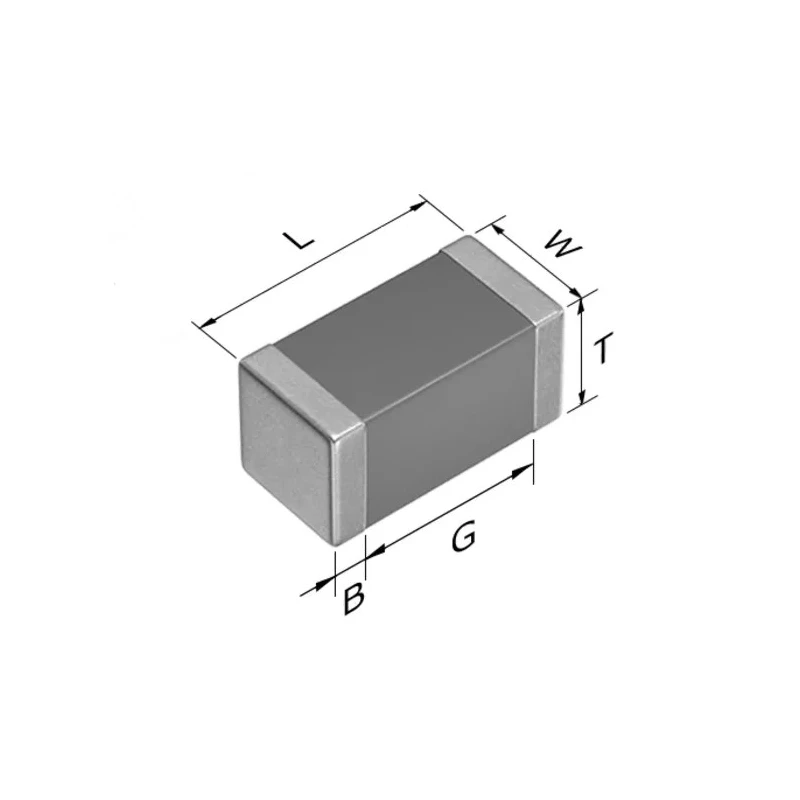

TDK 47 pF 100V dc ±5 % Multilayer Ceramic Capacitor Surface Mount CGA3E2NP02A470J080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 47 pF 100V dc ±5 % Multilayer Ceramic Capacitor Surface Mount CGA3E2NP02A470J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2NP02A470J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	47pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Rated for 100V direct current with stable C0G dielectric.
Capacitance of 47 pF ensures precise electronic functionality.

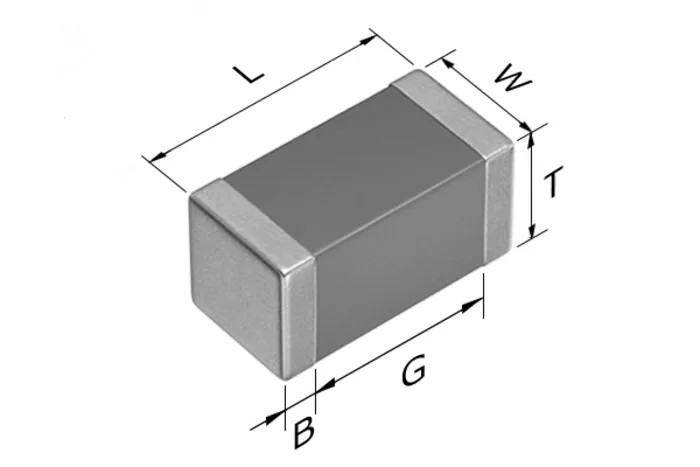

Compact 0603 package with 1.6mm length and 0.8mm width and height.
Automotive grade AEC-Q200 standard for high-temperature applications.
Operating temperature range from −55°C to 150°C.
Surface mount termination type suitable for automated PCB assembly.
Class I suppression class with minimal capacitance change within ±15 % up to max temperature.
Ideal for automotive engine rooms, sensor modules, smoothing and decoupling circuits.

Product Description

TDK CGA3E2NP02A470J080AA is a high-quality Multilayer Ceramic Capacitor designed for surface mount applications. It features a capacitance of 47 pF and is rated for 100V dc operation with ±5 % tolerance, ensuring accuracy and stability in electronic circuits.

The capacitor has a compact 0603 package size, measuring 1.6mm in length, 0.8mm in width, and 0.8mm in height, which suits space-constrained PCB designs. Utilizing the C0G dielectric, this capacitor offers excellent DC bias properties and minimal capacitance change with temperature variations, classified under Class I suppression.

Certified to the AEC-Q200 automotive standard, it supports demanding environments such as automotive engine compartments and high-temperature peripheral circuits involving IGDT, SiC, and GaN devices.

Its termination is surface mount type, allowing efficient automated assembly on printed circuit boards. The operating temperature range spans from −55°C minimum to a maximum of 150°C, enabling reliable performance in harsh conditions.

Common applications include automotive electronics, sensor modules, smoothing, and decoupling in power supply and signal circuits, particularly where high temperature stability is critical.

Rated voltage: 100V dc with ±5 % tolerance. C0G dielectric for stable frequency response. Compliance with automotive AEC-Q200 quality standards. Compact 0603 (1.6mm x 0.8mm x 0.8mm) package dimensions. High-temperature endurance up to 150°C.

Surface mountable termination method. Suitable for automotive and industrial high-temperature electronic applications. Packaging supplied in tape and reel format for automated pick and place. Explore more capacitors and electronic components for precision and reliability at EnvMart.
