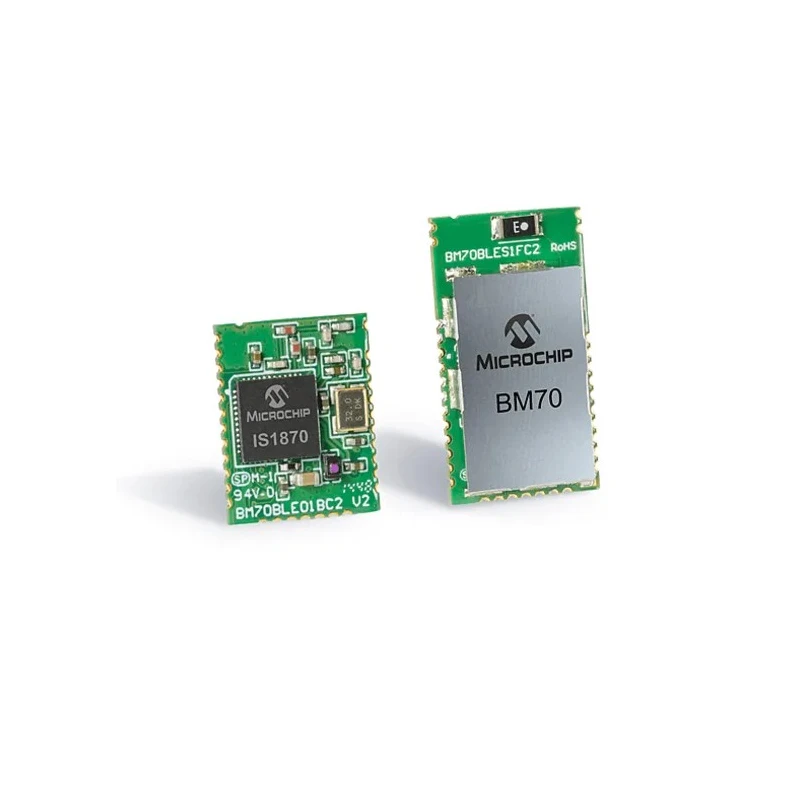

Microchip Bluetooth Module 5.0 UART Interface Class 1 BM70BLE01FC2-0B05BA

Microchip BM70BLE01FC2-0B05BA Bluetooth Module 5.0 is a high-performance low energy wireless communication module designed for seamless integration into diverse electronic applications. Supporting Bluetooth version 5.0, it delivers up to 2.5 times improved throughput and enhanced security compared to Bluetooth 4.1 based designs. The module operates as a Class 1 device, offering longer communication range and reliable connectivity.

The BM70 module interfaces via a UART protocol, standard across many microcontrollers and processors, easing development and integration efforts. It operates within a voltage supply span of 1.9 V to 3.6 V, suitable for battery-powered and embedded systems. The receiver sensitivity of -90 dBm ensures excellent signal reception even in challenging RF environments.

Measuring only 15 mm in length, 12 mm in width, and 1.6 mm in height, this compact module includes a fully integrated Bluetooth software stack and a shielded design with a built-in antenna, minimizing RF design complexity and regulatory compliance efforts. It supports transparent UART data service, streamlining data communication in custom applications.

Operating across a wide temperature range from -40°C to 85°C, the BM70 module is robust enough for industrial, commercial, and IoT deployments. Its capabilities enable connectivity with BLE-enabled smartphones or Bluetooth Internet gateways, facilitating remote monitoring, control, and firmware updates.

Operates on Bluetooth version 5.0 with enhanced throughput and security. Supports UART interface compatible with most microcontrollers and processors. Maximum output power of 0 dBm for effective transmission. Receiver sensitivity rated at -90 dBm ensuring reliable reception.

Voltage supply range from 1.9 V to 3.6 V for flexibility in powering options. Wide operating temperature range from -40°C to 85°C. Compact footprint measuring 15 mm x 12 mm x 1.6 mm. Comes with integrated Bluetooth software stack and built-in antenna for simplified integration.

Suitable for Industrial, IoT, Smart Home, and Consumer Electronics applications. Supported by Microchip Bluetooth Data (MBD) mobile application for easy device management.

This Bluetooth module is ideal for designers and developers looking to add BLE connectivity with secure, low-power, and robust features into embedded and IoT projects. Explore the Bluetooth Modules category on EnvMart for more solutions from Microchip and other leading brands.
