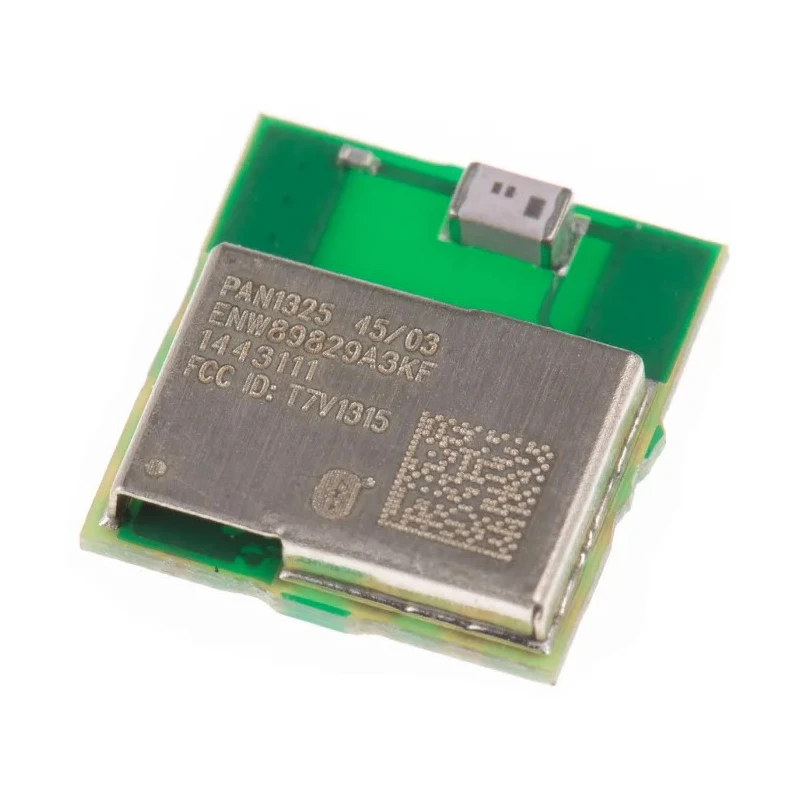

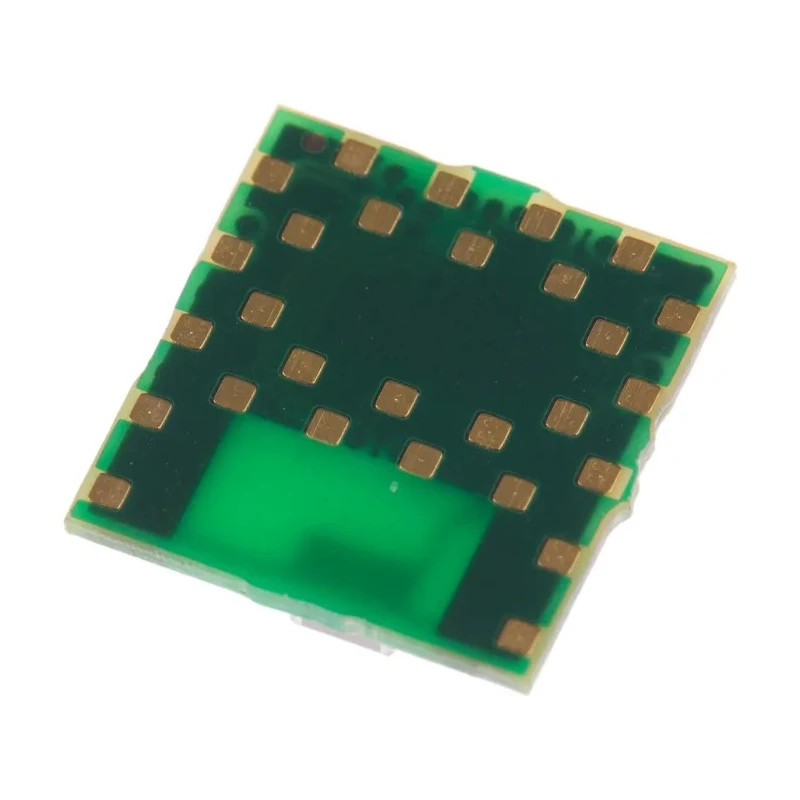

Panasonic Bluetooth Chip 2.1 Host Controlled Interface Module PAN1325B-HCI-85

Panasonic PAN1325B-HCI-85 Bluetooth Chip 2.1 is a state-of-the-art Host Controlled Interface Bluetooth module designed for advanced wireless communication in industrial, commercial, and consumer electronics. This module uses the Texas Instruments CC2560 7th generation Bluetooth core, providing Enhanced Data Rate (EDR) and supports Bluetooth version 2.1.

With a compact footprint measuring 9.5mm in length, 9mm in width, and 1.8mm in height, it integrates seamlessly into compact devices where space is critical. It operates across a versatile supply voltage range of 1.7 to 4.8 volts and withstands operating temperatures ranging from -20°C up to +70°C, making it suitable for a wide range of demanding temperature environments encountered in industrial applications.

This module supports multiple interface types including HCI UART with 3-wire and 4-wire options, as well as I2S and PCM interfaces that facilitate digital audio streaming. Bluetooth communication protocols such as the Serial Port Profile (SPP), Health Device Profile (HDP), and various audio profiles are supported, enabling diverse connectivity use cases.

Equipped with a maximum output power of 4 dBm and a data rate of 2178 kbps, the PAN1325B-HCI-85 delivers reliable wireless performance with a receiver sensitivity of -93 dBm on the 2.48 GHz frequency band. Its design includes WLAN coexistence interface and general-purpose I/O with interrupt capabilities, facilitating integration into complex electronic systems.

The module meets regulatory standards including FCC, IC, and CE compliance, ensuring it adheres to rigorous quality and safety requirements.

Typical applications for this Bluetooth chip include industrial automation, healthcare devices, consumer audio equipment, and wireless data transmission modules. Its low power consumption and extensive profile support make it ideal for embedded systems requiring wireless communication.

Supports Bluetooth Version 2.1 with Enhanced Data Rate (EDR) for faster data transmission. Operates within a frequency of 2.48GHz ensuring robust wireless connectivity. Equipped with HCI UART interface supporting 3 Wire, 4 Wire, I2S, and PCM communication protocols.

Wide supply voltage range from 1.7V to 4.8V allows flexible integration in various electronic systems. Operates efficiently in temperature range from -20°C to +70°C, suitable for industrial environments. Compact dimensions with module size of approximately 9.5mm length, 9mm width, and 1.8mm height.

Includes Texas Instruments CC2560 7th generation Bluetooth controller for optimized performance. Supports multiple profiles including Serial Port Profile (SPP), Health Device Profile (HDP), and Audio profiles. Features low power scan methods and extended range transmission capabilities with typical 10.5dBm output power.

Complies with FCC and IC listings and CE standards for regulatory conformity. Browse more Bluetooth Modules on EnvMart to discover advanced wireless communication solutions for various industrial and commercial needs.
