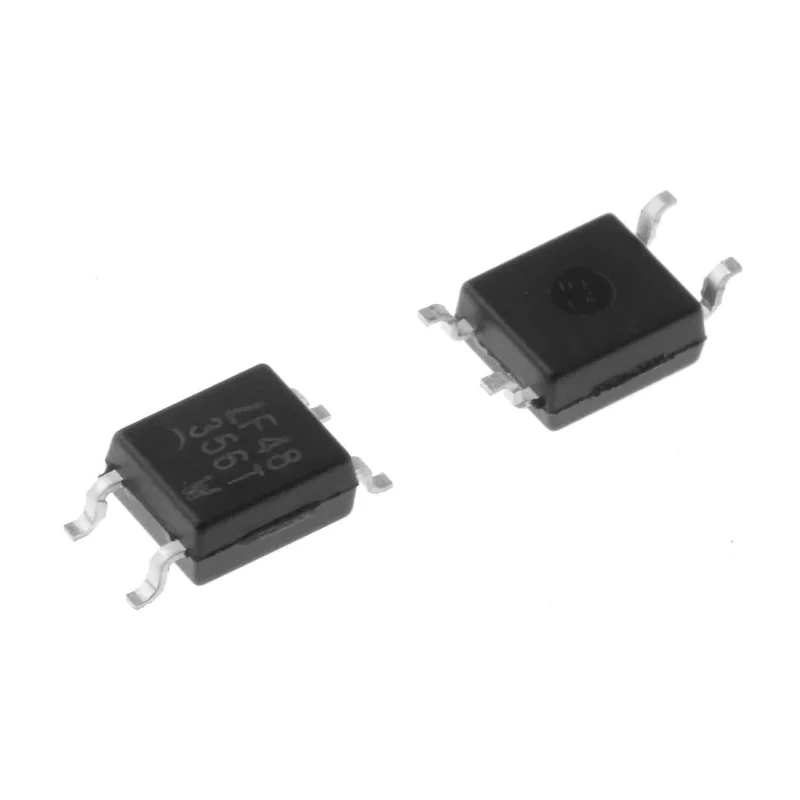

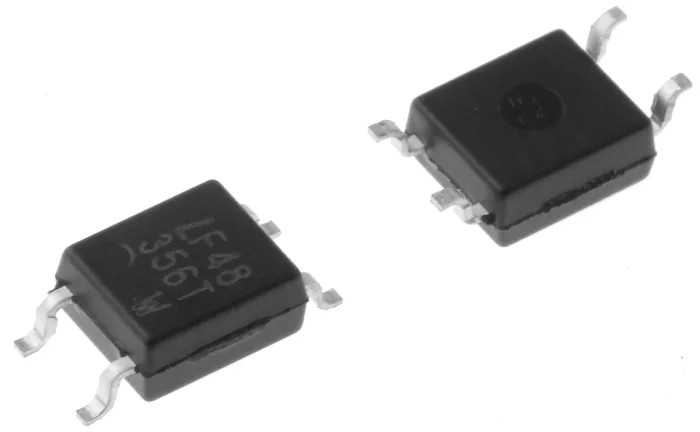

Lite-On DC Input Transistor Output Surface Mount 4-Pin Mini-Flat Optocoupler LTV-356T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | LTV-356T |
| Mount Type | Surface |
| Output type | Transistor |
| Series | LTV |
| Maximum Operating Temperature | 110°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, CSA |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 50% |
| Toshiba TLP385(BL,E(T DC Input Optocoupler, Surface, 4-Pin SOBrand | Toshiba |
Key Features
- Features a single channel transistor output ensuring efficient signal transfer.
- Designed for surface mount applications with compact 4-pin mini-flat package.
- Maximum forward voltage of 1.4V for stable input operation.
- Typical rise time of 4 microseconds and fall time of 3 microseconds for quick switching.
- Isolation voltage rated at 5kVrms providing excellent electrical isolation.
- Operating temperature range from -55°C to 110°C for versatile industrial use.
- Input DC current up to maximum 50mA allows flexible control input levels.
- Complies with UL and CSA standards ensuring quality and safety compliance.
Product Description
Lite-On LTV-356T DC Input Transistor Output Surface Mount 4-Pin Mini-Flat Optocoupler delivers robust electrical isolation and rapid switching performance tailored for electronic circuit protection and signal transmission.
This optocoupler features a single channel transistor output configuration housed in a compact surface mounting mini-flat 4-pin package, suitable for high-density PCB layouts. The input forward voltage peaks at 1.4 volts, and it supports DC input currents up to 50 milliamps, making it efficient for low power triggering circuits.
The device ensures fast switching capabilities with typical rise and fall times of 4 μs and 3 μs, respectively, optimizing data throughput and response time in control systems. With an isolation voltage of 5kVrms, it provides durable isolation between input and output sides to protect sensitive electronics from high voltages.
Operating safely across an extended temperature range from -55°C to 110°C, the LTV-356T optocoupler is ideal for use in industrial automation, telecommunications, instrumentation, and power supply applications. It meets UL and CSA approvals offering compliance assurance for critical industrial deployments.
Single-channel transistor output with surface mount 4-pin mini-flat package. Maximum forward voltage of 1.4 V and maximum input current of 50 mA. Typical rise time 4 μs and fall time 3 μs ensuring fast switching. Isolation voltage rated at 5 kVrms for electrical safety.
Wide operating temperature from -55°C to 110°C for diverse environments. Complies with UL and CSA standards for quality and safety. Provides reliable signal isolation in electronic circuits and power supplies. Suitable for industrial, laboratory, and telecommunication applications.
Compact miniature surface mount footprint enables space-saving PCB design. Explore the full range of Lite-On Optocouplers in the Electronics & Electricals category for versatile electronic isolation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the LTV-356T is 110°C.
It has an isolation voltage rated at 5kVrms, providing excellent electrical isolation.
The typical rise time is 4 microseconds and the fall time is 3 microseconds, ensuring quick switching performance.
The maximum input current for the LTV-356T is 50mA, allowing flexible control input levels.
This model features a single channel transistor output configuration.
The maximum forward voltage for this optocoupler is 1.4V, which is necessary for stable input operation.
It comes in a compact mini-flat 4-pin package designed for surface mount applications.
This optocoupler complies with UL and CSA standards, ensuring quality and safety compliance.
The operating temperature range is from -55°C to 110°C, making it suitable for diverse environments.
The LTV-356T has a single channel output.
It is suitable for use in industrial automation, telecommunications, instrumentation, and power supply applications.
The minimum current transfer ratio is 50%, ensuring efficient signal transfer.
