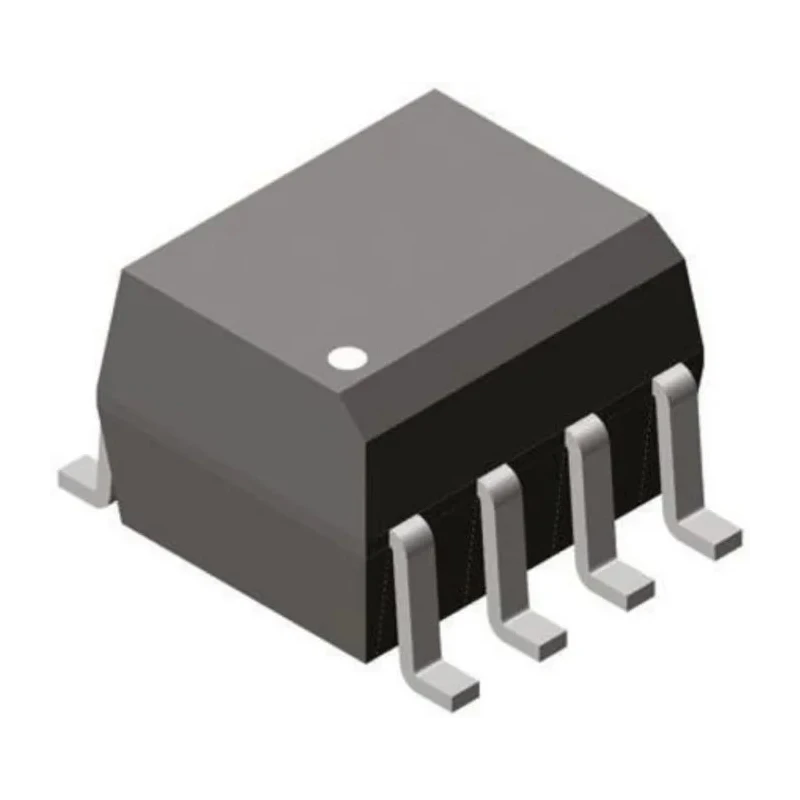

Vishay DC Input Surface Mount 8-Pin SOIC Optocoupler IL207AT

Vishay IL207AT is a high-performance DC input optocoupler from the IL207 series featuring an 8-pin SOIC surface mount package. It offers robust electrical isolation with an isolation voltage of 4000V AC, ensuring safe and effective signal transfer between circuits.

This optocoupler is designed for single-channel operation with a maximum forward voltage of 1.5V and a maximum input current rating of 60mA. It supports a broad operating temperature range from -55°C to 100°C, making it suitable for use in industrial, automotive, and commercial electronic applications requiring reliable signal isolation under varying environmental conditions.

The device achieves a minimum current transfer ratio of 100% and a maximum of 200%, providing efficient signal amplification across the isolation barrier. Compliance with UL, EN, and CSA standards confirms its suitability for safety-critical electronic designs.

Its SOIC 8-pin surface mount package facilitates compact and automated PCB assembly, ideal for modern electronics manufacturing. Typical applications include industrial control systems, power supply feedback, and microprocessor system interface isolation.

Maximum forward voltage: 1.5V. Maximum input current: 60mA DC. Isolation voltage: 4000V AC for secure signal transfer. Operating temperature: -55 to 100°C. Current transfer ratio: 100% minimum, 200% maximum. Single channel configuration.

UL, EN, CSA certified.

This Vishay optocoupler is an essential component in electrical isolation applications, enhancing system safety and signal integrity in electronics manufacturing, industrial controls, HVAC systems, and automation equipment.
