| Country of Origin | China |
|---|---|
| Voltage | 100V dc |
| Brand | TDK |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | CGA3E2C0G2A332J080AA |
| Packaging | Tape & Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 3.3nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class I |

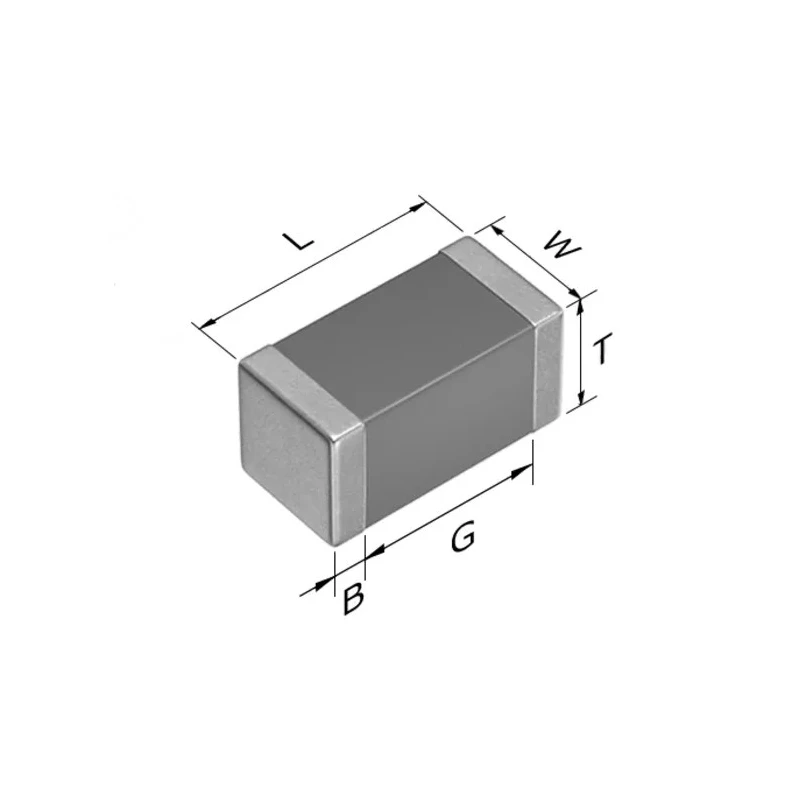

TDK CGA3E2C0G2A332J080AA is a Multilayer Ceramic Capacitor rated at 3.3 nF capacitance with a voltage rating of 100V dc and a tolerance of ±5 %. This surface mount device uses a C0G dielectric material known for its stable capacitance over a wide temperature range and low electrical losses.
The capacitor comes in a 0603 package with precise dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, making it suitable for compact electronic circuits. Its operating temperature spans from -55°C to 125°C, providing excellent performance even under harsh temperature cycles.
Engineered to meet the AEC-Q200 automotive standard, this capacitor is applicable for automotive electronics, industrial, and consumer electronic applications requiring reliable performance. The tape and reel packaging format supports high-volume automated PCB assembly processes.
Common uses include decoupling, smoothing, and snubber circuits in high-efficiency inverter systems and DC-DC converters, especially in hybrid and electric vehicles (HEVs and EVs). The low residual inductance enhances high-frequency operation, and the capacitor's excellent DC bias characteristics help maintain capacitance under voltage stress.
This capacitor utilizes a C0G dielectric for excellent stability and low loss characteristics. It features a surface mount package type 0603 suitable for compact electronics. Operational temperature range from -55°C to 125°C ensures reliability in demanding environments.
Tape and reel packaging allows efficient automated assembly. The capacitor meets automotive standard AEC-Q200, enhancing its suitability for automotive applications. Its compact dimensions facilitate integration in dense electronic assemblies.
Ideal for decoupling, smoothing, and snubber applications in power electronics. Explore more capacitors and related electronic components on EnvMart for reliable industrial and commercial electronic projects.
