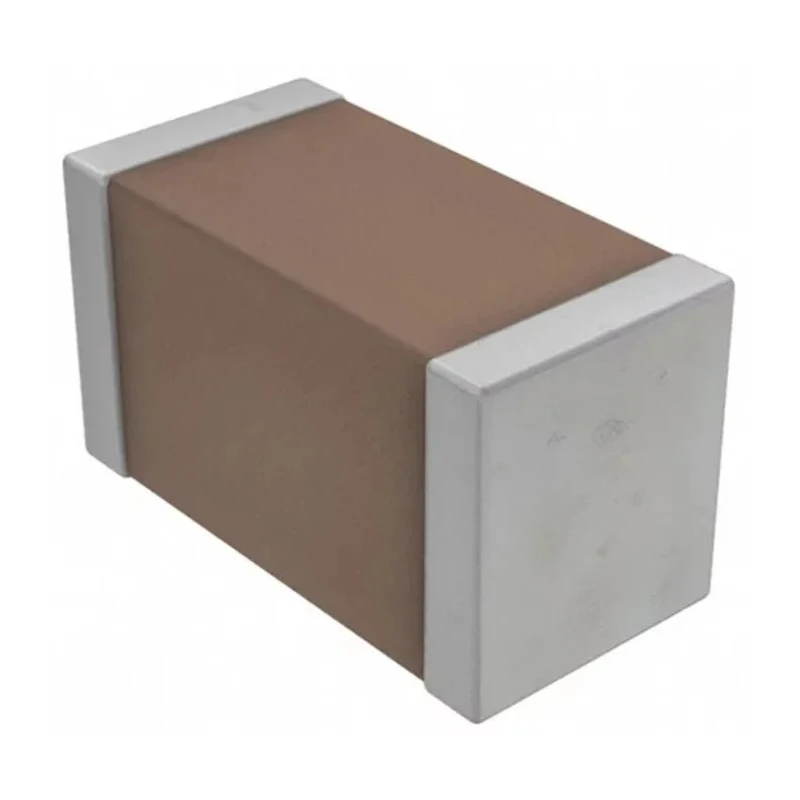

TDK 22 nF Multilayer Ceramic Capacitor, 50V dc, ±10 % Tolerance, Surface Mount, 0603 Case, CGA3E2X7R1H223K080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 22 nF Multilayer Ceramic Capacitor, 50V dc, ±10 % Tolerance, Surface Mount, 0603 Case, CGA3E2X7R1H223K080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2X7R1H223K080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200
Suppression Class	Class II

Key Features

This capacitor utilizes X7R dielectric suitable for automotive applications.
It is AEC-Q200 qualified ensuring high reliability and quality.
Features low equivalent series inductance and low stray capacitance for excellent frequency characteristics.
Operates over a temperature range from -55°C to 125°C, rated Class II suppression.
Packaged in tape and reel format for efficient automated mounting.
Compact dimensions of 1.6mm length, 0.8mm width, and 0.8mm height.
Constructed with solder termination type for durable connection.
Certified for automotive usage including battery line smoothing and sensor modules.

Product Description

TDK CGA3E2X7R1H223K080AA is a 22 nF multilayer ceramic capacitor designed for surface mounting with a voltage rating of 50V dc and a tolerance of ±10%. This 0603 case size component features an X7R dielectric material, providing stable capacitance over a wide temperature range from -55°C to 125°C, making it ideal for automotive and industrial electronic applications.

The capacitor is AEC-Q200 qualified, confirming its suitability for automotive electronics such as battery line smoothing, sensor modules, engine control units, anti-lock brake systems, and infotainment systems. Featuring low equivalent series inductance (ESL) and low stray capacitance, it offers excellent frequency response and reliability. The solder termination ensures robust and reliable PCB mounting.

Packaged in tape and reel format, this component facilitates automated high-accuracy assembly processes. Its compact dimensions of 1.6mm length, 0.8mm width, and 0.8mm height enable space-saving layouts in dense electronic circuits. Applications extend to automotive, smart meters, smart grids, solar inverters, and AC-DC battery chargers, emphasizing its versatility and performance.

22 nF capacitance with X7R dielectric for temperature stability. Rated 50V dc voltage with ±10% capacitance tolerance. AEC-Q200 automotive standard qualified for dependable use. Compact 0603 surface mount package, dimensions 1.6x0.8x0.8 mm.

Low ESL and stray capacitance ensure excellent frequency characteristics. Operational temperature from -55°C to 125°C with Class II suppression. Packaged on tape and reel for automated assembly.

This TDK multilayer ceramic capacitor combines precision manufacturing and automotive-grade quality, making it suitable for demanding industrial, automotive, and electronics manufacturing environments. Explore the diverse range of TDK Multilayer Ceramic Capacitors and other electronic components on EnvMart for your design and production needs.
