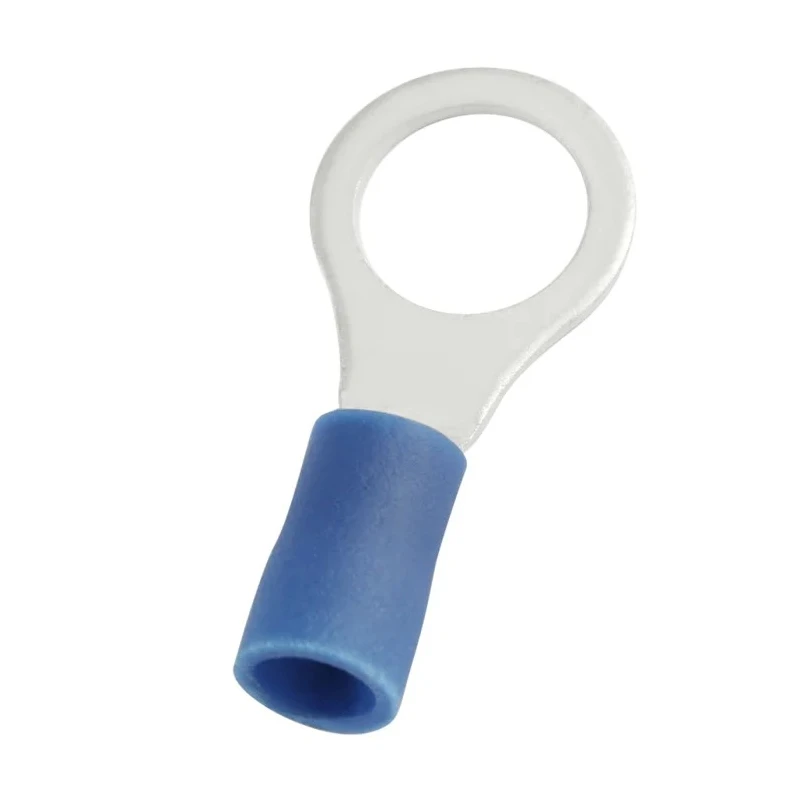

RS PRO Insulated Ring Terminal 8.4 mm Stud Size 16 AWG 14 AWG Wire Size Blue 178-8663
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.8mm |
| Model | 178-8663 |
| Insulation | Insulated |
| Overall Length | 26.8mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 12mm |
| Inner Ring Diameter | 8.4mm |
| Stud Size | 8.4 mm |
Key Features
- Constructed with high quality copper contact material for reliable conductivity.
- Vinyl insulation material protects against electrical shorts and corrosion.
- Outer ring diameter measures 12 mm with an inner ring diameter of 8.4 mm.
- Overall length of the terminal is 26.8 mm with a thickness of 0.8 mm.
- Suitable for wire sizes from 16 AWG to 14 AWG, supporting up to 2.5 mm² cross-sectional area.
- Tin-plated contacts enhance durability and provide corrosion resistance.
- Operates effectively in temperatures ranging from -40°C to 105°C.
- Blue color coding enables easy identification of wire size compatibility.
Product Description
RS PRO 178-8663 insulated ring terminal is a precision-engineered electrical connector designed for secure and efficient wire termination. Featuring an 8.4 mm stud size and a blue vinyl insulation, this ring terminal supports wire sizes ranging from 16 AWG to 14 AWG, making it suitable for various electrical wiring applications in industrial, commercial, and residential environments.
Manufactured using high quality copper contact material with tin plating, the terminal ensures excellent electrical conductivity and resistance to corrosion. The vinyl insulation provides effective protection against electrical shorts and environmental factors. The outer ring diameter is 12 mm, while the inner ring diameter is 8.4 mm, offering optimal fit and reliable connection.
The terminal's overall length is 26.8 mm with a thickness of 0.8 mm, designed to maintain mechanical strength and ease of installation. It supports wire cross-sectional areas up to 2.5 mm² and can operate safely within a temperature range of -40°C to 105°C. The blue color coding aids in quick wire gauge identification during installation and maintenance.
High quality copper with tin plating for durable contacts. Blue vinyl insulation for electrical and mechanical protection. 8.4 mm stud size for standard fastening compatibility. Supports 16 AWG to 14 AWG wire sizes, up to 2.5 mm².
Operates in temperatures ranging from -40°C to 105°C. Compact dimensions with a 26.8 mm overall length and 0.8 mm thickness.
This insulated Ring Terminal is ideal for electrical, electronic, automotive, and industrial applications where reliable wire connections and electrical safety are essential. The product is manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.
Explore more high-quality wire terminals and electrical components in our Electronics & Electrical category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal supports a maximum wire size of 14 AWG, which corresponds to a cross-sectional area of up to 2.5 mm².
The stud size of this model is 8.4 mm, making it compatible with standard fastening applications.
The terminal is constructed from high-quality copper contact material, which is tin-plated for enhanced durability and corrosion resistance, and features blue vinyl insulation for protection against electrical shorts.
The overall length of the terminal is 26.8 mm, with an outer ring diameter of 12 mm and an inner ring diameter of 8.4 mm. The thickness is 0.8 mm.
This insulated ring terminal can operate effectively in temperatures ranging from -40°C to 105°C.
It is suitable for wire sizes ranging from 16 AWG to 14 AWG, accommodating a minimum wire size of 1.5 mm² and a maximum of 2.5 mm².
The terminal features blue color coding, which helps in the quick identification of wire size compatibility during installation and maintenance.
This terminal is manufactured in Taiwan, Province Of China, ensuring adherence to quality standards.
The terminal is insulated with vinyl material, which provides protection against electrical shorts and environmental factors.
The contact material of this terminal is copper, which is tin-plated to enhance its durability and resistance to corrosion.
This model is suitable for various electrical wiring applications in industrial, commercial, and residential environments where reliable wire connections are essential.
The thickness of this terminal is 0.8 mm, designed to maintain mechanical strength and ease of installation.
