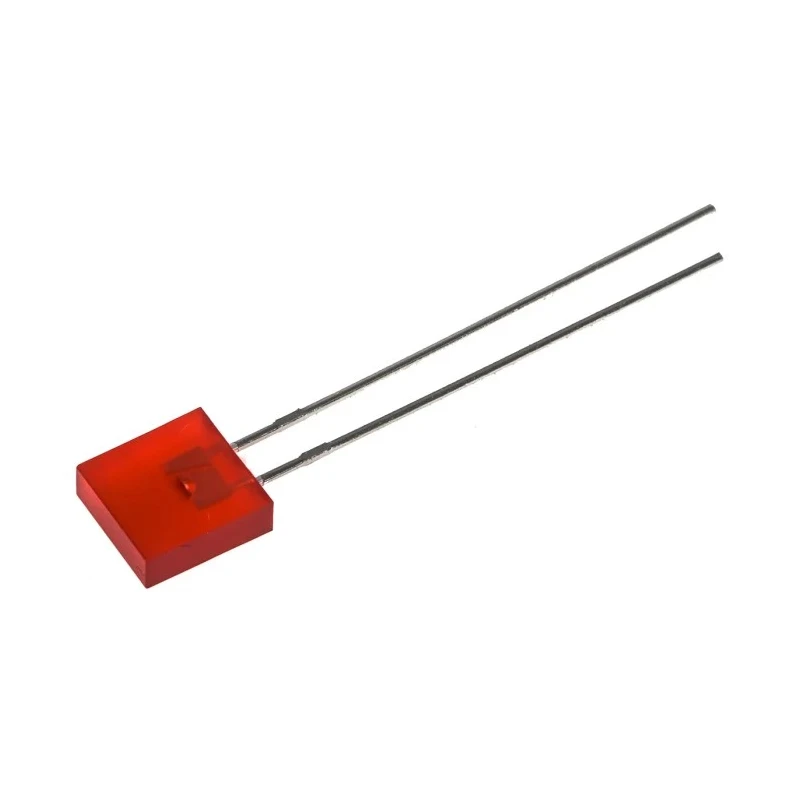

Broadcom Red Rectangular Through Hole LED 1.9 V, 90mA, 2-Pin HLMP-0301
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-0301 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 90mA |
| Viewing angle | 100 ° |
| Package Type | Rectangular |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 2.1 mcd |
| Maximum Power Dissipation | 135mW |
| Lens Dimensions | 2.5 x 7.6 x 8 mm |
| Lens Shape | Rectangular |
| Lens Finish | Tinted, Diffused |
| - Long life | solid state reliability |
| Kingbright 2.5 V Red LED Rectangular Through Hole L-153 L-153IDTBrand | Kingbright |
Key Features
- The LED features a rectangular light emitting surface suitable for flush panel indication.
- It is mounted using through hole technology with 2 pins for easy PCB integration.
- The lens is tinted and diffused, providing a flat high-intensity emitting surface.
- The LED has a viewing angle of 100 degrees for wide visibility.
- Designed for long life with solid-state reliability and low current requirements.
- Lens dimensions measure approximately 2.5 x 7.6 x 8 mm.
- The dominant wavelength is 626 nm corresponding to bright red light emission.
- Ideal for panel indicators, backlighting legends, and precise electronic component lighting.
Product Description
Broadcom HLMP-0301 is a high-efficiency red LED encapsulated in a rectangular through hole package, operating at a forward voltage of 1.9 V and maximum forward current of 90 mA. It features a 2-pin configuration suitable for through hole mounting on PCBs. The tinted, diffused epoxy lens provides a flat, high-intensity light emitting surface with a viewing angle of 100 degrees, which makes it ideal for flush panel mounting and backlighting applications.
This LED utilizes a GaAsP on GaP LED chip to deliver solid state reliability and long operational life, making it suitable for industrial electronic, display, indicator, and lighting uses in laboratories, manufacturing, and commercial products.
The lens dimensions of 2.5 x 7.6 x 8 mm and the red color emission based on a dominant wavelength of 626 nm ensures clear and visible indication in various lighting conditions.
The device is RoHS compliant, ensuring environmental safety. It is packaged in bulk and designed for low current operation, enhancing compatibility with ICs and efficient power consumption.
The rectangular, flat light emitting surface integrates easily into panel indicators. Long life with reliable solid-state performance ensures maintenance-free operation. Low current requirements make it suitable for a wide range of electronic devices.
High visual contrast achieved by the tinted, diffused lens enhances the indicator's visibility. Compatible with Avago HLMP series LEDs for standardized applications. Broadcom LEDs are widely used in industrial, laboratory instrumentation, electronic manufacturing, and commercial lighting systems for status indication and backlighting.
Explore more quality electronic components and LEDs at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 1.9 V.
The maximum forward current for the HLMP-0301 is 90 mA.
This LED has a viewing angle of 100 degrees, providing wide visibility.
The lens dimensions measure approximately 2.5 x 7.6 x 8 mm.
It uses through hole mounting with a 2-pin configuration, suitable for PCB integration.
The dominant wavelength is 626 nm, corresponding to bright red light emission.
This LED is packaged in bulk.
The LED luminosity is 2.1 mcd.
Yes, this LED is RoHS compliant, ensuring environmental safety.
It is ideal for panel indicators, backlighting legends, and precise electronic component lighting.
The lens has a tinted and diffused finish, providing a flat, high-intensity emitting surface.
This LED belongs to the HLMP series.
