Microchip USB Transceiver 3-Channel 3.3V UTMI + ULPI OTG USB 2.0 32-Pin QFN USB3300-EZK-TR

Free Delivery in India | Lowest Global Shipping Charges

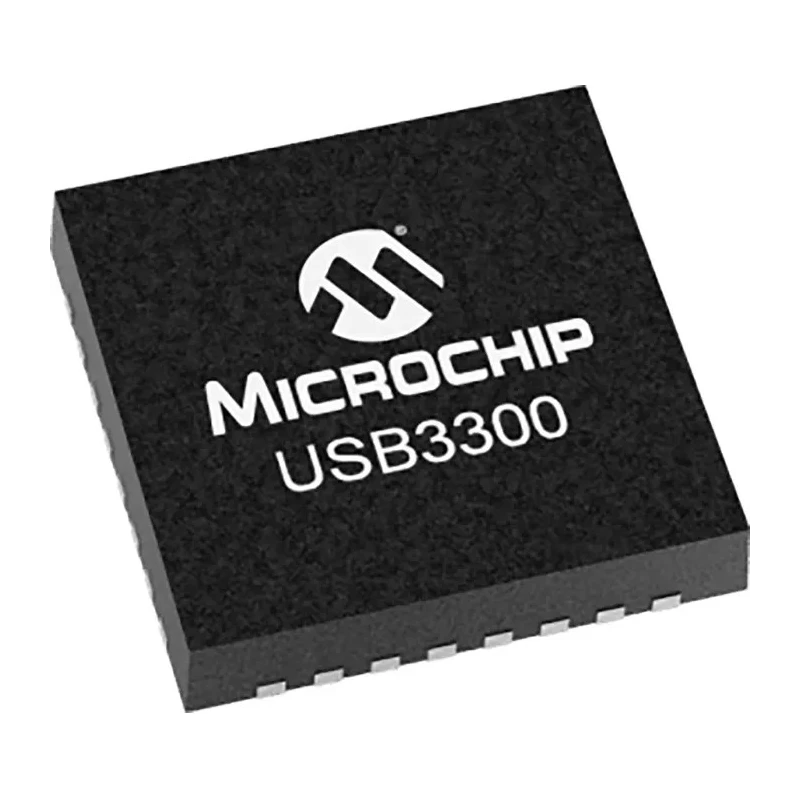

Microchip USB Transceiver 3-Channel 3.3V UTMI + ULPI OTG USB 2.0 32-Pin QFN USB3300-EZK-TR

Name: Microchip USB Transceiver 3-Channel 3.3V UTMI + ULPI OTG USB 2.0 32-Pin QFN USB3300-EZK-TR
Brand: Microchip
SKU: 153533
Price: 2.27 USD
Availability: InStock



Category USB Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	Taiwan
Brand	Microchip
Height	950μm
Length	5.1mm
Model	USB3300-EZK-TR
Mount Type	Surface
Series	USB3300
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Interfaces	USB-IF Hi-Speed
Pin Count	32
Minimum Supply Voltage	3.3V
Number of Transceivers	3
USB Specification	USB 2.0
Supported Protocols	UTMI + ULPI, OTG, USB 2.0

Key Features

Complies with USB 2.0 and supports OTG protocol.
Features a 3.3V single power supply operation.
Offers ESD protection up to ±8kV HBM without external components.
Uses a 32-pin QFN surface-mount package.
Operates over a temperature range from -40°C to 85°C.
Includes low latency transmit and receive functionality via ULPI interface.
Supports a low pin count interface reducing UTMI+ to 12 pins.
Internal 1.8V regulators enable efficient single supply operation.

Product Description

Microchip USB3300-EZK-TR USB Transceiver is a high-speed, industrial temperature USB Physical Layer Transceiver designed for seamless integration with ULPI compliant link layer devices. It supports USB 2.0 specification with a 3.3-volt power supply and features a surface-mount 32-pin QFN package ideal for compact applications.

This transceiver integrates advanced ESD protection rated at ±8kV Human Body Model, ensuring durability and reliability in demanding electronic environments. Operating temperature ranges from -40°C to 85°C enable stable performance in industrial-grade settings.

The USB3300 utilizes an innovative ULPI interface that reduces the traditional UTMI+ 54-pin interface down to just 12 pins, minimizing PCB complexity and supporting low latency data transmission. This design was conceived without UTMI to ULPI wrappers, providing a direct and efficient communication path between PHY and link layers.

The device supports the On-The-Go (OTG) protocol including Host Negotiation Protocol (HNP) and Session Request Protocol (SRP), enabling dynamic role switching in USB applications. Internal 1.8-volt regulators allow operation from a single 3.3-volt power supply, simplifying design requirements.

With its compact size (5.1 mm length and 950 μm package height) and industrial-grade specs, the USB3300-EZK-TR is well suited for applications in industrial automation, electronic instrumentation, computer peripherals, and embedded systems requiring reliable USB 2.0 connectivity.

Complies with USB 2.0 and supports OTG protocol. Features a 3.3V single power supply operation. Offers ESD protection up to ±8kV HBM without external components. Uses a 32-pin QFN surface-mount package. Operates over a temperature range from -40°C to 85°C.

Includes low latency transmit and receive functionality via ULPI interface. Supports a low pin count interface reducing UTMI+ to 12 pins. Internal 1.8V regulators enable efficient single supply operation. Designed without UTMI to ULPI wrappers ensuring seamless ULPI to link communication.

Suitable for industrial, laboratory, and electronic device integration applications. Explore the extensive range of USB Interface ICs and semiconductor products in EnvMart for advanced design solutions.
