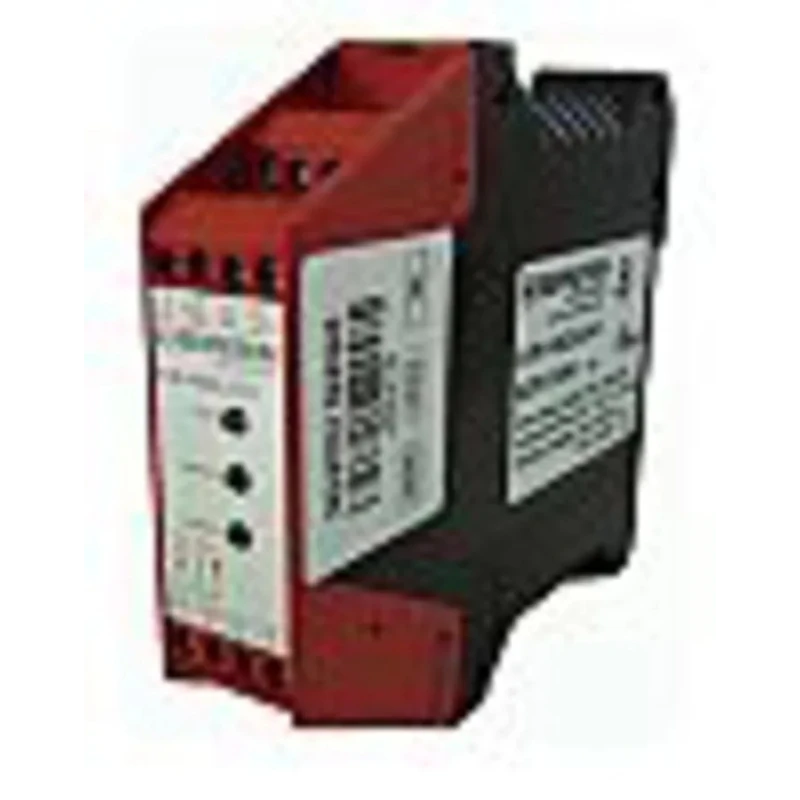

Bernstein AG SCR 24V dc Safety Relay 3 Safety Contacts 3 6075111020
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 2.5W |
| Brand | Bernstein AG |
| Height | 114.5mm |
| Length | 22.5mm |
| IP Rating | IP20, IP40 |
| Width | 99mm |
| Mount Type | DIN Rail |
| Series | SCR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3 NO |
| Time Delay | 30 ms (Delay on deenergisation K1) |
| Minimum Operating Temperature | -25°C |
| Safety Category | PLe, CAT 4 |
| Terminal type | Screw |
| Standards/Approvals | CUL US, TÜV, EU acc. to Directive 2006/42/EG, EN ISO 13849-1 |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Contact Current | 6A |
| Safety Contacts | 3 |
| Number of Auxiliary Contacts | 3 |
Key Features
- Compact dimensions of 22.5mm width and 114.5mm height for easy DIN rail mounting.
- Equipped with screw-type terminals for reliable electrical connections.
- Monitored start with selectable external jumper for enhanced safety.
- Operating temperature range from -25°C to 55°C for diverse environments.
- Power consumption of 2.5W ensures energy-efficient operation.
- Features LED indicators displaying output status and mains supply condition.
- Compliant with standards including CUL US, TÜV, EN ISO 13849-1 and EU Directive 2006/42/EG.
- IP20 and IP40 rated protection for robust industrial usage.
Product Description
Bernstein AG 6075111020 Safety Relay is a slim-line SCR series device operating at 24V dc with 3 normally open safety contacts and 3 auxiliary contacts housed in a durable polyamide housing designed for DIN rail mounting.
With compact dimensions of 22.5mm length, 114.5mm height, and 99mm width, it integrates easily into control panels for industrial and automation systems.
The relay features screw-type terminals ensuring secure wiring connections and is equipped with LED status indicators to provide clear visual feedback of output and mains supply states.
The product supports a monitored start function via a selectable external jumper, enhancing safety operations by preventing cross-short circuits. Operating reliably between a temperature range of -25°C to 55°C, this safety relay consumes 2.5 watts of power, making it suitable for energy-conscious applications.
Certification and standards compliance includes CUL US, TÜV, EU Directive 2006/42/EG, and EN ISO 13849-1, ensuring adherence to international safety and quality requirements. Rated IP20 and IP40 for ingress protection, it withstands typical industrial environmental conditions.
Typical applications include monitoring safety switches and sensors in industrial automation, safety gate controls, and pressure-sensitive mats to ensure operator protection and system integrity.
Compact dimensions of 22.5mm width and 114.5mm height for easy DIN rail mounting. Equipped with screw-type terminals for reliable electrical connections. Monitored start with selectable external jumper for enhanced safety.
Operating temperature range from -25°C to 55°C for diverse environments. Power consumption of 2.5W ensures energy-efficient operation. Features LED indicators displaying output status and mains supply condition. Compliant with standards including CUL US, TÜV, EN ISO 13849-1 and EU Directive 2006/42/EG.
IP20 and IP40 rated protection for robust industrial usage. Designed for industrial automation, safety gates, and pressure-sensitive mat applications. Safety category rated PLe, CAT 4 for highest safety performance. This Bernstein AG safety relay is made in Germany and designed for use in demanding industrial and automation contexts requiring precise and reliable safety contact monitoring.
Explore more products in the Safety Relay category on EnvMart for solutions tailored to industrial automation and safety applications.
