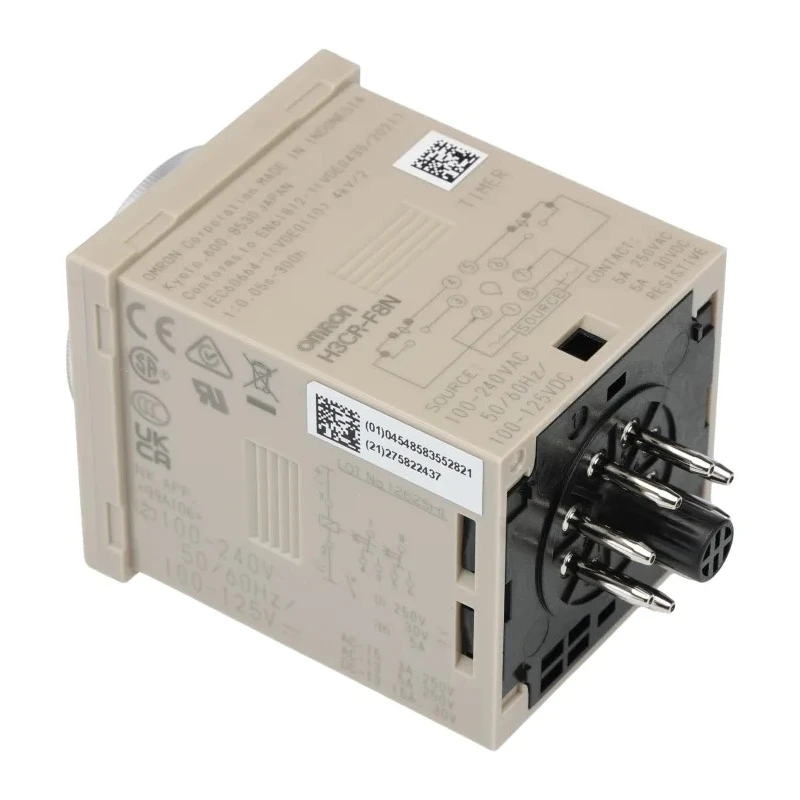

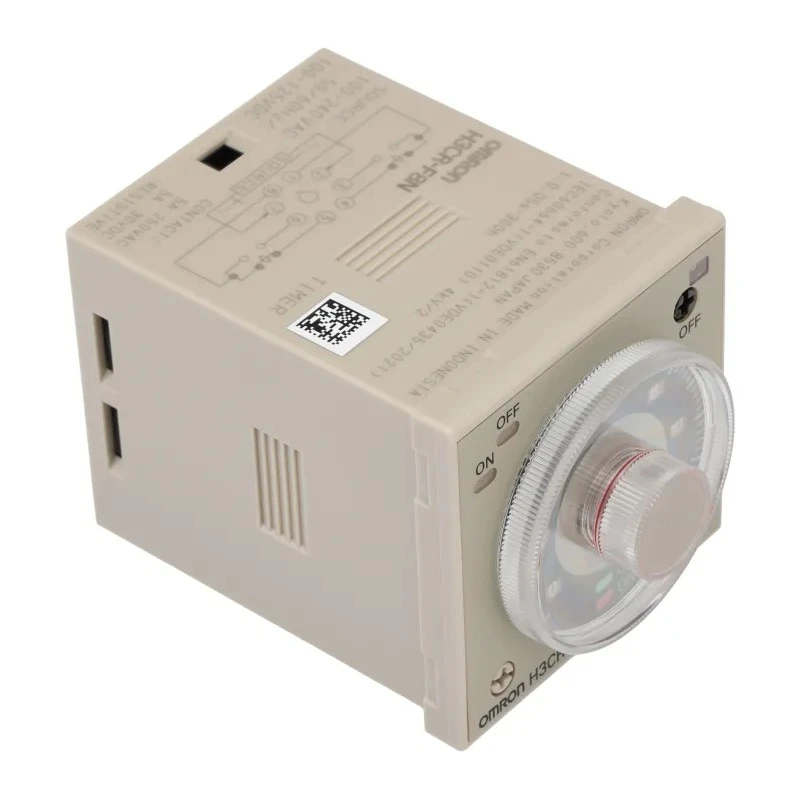

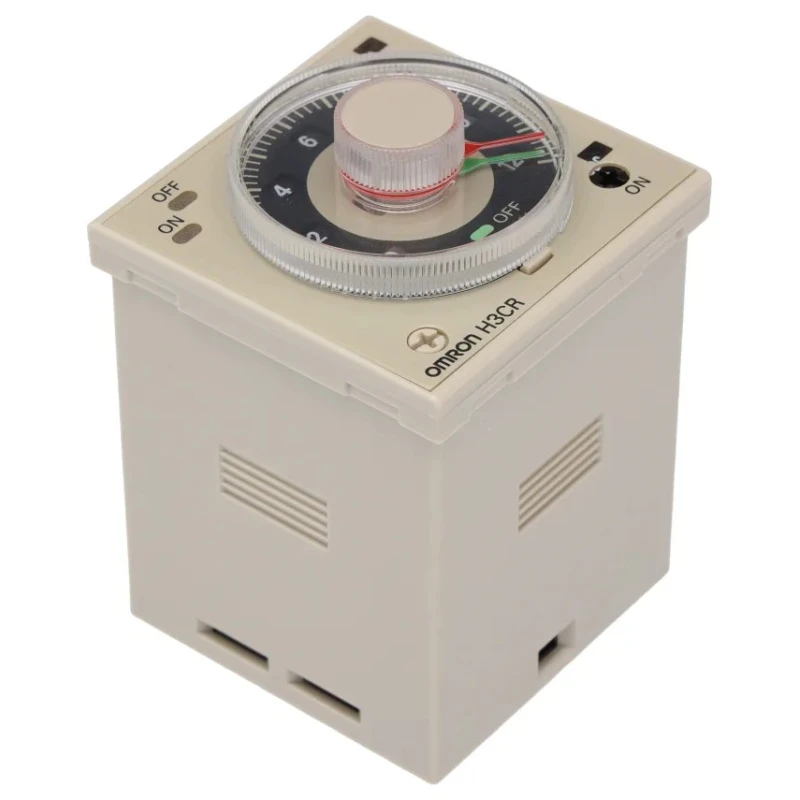

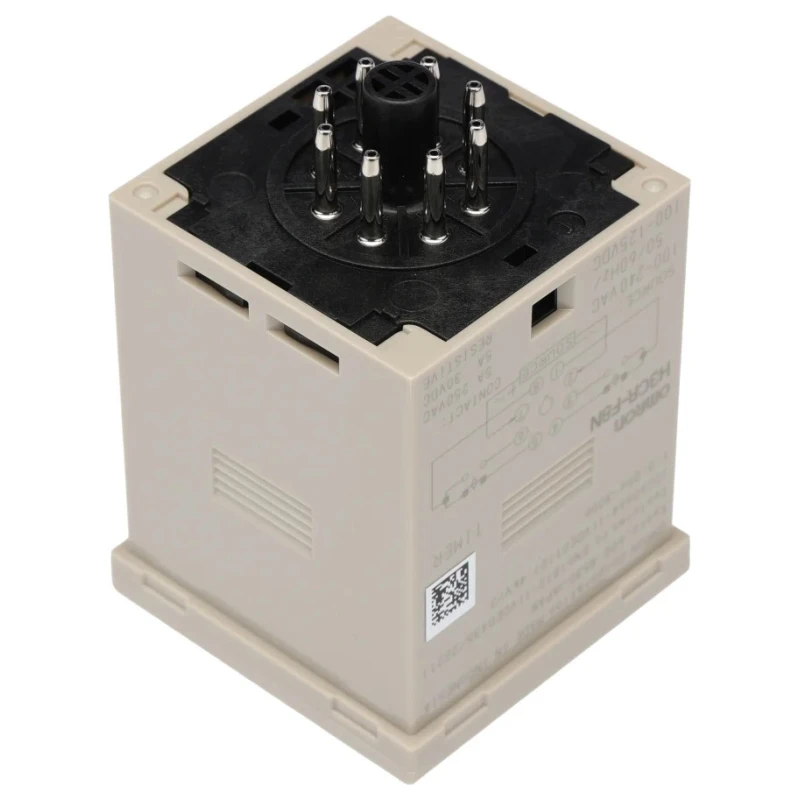

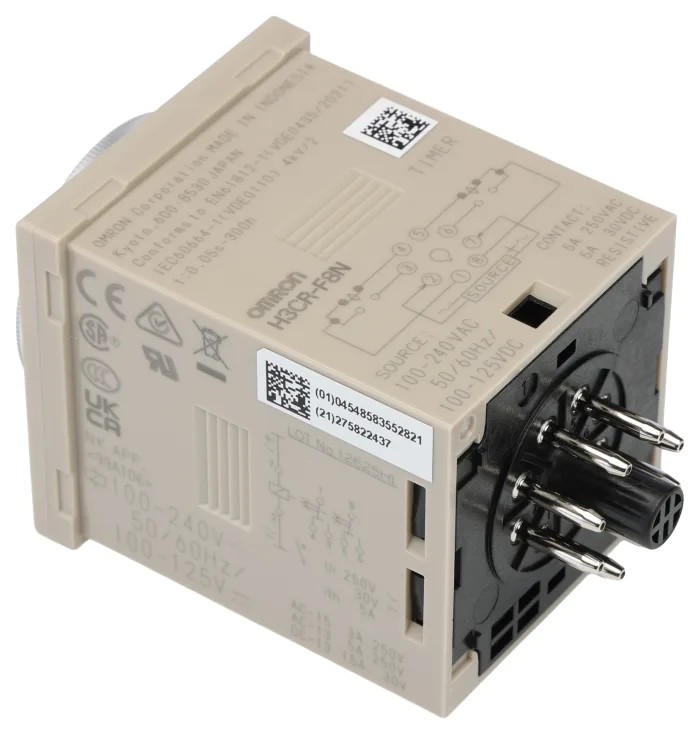

Omron Multifunction DIN Rail Timer Relay DPDT Contact 100 to 48 V DC 100-240 V AC 0.05 s to 30 h H3CR
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 84mm |
| Function | Multifunction |
| Length | 48mm |
| Model | H3CR |
| IP Rating | IP40 |
| Mode | Star-Delta |
| Width | 48mm |
| Mount Type | DIN Rail |
| Series | H3CR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.05 s to 30 h |
| Terminal type | Crimp |
| Standards/Approvals | Lloyds, CCC, NK, EN 61812-1, UL, IEC60664-1, CE, CSA |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V |
| Contact Current | 5A |
| Supply DC Voltage | 100 to 48 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 100, 240V ac |
Key Features
- Time range adjustable from 0.05 seconds to 30 hours for versatile timing functions.
- Equipped with a DPDT contact configuration to enhance switching control.
- DIN rail mount design allows easy and secure installation.
- Knob adjustment enables straightforward control of timing settings.
- Rated contact current of 5 A suitable for various control circuits.
- Operates reliably between -10°C to +55°C ambient temperatures.
- Houses IP40 protection rating for general industrial environments.
- Complies with multiple international standards including UL, CE, CSA, and IEC.
Product Description
Omron H3CR-F8N AC100-240/DC100-125 multifunction DIN rail timer relay is a high-performance component designed for precise time control in industrial automation and electrical applications. This model features a DPDT contact configuration, supporting dual supply voltages from 100 to 48 V DC and 100 to 240 V AC, making it versatile for various electrical environments.
The timing range spans from a very short 0.05 seconds up to 30 hours, adjustable via a user-friendly knob, enabling its use in many sequential control and timing applications. Its DIN rail mount ensures quick, secure installation suitable for control panels and automation systems.
This timer relay offers reliable operation in ambient temperature conditions ranging between -10°C and +55°C, with an IP40 protection rating to shield against dust and solid objects. It has a rated contact current of 5 A, making it suited for controlling lights, signals, and other devices in manufacturing, HVAC, and machinery automation contexts.
The device's crimp terminal type facilitates stable electrical connections. It meets several international safety and quality standards, including UL, CE, CSA, IEC60664-1, and others, ensuring dependable operational safety in industrial environments.
Common applications include timed control in industrial manufacturing processes, managing signal equipment, and automating machine startup/shutdown sequences. The star-delta mode further adds to its multifunctional capabilities for complex control requirements.
Supports dual supply voltage inputs for installation flexibility. Time range adjustable from 0.05 seconds to 30 hours. DPDT contact configuration for enhanced switching capability. Knob timing adjustment for ease of operation.
Rated contact current of 5 A suitable for varied control circuits. Operational temperature range from -10°C to +55°C. IP40 protection rating for industrial environment suitability. Compliance with multiple relevant international standards.
Secure crimp-type terminal connections. DIN rail mountable for convenient panel integration. Choose Omron Timer Relays from EnvMart for reliable, multifunction time control solutions supporting a range of industrial, manufacturing, HVAC, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range from 0.05 seconds to 30 hours, allowing for versatile timing functions in various applications.
It features a DPDT (Double Pole Double Throw) contact configuration, enhancing its switching capabilities for various control circuits.
This model supports dual supply voltages, operating between 100 to 240 V AC and 100 to 48 V DC, providing flexibility for different electrical environments.
The rated contact current is 5 A, making it suitable for controlling lights, signals, and other devices in various applications.
It operates reliably within an ambient temperature range of -10°C to +55°C, suitable for various industrial environments.
The timer relay has an IP40 protection rating, which provides a degree of protection against dust and solid objects in general industrial environments.
It is designed for DIN rail mounting, allowing for easy and secure installation in control panels and automation systems.
This timer relay features crimp terminal connections, which facilitate stable electrical connections during operation.
It complies with several international standards including UL, CE, CSA, and IEC60664-1, ensuring operational safety in industrial applications.
The dimensions of this model are 84 mm in height, 48 mm in width, and 48 mm in length, making it compact for various installations.
It is commonly used for timed control in industrial manufacturing processes, managing signal equipment, and automating machine startup/shutdown sequences.
The timing adjustment is made via a user-friendly knob, allowing for straightforward control of the timing settings.
