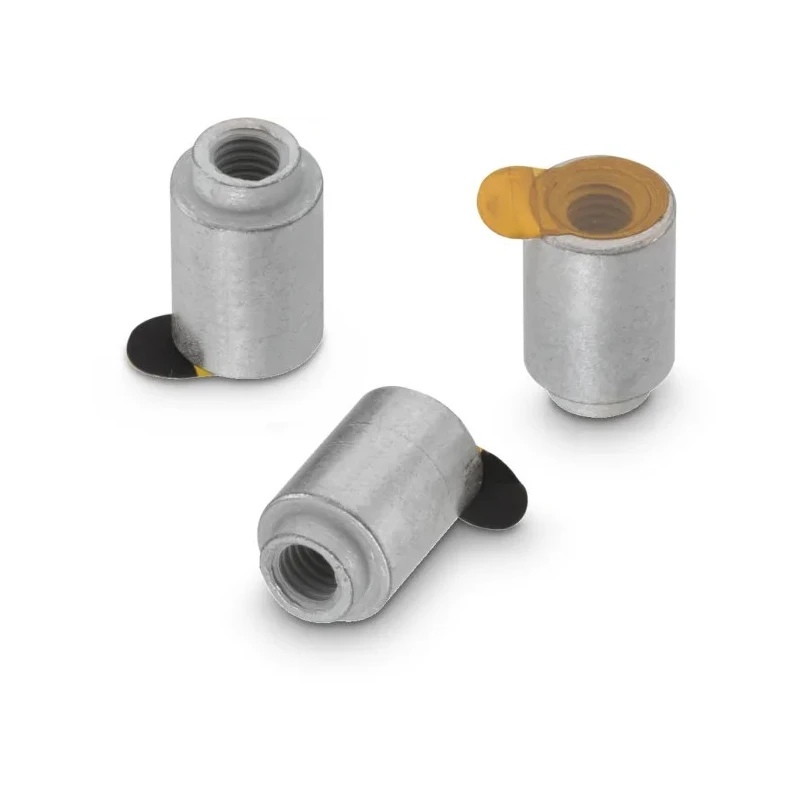

Wurth Elektronik SMT Mount Steel Round Spacer with Internal M3 Thread, Tin Surface, 1.5mm Thickness 9774015360R

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik SMT Mount Steel Round Spacer with Internal M3 Thread, Tin Surface, 1.5mm Thickness 9774015360R

Name: Wurth Elektronik SMT Mount Steel Round Spacer with Internal M3 Thread, Tin Surface, 1.5mm Thickness 9774015360R
Brand: Wurth Elektronik
SKU: 153165



Category PCB Spacers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Germany
Brand	Wurth Elektronik
Material	Steel
Model	9774015360R
Tightening Torque	0.5 N*m
Solder Cream Thickness	150 μm

Key Features

The spacer is made from steel for durability and strength.
It includes an internal M3 thread for secure mounting in electronic assemblies.
Provides a 150 μm solder cream thickness ensuring precise soldering.
Supports tightening torque of up to 0.5 N*m for reliable fastening.
Complies with RoHS and is halogen free according to IEC and JEDEC standards.
Suitable for operating temperatures from -55°C to +150°C.
The tin surface coating improves solderability and corrosion resistance.
Optimizes electromechanical assembly processes in SMT applications.

Product Description

Wurth Elektronik 9774015360R is a surface-mount technology (SMT) steel round spacer with an internal M3 thread and a tin surface finish. It features a 1.5mm thickness and is tailored for highly automated electronic assembly processes, delivering reliable mechanical support and spacing in complex electromechanical units.

Manufactured from durable steel, this spacer ensures strong structural integrity while maintaining a compact profile. Its tin surface enhances corrosion resistance and improves soldering performance in PCB assemblies.

Designed to comply with multiple environmental and safety standards including RoHS (2011/65/EU & 2015/863), IEC 61249-2-21, JEDEC JS709B, and REACH (EC 1907/2006), it meets stringent industry requirements for halogen-free materials.

The spacer supports a solder cream thickness of 150 micrometers and can withstand tightening torques of 0.5 N*m, ensuring secure and consistent fastening during manufacturing. It is suitable for operating in a wide temperature range from -55°C up to +150°C, making it ideal for various industrial, laboratory, and commercial electronics manufacturing environments.

Its application primarily includes printed circuit board (PCB) assembly for electronic components, providing precise spacing and mechanical stability for SMT devices. This spacer optimizes the assembly process, improving efficiency in automated production lines.

The spacer is made from steel for durability and strength. Includes internal M3 threading for mounting. Tin surface coating for improved solderability. Supports 150 μm solder cream thickness. 0.5 N*m tightening torque for reliable fastening.

Operating temperature range from -55°C to +150°C. Complies with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards. Optimizes electromechanical assembly in SMT applications. Explore more high-quality PCB Spacers from Wurth Elektronik and reliable components for electronic assembly on EnvMart.
