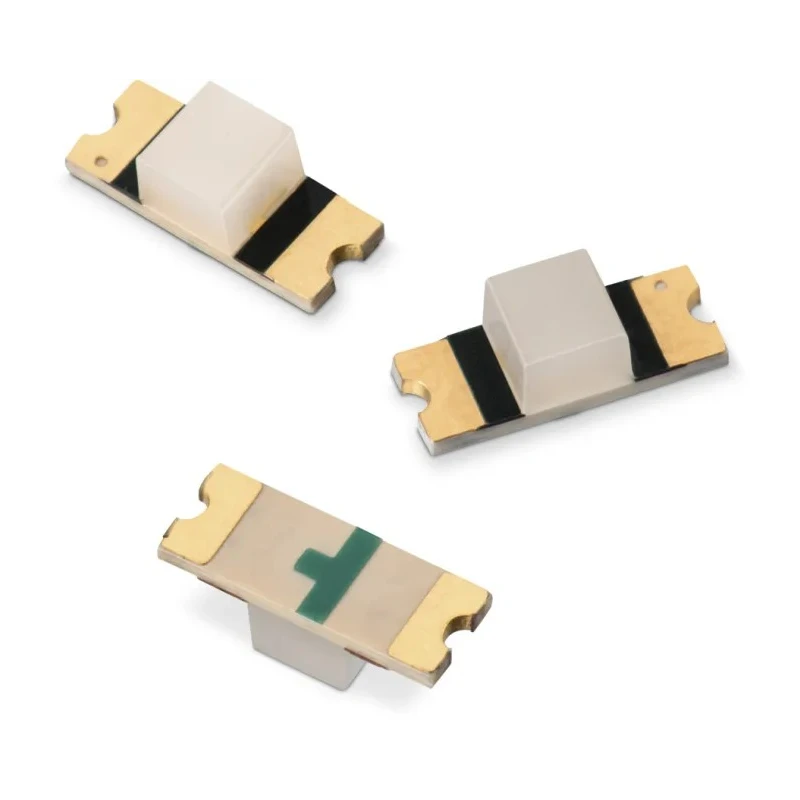

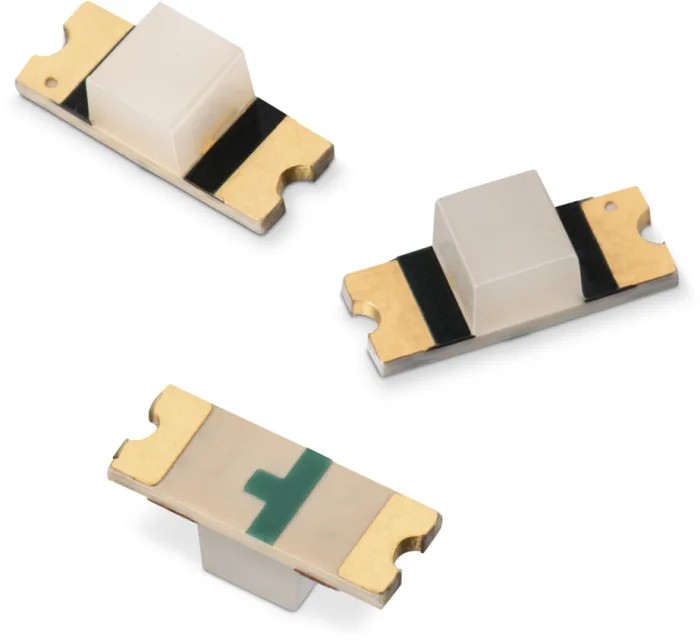

Wurth Elektronik Red LED 2.4 V 1205 Surface Mount Diffused Rectangular Lens WL-SMRD 156125RS57000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125RS57000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMRD |
| Maximum forward current | 30mA |
| Viewing angle | 160 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 110 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.2 x 1.1 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
Key Features
- Small size and thin body optimize space-saving installation.
- Wide 160° viewing angle provides broad light dispersion.
- High LED luminosity of 110 mcd ensures excellent visibility.
- Low power consumption with maximum power dissipation of 48 mW.
- Rectangular diffused clear lens for improved light diffusion.
- Compatible with automatic placement machinery for mass production.
- Ideal for front panel indicators, LCD and keypad backlighting.
- Complies with RoHS standards for environmental safety.
Product Description
Wurth Elektronik 156125RS57000 is a high-quality red LED designed for surface mount applications with a compact 1205 package size and 2.4 V forward voltage. This LED features a thin body and a rectangular diffused clear lens, allowing wide viewing angles of 160°, making it suitable for diverse electronic lighting needs in industrial and commercial electronics.
The device operates at a maximum forward current of 30 mA with a maximum power dissipation of 48 mW, delivering efficient and bright illumination with 110 mcd luminosity. Its two-pin surface mount design supports automated assembly lines, enhancing production efficiency with tape and reel packaging. RoHS compliance ensures environmentally responsible manufacturing.
Its widespread applications include front panel indicators, LCD backlighting, keypad and push button illumination, as well as symbol and switch backlighting, making it versatile for control panels, instrumentation, telecommunications, and electronic devices.
Small size and thin body for space-saving installation. Wide viewing angle of 160° for broad light dispersion. High brightness with 110 mcd luminous intensity. Low power consumption at 48 mW maximum dissipation. Rectangular diffused clear lens for uniform illumination.
Compatible with automatic placement machines for production efficiency. RoHS compliant for environmental standards. Package includes 2 pins surface mount LED in tape and reel format.
This component provides reliable illumination in a durable package suitable for electronics manufacturing, laboratories, instrumentation, and commercial electronics products. Explore the range of Wurth Elektronik LEDs at EnvMart for effective and efficient lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.4 V.
This model has a maximum forward current of 30 mA.
It has a luminosity of 110 mcd.
The viewing angle is 160°.
The lens dimensions are 3.2 x 1.2 x 1.1 mm.
It is packaged in tape and reel format for automated assembly.
This LED uses a surface mount type.
Yes, it complies with RoHS standards for environmental safety.
The lens has a rectangular shape.
It is suitable for front panel indicators, LCD backlighting, keypad illumination, and symbol backlighting.
The maximum power dissipation is 48 mW.
The country of origin for this LED is Taiwan.
