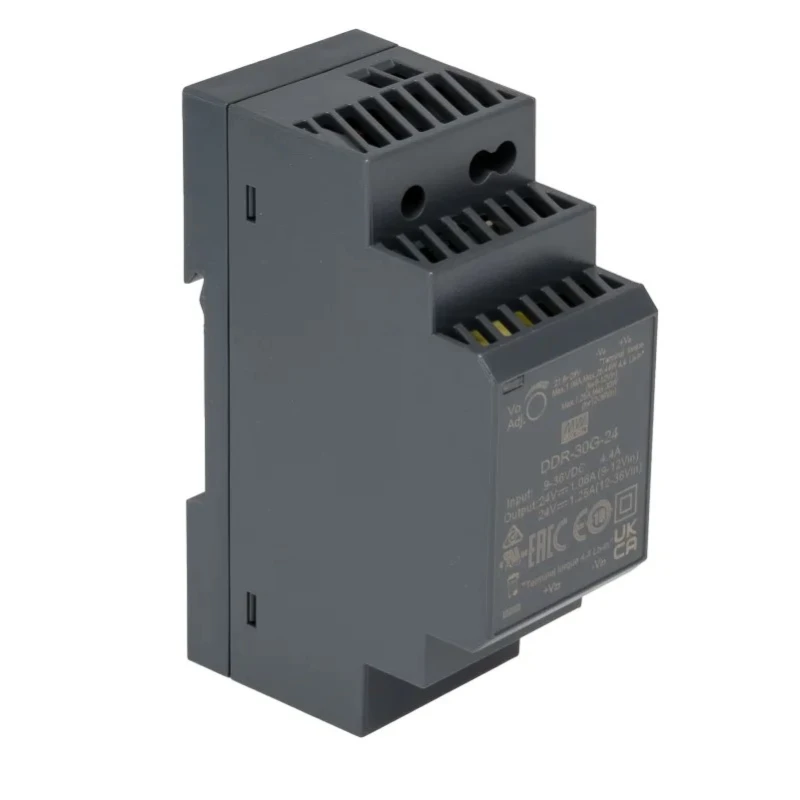

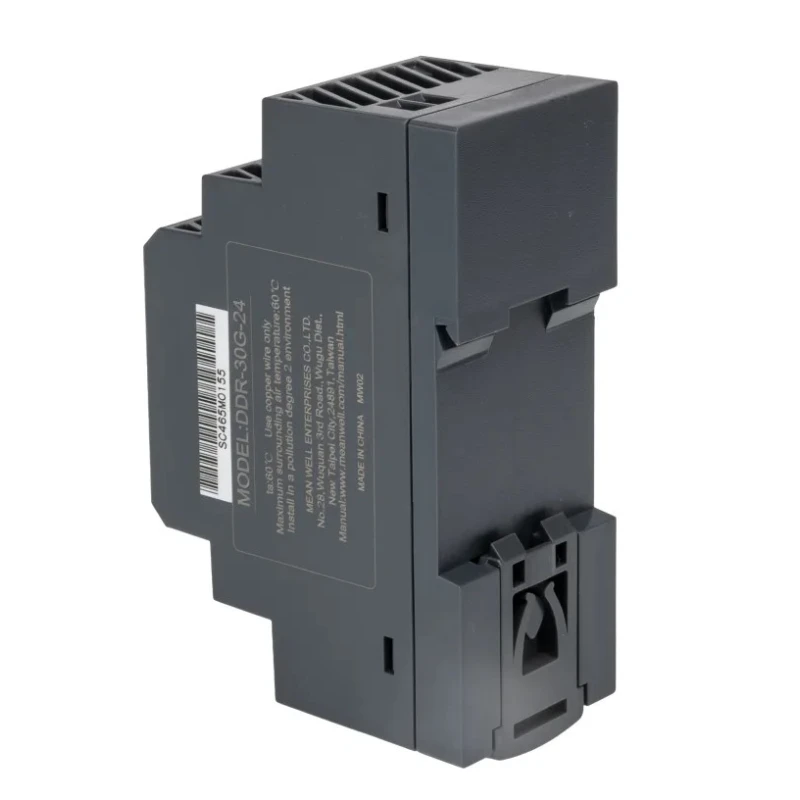

MEAN WELL DC/DC Converter , 24V DC Output, 9-36V DC Input, 6A Output Current, 30W Power, DIN Rail Mount, -40 to DDR-30G-24

MEAN WELL DDR-30G-24 is a high-quality DC/DC converter designed for industrial and commercial electronics applications. It provides a fixed 24V DC output voltage with a maximum power output of 30W, accommodating a wide input voltage range of 9 to 36V DC. The compact DIN rail mount form factor with a 35mm width allows for easy and space-saving integration into control panels and systems.

Featuring high efficiency of up to 91%, the DDR-30G-24 converter minimizes energy loss during operation and ensures reliable performance in demanding environments. Its wide operating temperature range from -40°C to 85°C ensures stable operation under harsh industrial temperature conditions.

Advanced protections including short circuit, overload, over voltage, input reverse polarity, and input under voltage protect both the device and connected equipment from damage. The reinforced 4kV DC isolation enhances noise filtering and safe installation in industrial electronics setups.

This DC/DC converter also provides low ripple and noise output (60mV Pk-Pk) and an output voltage adjustment range from 4.5 to 5.5 V allowing some flexibility in powering different loads. The Mean Time Between Failures (MTBF) of 483.3k hours demonstrates the durability and reliability of the product.

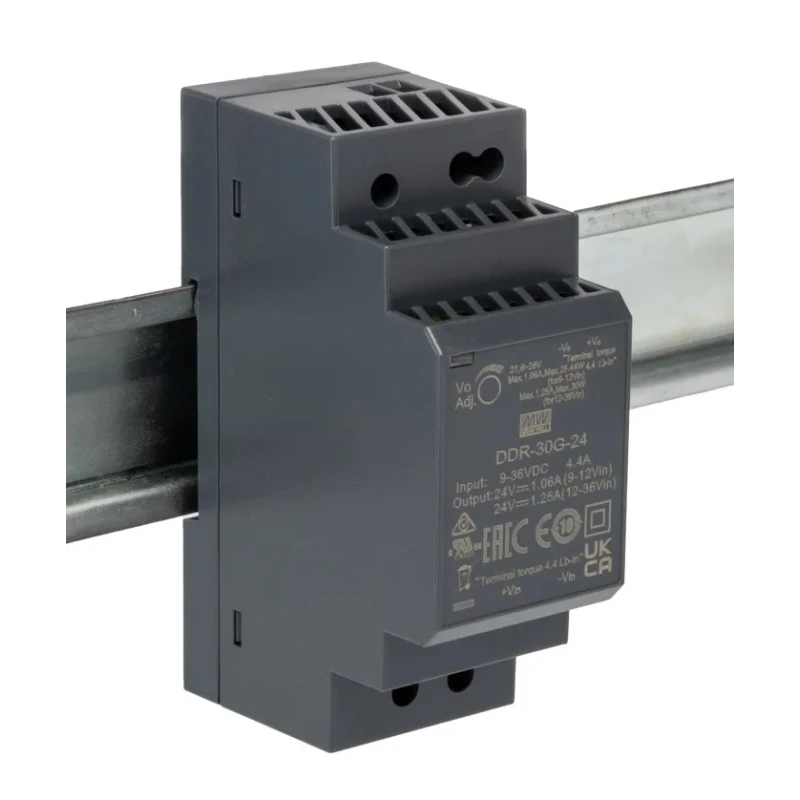

Certified to multiple international standards including UL508, IEC 62368-1, EN55032, and others, this converter is suited for use in industrial automation, control systems, instrumentation, and electronic power supply designs requiring stable 24V DC power. Its DIN rail mount design supports installation on TS-35/7.5 or 15 rails with easy free air convection cooling.

Compact and slim DIN rail mount 30W DC/DC converter with 24V output. Wide input voltage range of 9-36V DC for flexible power sources. Industrial temperature range of -40°C to +85°C for harsh environments. Robust protections including overload and short circuit.

Certified to multiple global standards for safety and EMC compliance. Reliable and efficient power supply ideal for electronics and control systems. Explore the full range of DC/DC Converters at EnvMart for industrial power supply solutions that meet your precise technical requirements.
