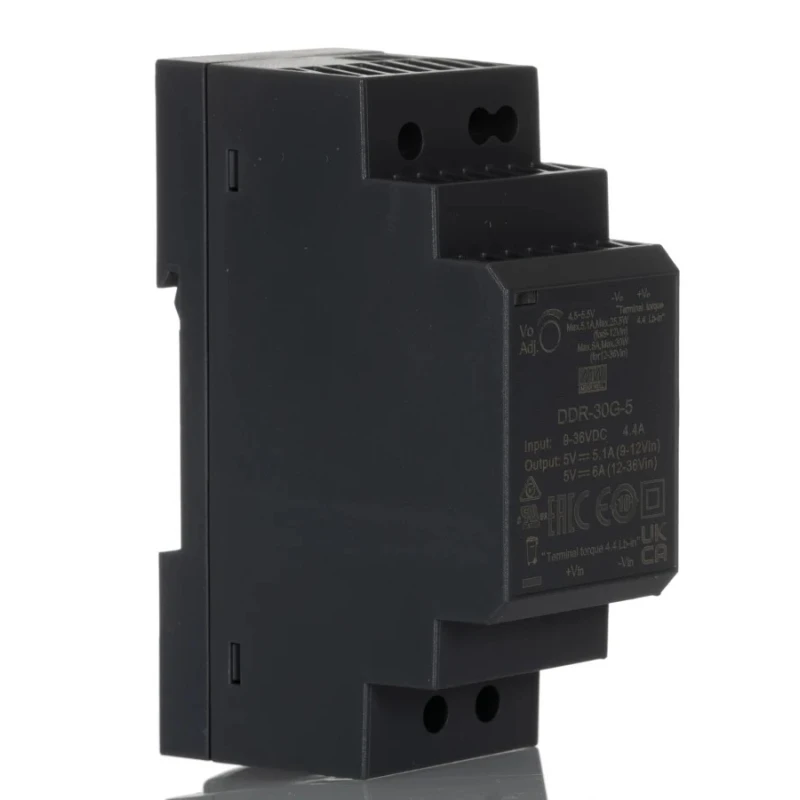

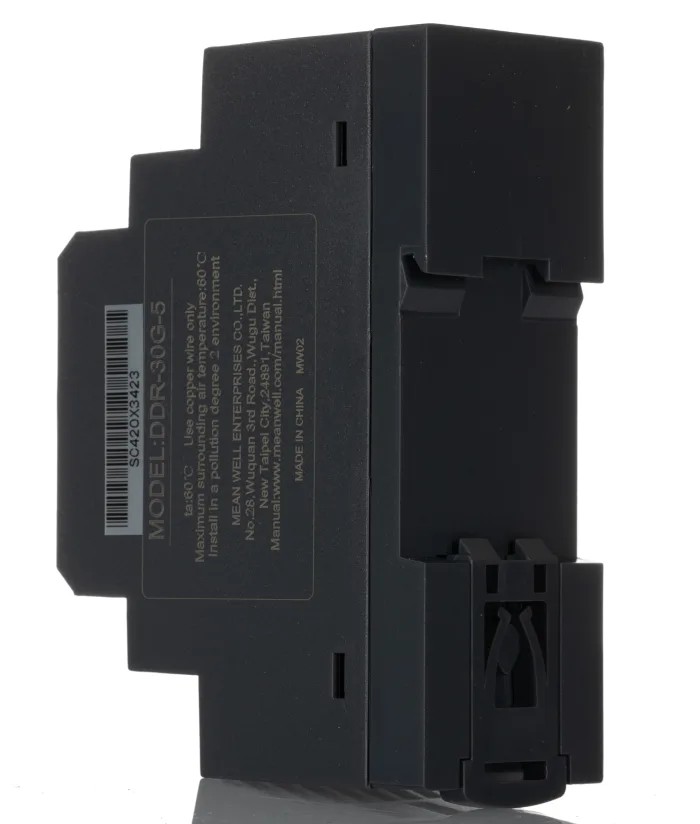

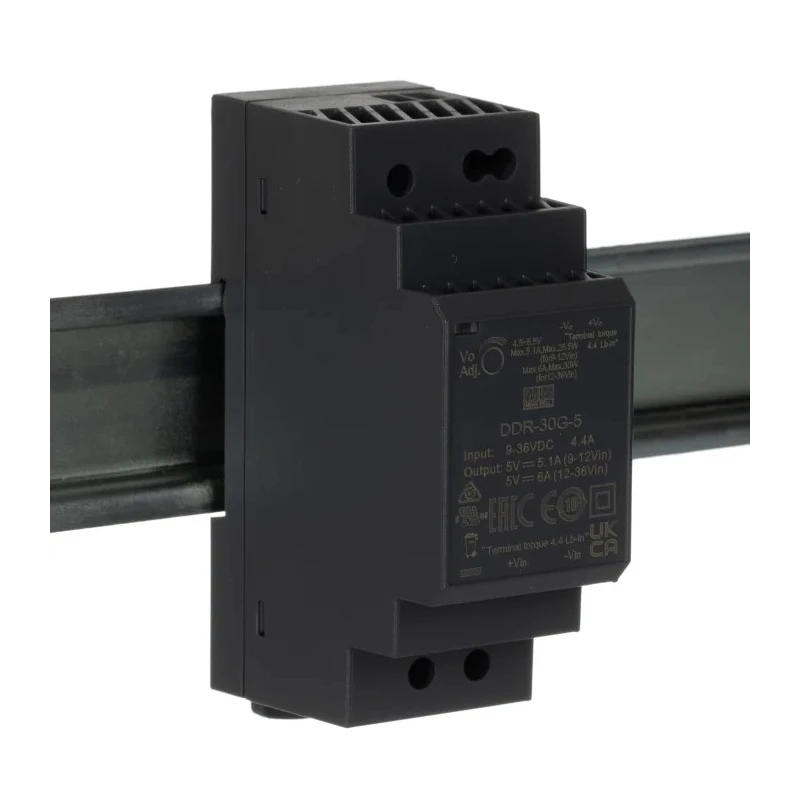

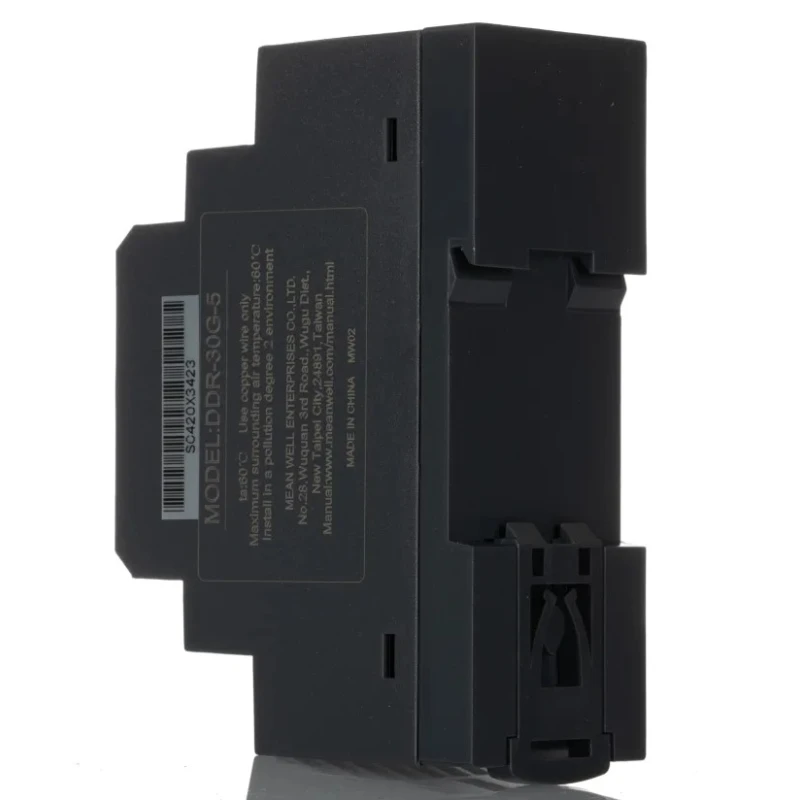

MEAN WELL DC/DC Converter, 5V DC Output, 9-36V DC Input, 6A Output Current, 30W Power, DIN Rail Mount, 85°C Max DDR-30G-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL DDR-30 DC/DC Converter, 5V dc/, 36V dc I |
| Brand | MEAN WELL |
| Efficiency | 91% |
| Length | 9mm |
| Model | DDR-30G-5 |
| Depth | 54.5mm |
| Gross Weight | 120g |
| Width | 35mm |
| Mount Type | DIN Rail |
| Series | DDR-30 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 40°C |
| MTBF | 483.3kH |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Protections | Short circuit / Overload / Over Voltage Input reverse polarity |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 6A |
| Output Voltage Adjustment Range | 4.5 to 5.5 V |
Key Features
- Compact and ultra-slim design with DIN Rail mount for easy installation.
- Wide input voltage range from 9V to 36V DC ensures versatile compatibility.
- Output voltage adjustable between 4.5V to 5.5V for precision power delivery.
- High efficiency up to 91% reduces energy loss and heat.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Protections include short circuit, overload, over voltage, reverse polarity, and under voltage.
- Reinforced 4KVdc isolation ensures safety and signal integrity.
- MTBF rated at 483,300 hours guarantees long-term reliability.
Product Description
MEAN WELL DDR-30G-5 DC/DC Converter delivers a regulated 5V DC output at 6A current from a wide input DC voltage range of 9V to 36V. It features a robust, ultra-slim industrial design optimized for DIN Rail mounting to fit conveniently in control panels and industrial automation systems.
This converter supports an adjustable output voltage range from 4.5V to 5.5V, enabling fine tuning for sensitive electronic components. It operates with high efficiency of up to 91%, minimizing heat dissipation and power loss.
The device is engineered for demanding environments, capable of operating reliably over a wide temperature range from -40°C to +85°C. It includes multiple protective functions such as short circuit, overload, over voltage, input reverse polarity, and under voltage protections to ensure safety and durability.
With reinforced 4KV DC isolation between input and output, it guarantees safe operation in industrial installations. The converter meets rigorous international standards including EN61000-4 series for electromagnetic compatibility and IEC 62368-1 for safety.
The compact size with dimensions of 54.5mm depth, 35mm width, and 90mm length, along with a lightweight of just 120 grams, allows easy integration into various industrial, manufacturing, electrical, and control system applications requiring stable DC voltage conversion.
Compact DIN Rail mount ultra slim converter. Wide 9-36V DC input voltage range. Adjustable 5V output voltage from 4.5 to 5.5V. Output current up to 6A delivering 30W power. Wide temperature operation -40°C to +85°C. Multiple protections ensure robust operation.
Reinforced isolation of 4KVDC. Meets international electromagnetic and safety standards. Lightweight 120g for easy panel mounting. Ideal for industrial and automation power supply solutions. Explore MEAN WELL products and reliable DC/DC Converters at EnvMart for your industrial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accepts a wide input voltage range from 9V to 36V DC.
The output voltage can be adjusted between 4.5V and 5.5V.
It can provide an output current of up to 6A.
The dimensions are 90mm in length, 35mm in width, and 54.5mm in depth, with a weight of 120 grams.
This unit is designed for DIN Rail mounting, facilitating easy installation.
It has an efficiency rating of up to 91%, which helps reduce energy loss.
It operates reliably over a wide temperature range from -40°C to +85°C.
It meets the EN61000-4 series for electromagnetic compatibility and IEC 62368-1 for safety.
This model features a single output.
