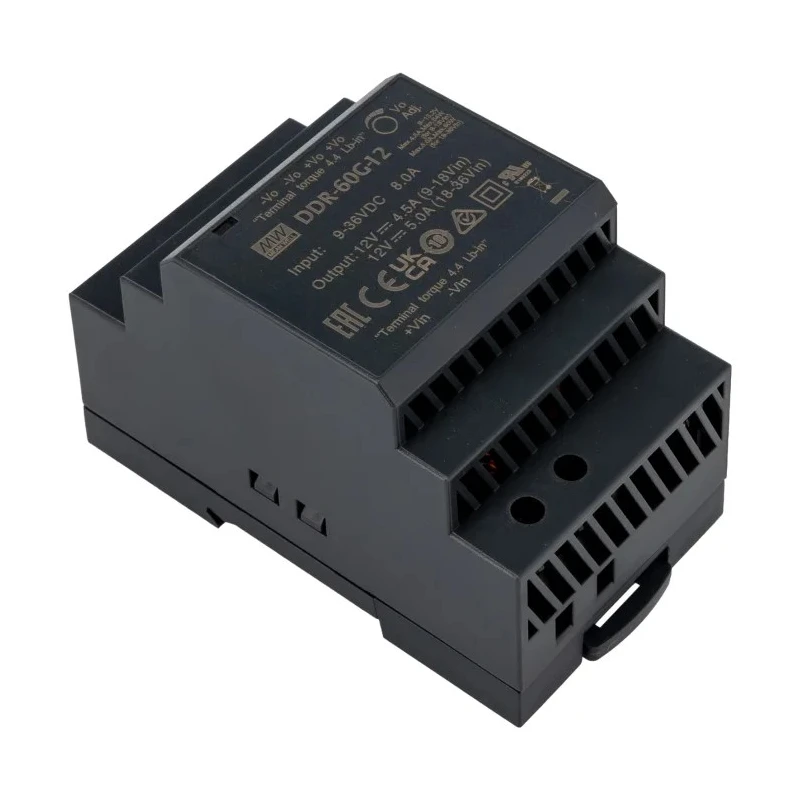

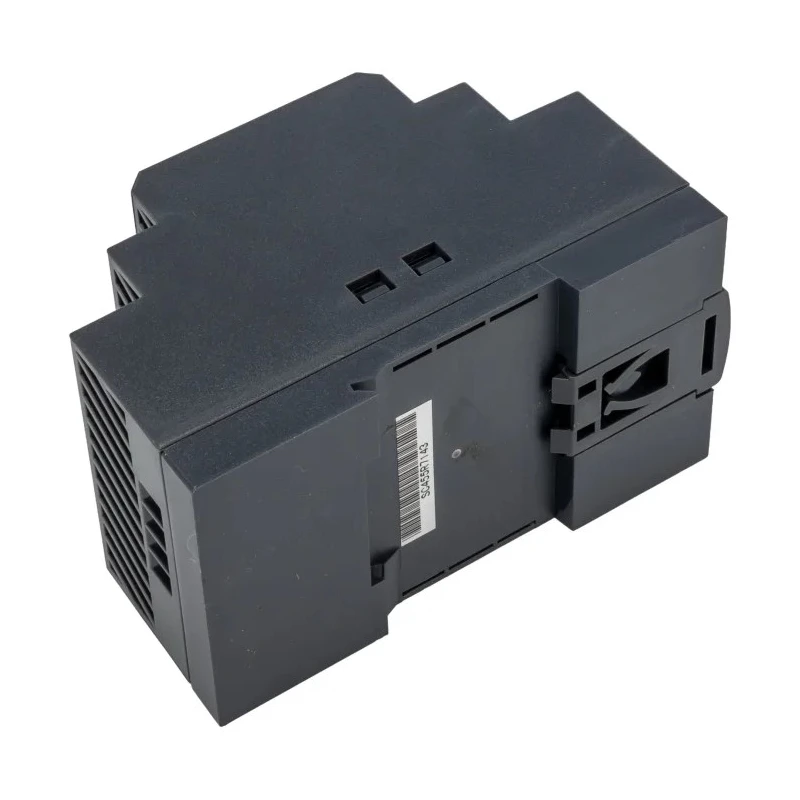

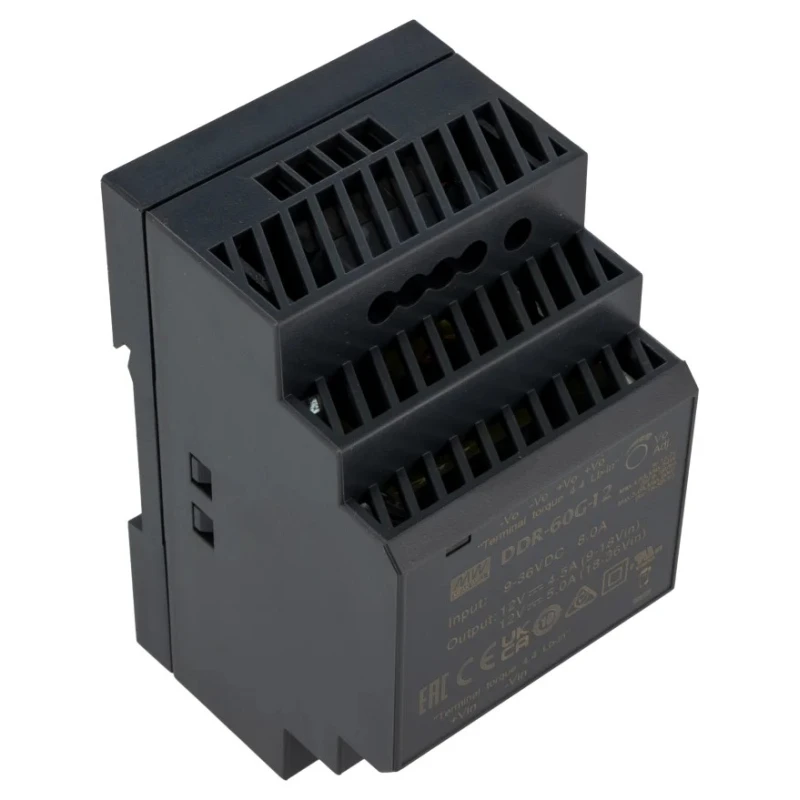

MEAN WELL DDR-60G-12 DC/DC Converter 24V Output, 9-36V DC Input, 12A, 60W, DIN Rail Mount DDR-60G-12

MEAN WELL DDR-60G-12 is a high-performance DC/DC converter engineered for industrial applications requiring a reliable 24V DC output from a wide input voltage range of 9V to 36V DC. This ultra-slim device supports a continuous output current of 12A with a maximum output power of 60W, making it suitable for power supply needs in factory automation, semiconductor fabrication equipment, telemetry, wireless networks, and telecom or datacom systems.

This DC/DC Converter features a DIN rail mount design (TS-35/7.5 or 15) facilitating straightforward and secure installation in control cabinets. It offers an adjustable output voltage range between 21.6V and 28V, allowing precise tuning of the output to meet specific application requirements.

The converter's cooling is achieved by free air convection, eliminating the need for additional cooling components. The product's operating temperature range extends from -40°C up to +85°C, supporting use in extreme environmental conditions.

Robust protections including short circuit, overload, overvoltage, input reverse polarity, and input under voltage safeguard the device and connected equipment. The 4KVdc reinforced isolation provides high-level insulation between input and output, enhancing system safety.

Additional features include a low ripple and noise of 100mV peak-to-peak ensuring clean power output, and a 6-pin connector interface for secure wiring. The converter meets multiple international standards such as EN61000-4-6, UL508, EN55032, IEC 62368-1, and others, ensuring compliance and quality assurance.

Weighing only 216 grams and with compact dimensions (Width 52.5mm, Depth 54.5mm, Length 9mm), the DDR-60G-12 is ideal for high-density industrial control systems. Its 611,000 hours MTBF promises reliable long-term operation.

Wide input voltage range suitable for various DC power sources. High efficiency and robust protection features. Space-saving DIN rail mounting with slim profile. Compliance with major safety and EMC standards. Designed for industrial control and automation applications.
