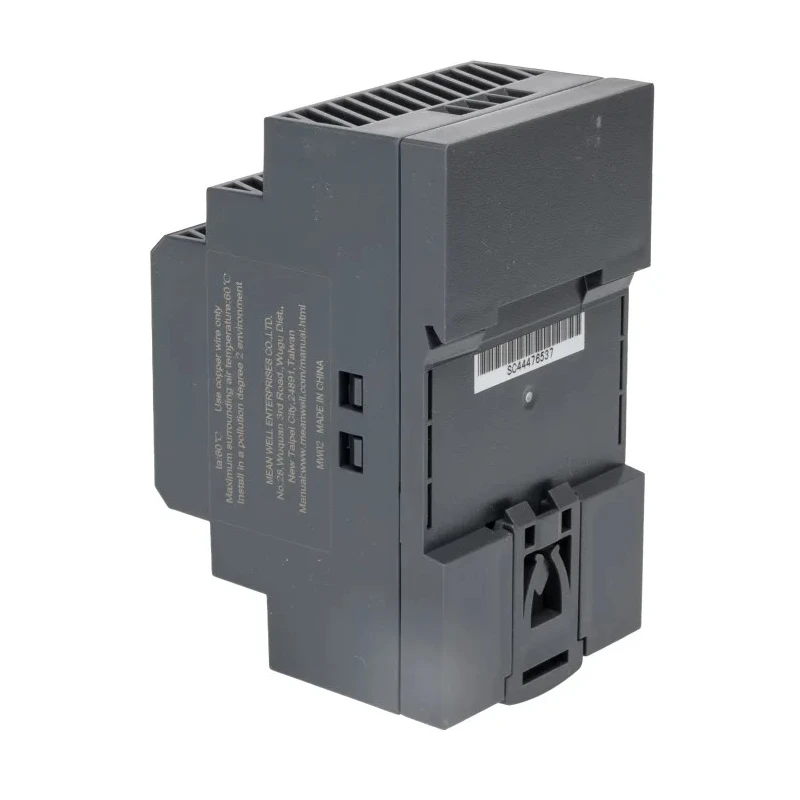

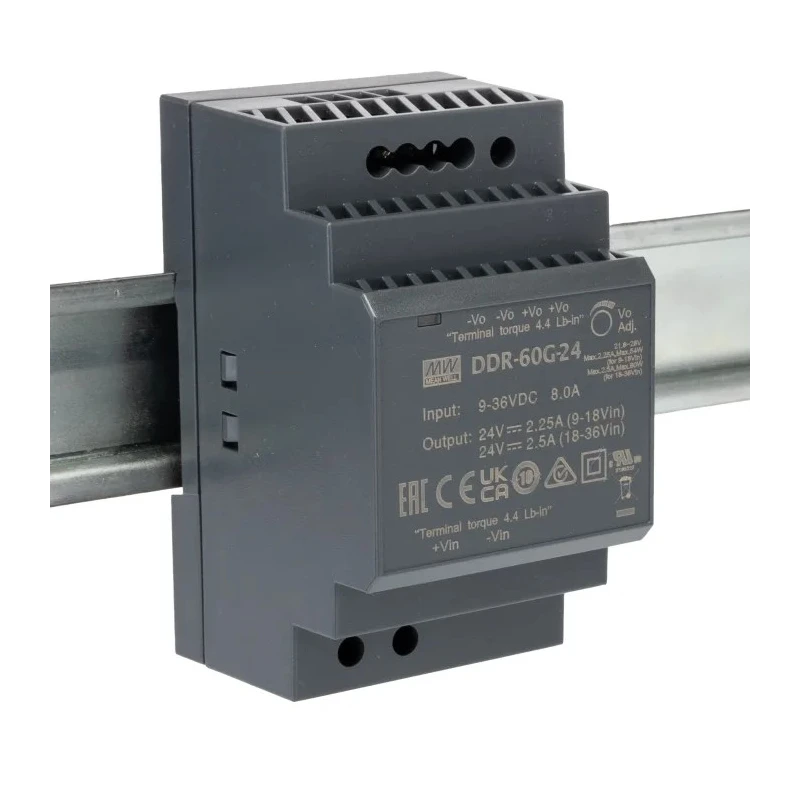

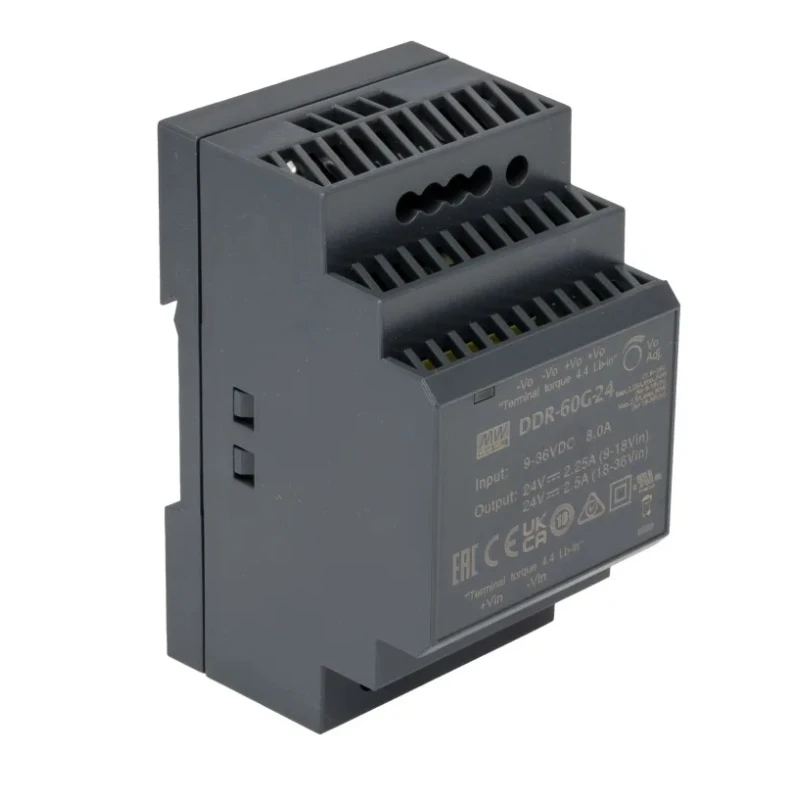

MEAN WELL DC/DC Converter 24V DC Output, 9-36V DC Input, 60W Power, DIN Rail Mount DDR-60G-24

MEAN WELL DDR-60G-24 is a robust DC/DC converter offering a 24V DC output power with a maximum output current of 12A and rated power of 60W. It accepts a wide input voltage from 9V up to 36V DC, making it suitable for varied industrial power sources. This converter features a DIN rail mount design with compact dimensions (52.5mm width and 54.5mm depth) to fit standard industrial control enclosures easily.

With a durable operating temperature range from -40°C to +85°C, this unit is built to withstand demanding environmental conditions. It provides a ripple and noise level of 100mV peak-to-peak and an output voltage adjustment range of 21.6 to 28V, allowing flexible output tuning.

The DDR-60G-24 includes multiple safety and protection mechanisms such as short circuit, overload, over voltage, input reverse polarity, and input under voltage protection. Its reinforced 4KVdc insulation ensures high-level safety and interference immunity, suitable for factory automation, semiconductor fabrication equipment, wireless networks, and telecom systems.

This converter complies with international certifications including EN61000 series, IEC62368-1, UL508, and others, guaranteeing reliable performance and safety. The device’s efficiency reaches 92%, minimizing power dissipation and improving system efficiency. The Mean Well DDR-60G-24 DC/DC converter is widely used in industrial control systems, electro-mechanical applications, and other sectors requiring reliable DC power conversion.

Supports ultra-wide input voltage range from 9 to 36V DC. Provides a regulated 24V DC output power up to 60W. Equipped with multiple protection features including short circuit and overload protection. Compact design with DIN rail mount for industrial installations.

High efficiency up to 92% to reduce energy loss. Wide operating temperature suitable for harsh environments. Output voltage adjustable between 21.6 to 28V for flexible control. Reinforced 4KVdc isolation for enhanced safety and noise immunity.

Complies with various international standards for reliability and safety. Ideal for industrial control systems, factory automation, and telecommunication applications. Explore a wide selection of DC/DC Converters and power supplies on EnvMart, designed for versatile industrial and commercial applications.
