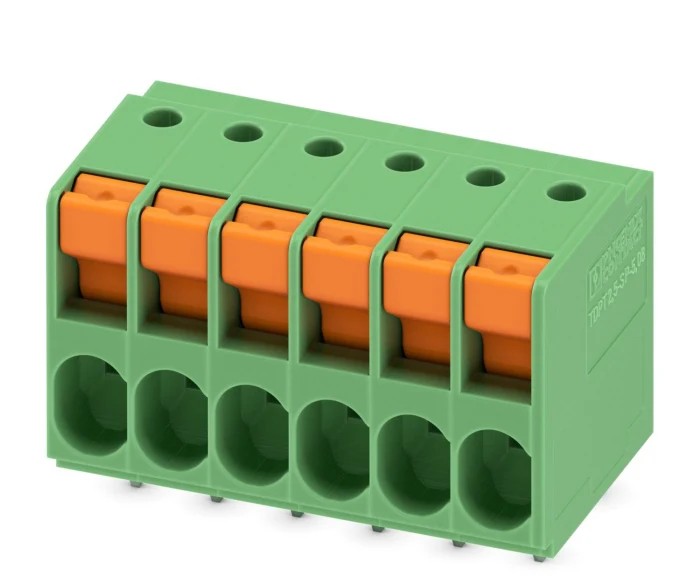

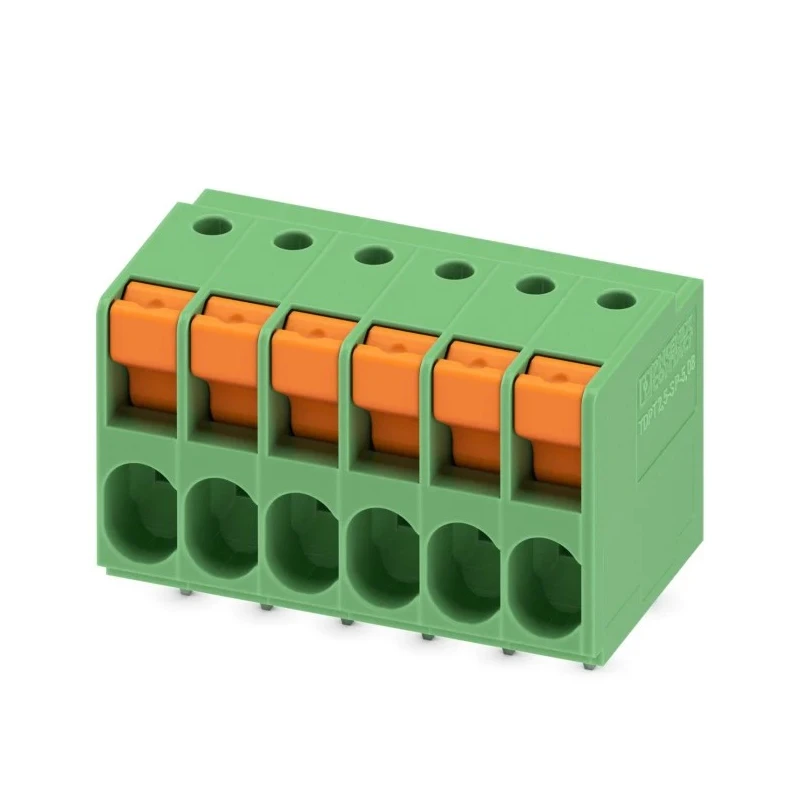

Phoenix Contact PCB Terminal Block TDPT 2.5/ 6-SP-5.08 Series, 6 Contacts, 5.08 mm Pitch, 32A, 400V, Wave Soldering 1017507
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 32A |
| Model | 1017507 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 2.5/ 6-SP-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 6 |
| PCB Terminal block, nominal current | 32 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Constructed with durable polyamide housing for excellent insulation.
- Supports nominal current of 32A with a voltage rating of 400V.
- Features push-in spring connection method for tool-free, quick installation.
- Designed with color-coded actuation lever for intuitive operation.
- Complies with WEEE and RoHS environmental standards for quality and sustainability.
- Single-row, straight orientation suitable for standard PCB layouts.
- Ensures stable long-term contact force with defined push-in connection.
Product Description
Phoenix Contact 1017507 PCB Terminal Block TDPT 2.5/ 6-SP-5.08 Series is engineered for precision and durability in electronic component applications. With a pitch of 5.08 mm and 6 contacts, it supports a maximum nominal current of 32 amperes and voltage rating up to 400 volts. The wave soldering mount design enables efficient and secure installation on printed circuit boards, enhancing mechanical stability and electrical performance.
The terminal block features a robust polyamide housing that offers excellent insulation and resistance to environmental factors. The push-in spring connection technology allows for tool-free conductor insertion, saving time and ensuring reliable electrical contact. The contact system is designed to maintain steady contact force over extended periods, minimizing maintenance needs and ensuring safety.
Additionally, this series incorporates a color-coded actuation lever, providing intuitive operation and easy wiring identification. Designed with a single-row, straight orientation and a conductor/PCB connection angle of 0 degrees, the terminal block is highly adaptable to various electronic assembly requirements.
Compliant with environmental standards including WEEE and RoHS, it meets modern regulatory requirements for chemical safety and recycling. This product is ideal for industrial, manufacturing, power electronics, and control system applications requiring dependable PCB connectors.
Constructed with durable polyamide housing for excellent insulation. Supports nominal current of 32A with a voltage rating of 400V. Features push-in spring connection method for tool-free, quick installation. Designed with color-coded actuation lever for intuitive operation.
Complies with WEEE and RoHS environmental standards for quality and sustainability. Single-row, straight orientation suitable for standard PCB layouts. Ensures stable long-term contact force with defined push-in connection.
This PCB Terminal Block meets the needs of electronics engineers and technicians requiring durable and easy-to-install connectors for demanding industrial environments. Explore our range of PCB connectors and terminal blocks at EnvMart for premium components tailored to your professional requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum nominal current of 32 amperes.
It has a voltage rating of up to 400 volts.
The pitch size is 5.08 mm.
This model features 6 contacts.
It is designed for wave soldering mount.
The housing is constructed from durable polyamide, providing excellent insulation.
It features a push-in spring connection method for tool-free installation.
This terminal block has a straight orientation suitable for standard PCB layouts.
It complies with WEEE and RoHS environmental standards.
The conductor/PCB connection angle is 0 degrees.
It is ideal for industrial, manufacturing, power electronics, and control system applications.
The country of origin for this terminal block is China.
