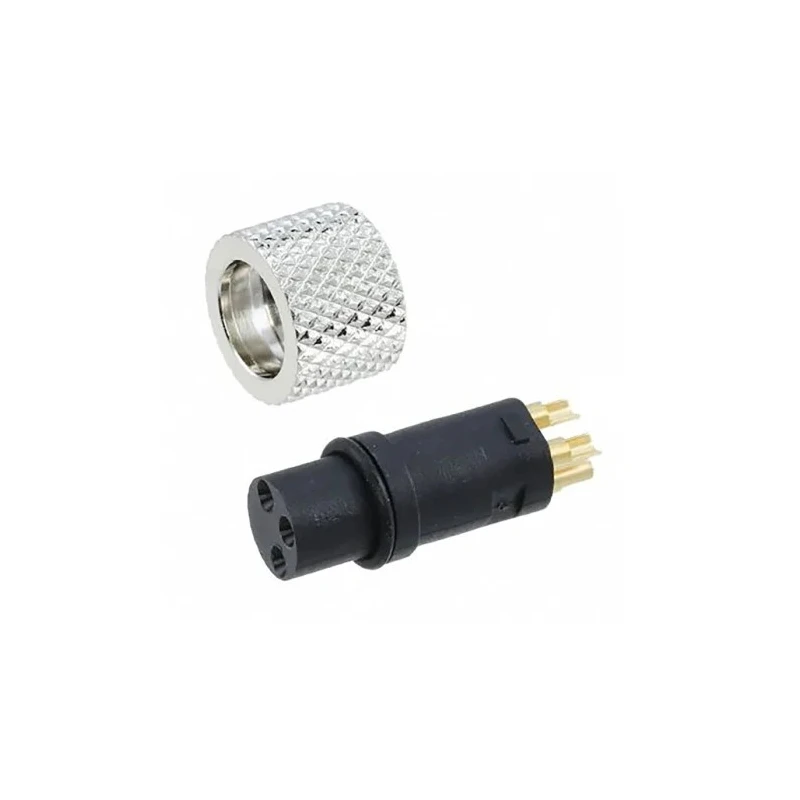

Norcomp Circular Connector, 4 Contacts, Panel Mount, M8 Size, Socket Female, IP67 Rated, 125V, 5A Current 855-004-203R004

Norcomp 855-004-203R004 Circular Connector is a premium industrial-grade 4-contact panel mount socket connector in the 855 series designed for reliable electrical connections in demanding environments. With a compact M8 connector size, this female socket connector supports up to 125V voltage and 5A current, suitable for a wide range of control, automation, and industrial applications.

The connector is designed with a thermoplastic housing offering durability and resistance to environmental stress. Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance. The connector's IP67 rating guarantees dust-tight and waterproof performance, enabling use in harsh industrial, manufacturing, and outdoor conditions.

Operating temperature range from -40°C to +85°C allows it to function reliably across extreme conditions. The straight orientation and threaded mating type provide secure and stable connections. Termination is solder type, favored for strong and dependable electrical joints.

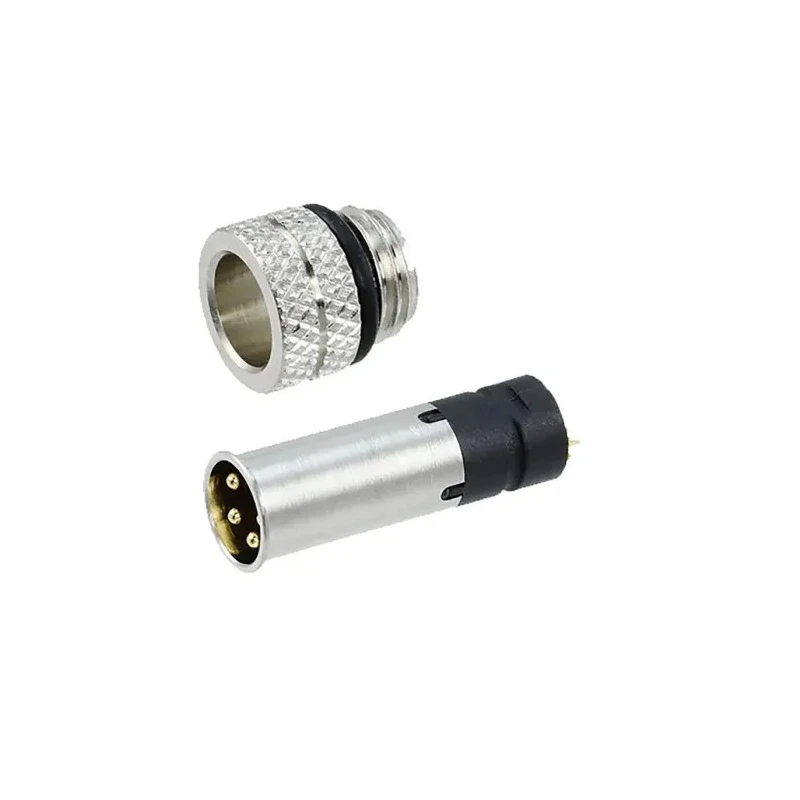

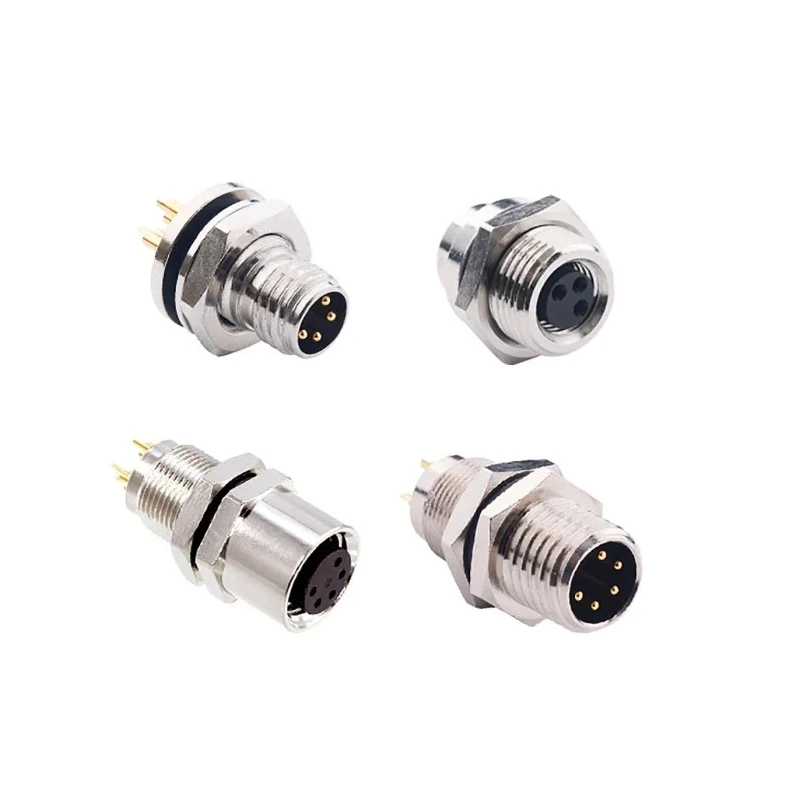

The 855 series M8 connectors are available in several pin configurations: 3, 4, 5, and 6 pins, enabling flexible system design. Key components include a brass nickel-plated shell and nut, black PBT insulator, and NBR/EPDM black O-rings for superior sealing performance.

Panel mount, 4 contacts, female socket for the 855 series M8 circular connector. Rated for 125V and 5A current capacity, supporting industrial power requirements. Thermoplastic housing and gold-plated phosphor bronze contacts for extended durability.

Wide temperature range operation from -40°C to 85°C for harsh environments. IP67 ingress protection certifies waterproof and dust-tight sealing. Threaded mating ensures stable and vibration-resistant connections. Solder termination to ensure electrically secure joints.

Suitable for industrial, manufacturing, automation, and electronic equipment applications. Includes brass nickel-plated shell, nut, and black PBT insulator with NBR/EPDM O-ring seals.

This Norcomp circular connector provides robust and reliable connectivity in industrial settings requiring high performance and protection against environmental challenges. The product fits applications ranging from factory automation to electronic device assembly, ensuring signal integrity and mechanical strength.
