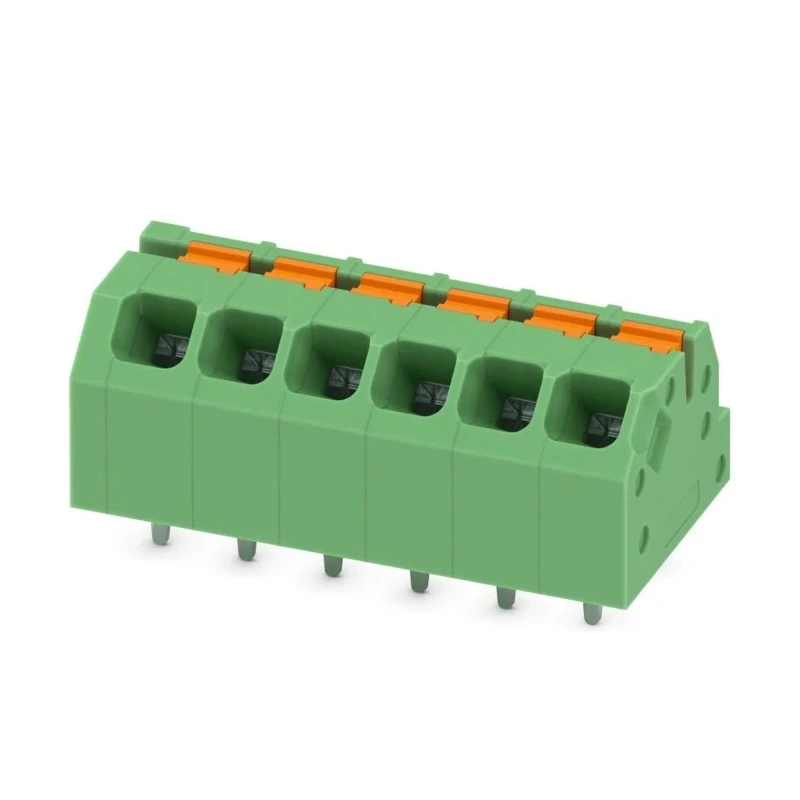

Phoenix Contact SPTAF 1/ 6-3.5-IL Series Straight Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch 1861975

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact SPTAF 1/ 6-3.5-IL Series Straight Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch 1861975

Name: Phoenix Contact SPTAF 1/ 6-3.5-IL Series Straight Wave Soldering Mount PCB Terminal Block, 6 Contacts, 3.5 mm Pitch 1861975
Brand: PHOENIX CONTACT
SKU: 151728



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	160V
Brand	Phoenix Contact
Orientation	Straight
Current	16A
Model	1861975
Mount Type	Wave Soldering Mount
Housing Material	Polyamide
Series	SPTAF 1/ 6-3.5-IL
Number of Rows	1
Pitch	3.5mm
Standards/Approvals	cULus Recognised, EU RoHS
Number of Contacts	6
PCB Terminal block, nominal current	16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 6, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green

Key Features

This product features a push-in spring connection method ensuring reliable conductor contact.
The terminal block is designed with a polyamide housing providing electrical insulation and durability.
It is oriented straight with a conductor/PCB connection direction of 45 degrees for efficient PCB layout.
The device complies with cULus Recognised and EU RoHS standards ensuring safety and environmental compliance.
Manufactured in Germany, ensuring high-quality engineering and materials.
Designed specifically for electronic circuit applications requiring a pitch of 3.5 mm and 6 connection points.

Product Description

Phoenix Contact 1861975 PCB Terminal Block, part of the SPTAF 1/ 6-3.5-IL Series, is a high-quality wave soldering mount connector designed for reliable and efficient PCB connections. It features 6 contacts with a nominal pitch of 3.5 mm, carrying a nominal current of 16 A and voltage rating of 160 V, making it suitable for a broad range of industrial electronics applications.

This terminal block employs an innovative push-in spring connection mechanism that enables quick and secure conductor insertion, minimizing installation time and enhancing connection stability under vibration and thermal cycling conditions. The straight orientation and 45-degree conductor/PCB connection direction optimize PCB space and wiring layout flexibility.

The housing is crafted from durable polyamide material, which ensures robust electrical insulation and resistance against heat generated during wave soldering processes. Its green color coding helps easy identification in complex assemblies.

Compliance with cULus Recognition and EU RoHS directives confirms that the product meets demanding safety and environmental standards, providing assurance for use in various industrial, electronic manufacturing, and control system contexts.

Made in Germany, this PCB terminal block stands for excellence in design, material quality, and manufacturing precision. It is ideal for applications in telecommunications, industrial automation, and power distribution boards.

This product features a push-in spring connection method ensuring reliable conductor contact. The terminal block is designed with a polyamide housing providing electrical insulation and durability. It is oriented straight with a conductor/PCB connection direction of 45 degrees for efficient PCB layout.

The device complies with cULus Recognised and EU RoHS standards ensuring safety and environmental compliance. Manufactured in Germany, ensuring high-quality engineering and materials. Designed specifically for electronic circuit applications requiring a pitch of 3.5 mm and 6 connection points.
