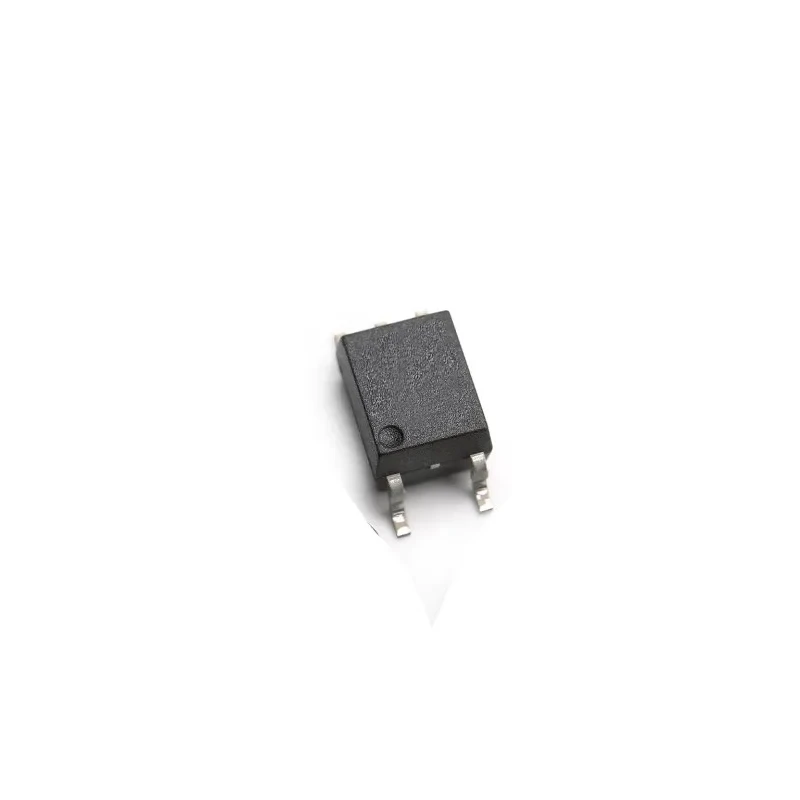

Broadcom AC/DC Input Optocoupler Surface Mount 5-Pin SO HCPL-M600-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-M600-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 15mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, IEC, EN, CSA |
| Maximum Forward Voltage | 1.85V |
| Number of Pins | 5 |
| Input Current Type | AC/DC |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Low Input Current Capability | 5 mA |
| Guaranteed ac and dc Performance over Temperature | -40oC to 85oC |
Key Features
- The device offers high common mode rejection and high-speed operation.
- It contains a GaAsP LED coupled with an integrated photon detector.
- The output is an open-collector Schottky-clamped transistor ensuring maximum AC and DC isolation.
- It supports a maximum forward voltage of 1.85V and input currents up to 15mA.
- Wide operating temperature range from -40°C to 85°C guarantees reliable performance.
- Compatible with infrared vapor phase reflow and wave soldering processes for surface mounting.
- Packaged in tape & reel format for automated assembly.
- Approved by UL, IEC, EN, and CSA standards ensuring safety and reliability.
Product Description
Broadcom HCPL-M600-500E AC/DC Input Optocoupler is a single channel, surface mount device housed in a miniature five-lead Small Outline (SO) package. Combining a GaAsP light emitting diode with an integrated high gain photon detector, this optocoupler provides robust AC and DC isolation between input and output circuits while maintaining TTL compatibility.
The output stage consists of an open-collector Schottky-clamped transistor offering high-speed switching with typical rise and fall times of 24ns and 10ns respectively, making it suitable for digital and logic gate isolation applications.
Designed to operate reliably over a temperature range of -40°C to +85°C, the device ensures performance consistency in demanding industrial, communication, automation, and electronic systems.
It supports input currents up to 15mA with a low input current capability of 5mA, addressing the needs for low power consumption in high-speed circuits. The maximum forward voltage is rated at 1.85V. Packaging in tape & reel format facilitates automated surface mount assembly compatible with infrared vapor phase reflow and wave soldering processes.
High common mode rejection and high speed digital isolation. Open-collector transistor output with Schottky clamp for enhanced switching performance. Wide operating temperature range from -40°C to 85°C. Surface mountable SO-5 package with a very small, low-profile JEDEC registered outline.
Compatible with infrared vapor phase reflow and wave soldering processes. 5-pin footprint optimized for space-saving PCB design. Approved to UL, IEC, EN, and CSA safety standards. Ideal for industrial, communication, instrumentation, and control system applications.
Designed for AC/DC input voltage types, providing versatile operation.
Broadcom optocouplers are widely used in industrial machines, electronic instrumentation, HVAC controls, and other applications requiring electrical isolation and noise immunity. The HCPL-M600-500E model ensures high reliability and efficient signal transfer for sensitive digital systems.
Explore additional Broadcom electronic components and Optocouplers on EnvMart for industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 15mA, with a low input current capability of 5mA.
It operates reliably over a temperature range of -40°C to +85°C, ensuring performance consistency in various environments.
This model features an open-collector Schottky-clamped transistor output, which enhances switching performance.
It is packaged in tape & reel format, facilitating automated surface mount assembly processes.
The typical rise time is 24ns, and the typical fall time is 10ns, making it suitable for high-speed applications.
This model is approved by UL, IEC, EN, and CSA safety standards, ensuring reliability and safety in its applications.
The maximum forward voltage for the HCPL-M600-500E is rated at 1.85V.
This optocoupler is designed for surface mounting, housed in a miniature five-lead Small Outline (SO) package.
It is a single-channel optocoupler, providing robust isolation between input and output circuits.
This model is ideal for industrial, communication, instrumentation, and control system applications requiring electrical isolation.
It supports both AC and DC input currents, providing versatile operation in various electronic systems.
The country of origin for this optocoupler is India.
