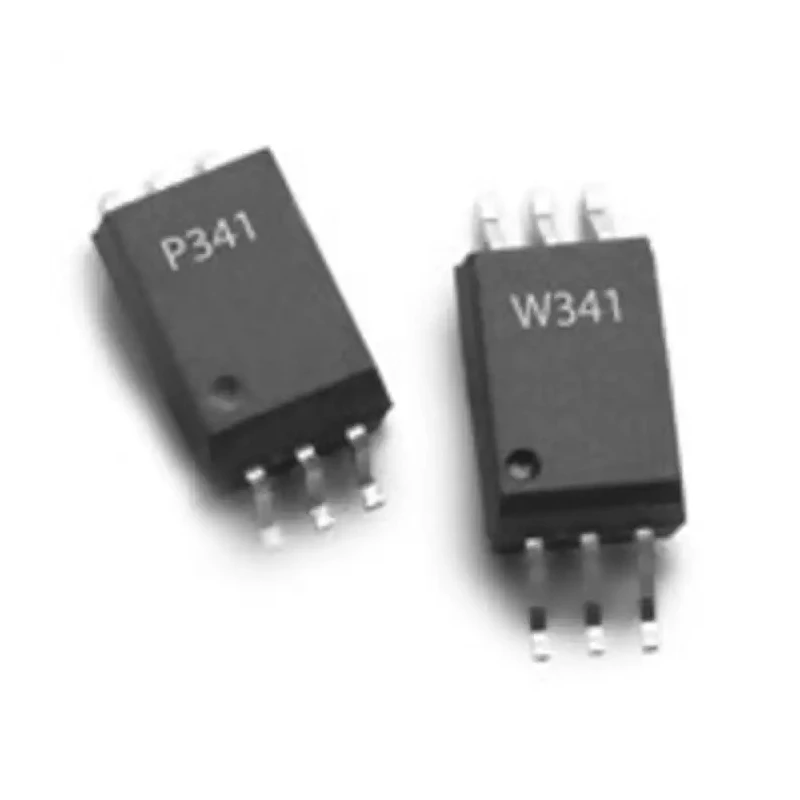

Broadcom ACPL-P341-500E Optocoupler Surface Mount 6-Pin SO Package 1 Channel 15 to 30 V Operating Voltage ACPL-P341-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | ACPL-P341-500E |
| Packaging | Tube or Tape and Reel |
| Mount Type | Surface |
| Series | ACPL |
| Maximum Operating Temperature | 105°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL 1577, CSA, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.95V |
| Number of Pins | 6 |
| Typical Rise Time | 43ns |
| Typical Fall Time | 500ns |
| Industrial temperature range | -40°C to 105°C |
| Wide Operating VCC Range | 15 to 30 V |
Key Features
- Operates within a wide VCC range of 15 to 30 volts.
- Single channel optocoupler with one LED coupled to IC output stage.
- Typical rise time of 43 nanoseconds ensures fast switching.
- Maximum forward voltage of 1.95 volts with 25 mA input current.
- Temperature range from -40°C to 105°C suits industrial applications.
- Complies with UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5 standards.
- Ideal for gate drive of power IGBTs and MOSFETs in motor control.
- Packaging includes tube or tape and reel for automated assembly.
Product Description
Broadcom ACPL-P341-500E is a high-performance optocoupler featuring a surface mount 6-pin SO package. This device incorporates an AlGaAs LED optically coupled to an integrated circuit with a power output stage. It is engineered specifically for gate drive applications requiring high isolation and fast switching.
The unit operates over a wide voltage range of 15 to 30 volts, supporting industrial temperature ranges from -40°C to 105°C, making it suitable for rigorous environments. The typical rise and fall times are 43 ns and 500 ns respectively, enabling precise timing control in inverter and motor control circuits.
The maximum forward voltage is rated at 1.95 V with a maximum input current of 25 mA. Its single channel design provides a reliable logic output, facilitating seamless integration with control electronics.
This optocoupler complies with stringent safety standards including UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5, ensuring dependable isolation and protection. Packaging options such as tube or tape and reel accommodate various manufacturing processes.
Broadcom ACPL-P341-500E is ideally used for driving power semiconductor devices like IGBTs and MOSFETs in industrial motor control inverters, power electronics, and other high voltage isolation applications.
Operates over 15 to 30 V VCC range. Supports industrial temperature environments from -40°C to 105°C. High isolation voltage rated at 5000 Vrms for safety. Fast switching times make it suitable for inverter systems. Complies with international standards for optocouplers.
Single channel device with 6-pin SO surface mount package. Packaging supports automated assembly lines. Designed for robust performance in power electronics applications. Logical output for system control compatibility.
This product is listed in the Optocoupler category, ideal for industrial, manufacturing, and electronic system integration projects. Explore more components from Broadcom and related optoelectronic devices at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a wide voltage range of 15 to 30 volts.
It supports an industrial temperature range from -40°C to 105°C, making it suitable for rigorous environments.
The typical rise time is 43 nanoseconds, ensuring fast switching capabilities.
It complies with UL 1577, CSA, and IEC/EN/DIN EN 60747-5-5 standards for safety and isolation.
The maximum forward voltage is rated at 1.95 volts with a maximum input current of 25 mA.
It features a single channel design, providing a reliable logic output.
It is available in packaging options of tube or tape and reel, accommodating various manufacturing processes.
The typical fall time is 500 nanoseconds, which contributes to its fast switching performance.
This optocoupler is designed for surface mount applications, specifically in a 6-pin SO package.
It is ideally used for driving power semiconductor devices like IGBTs and MOSFETs in industrial motor control inverters and power electronics.
It has a high isolation voltage rated at 5000 Vrms, ensuring safety in operation.
The country of origin for this product is India.
