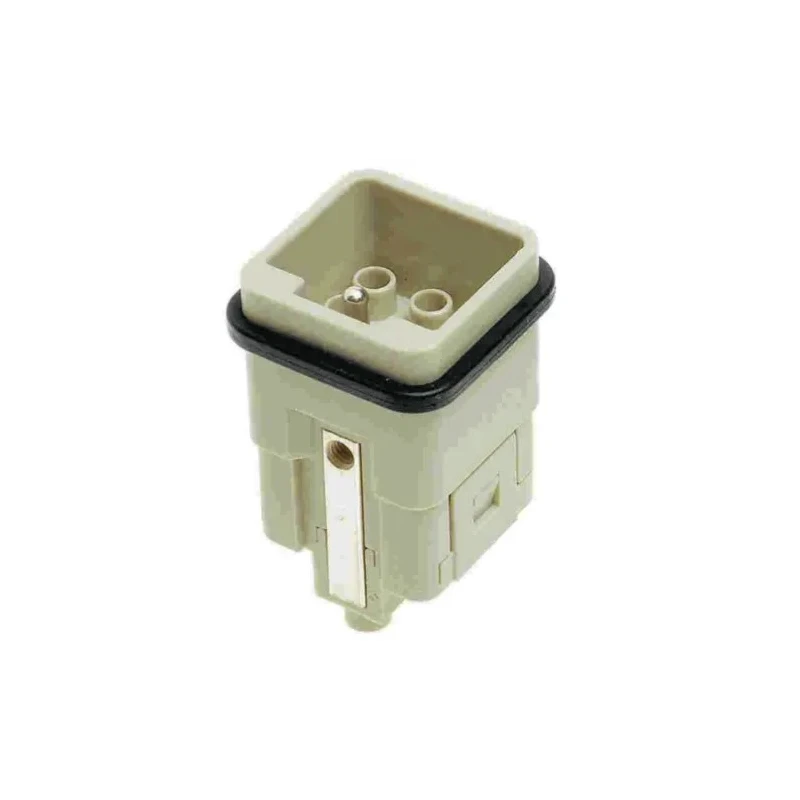

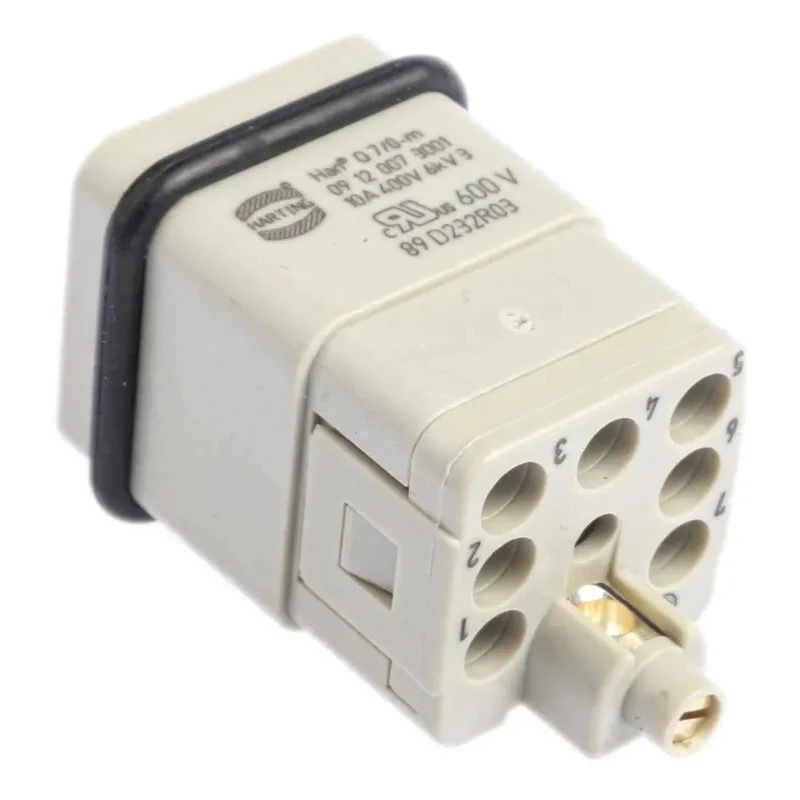

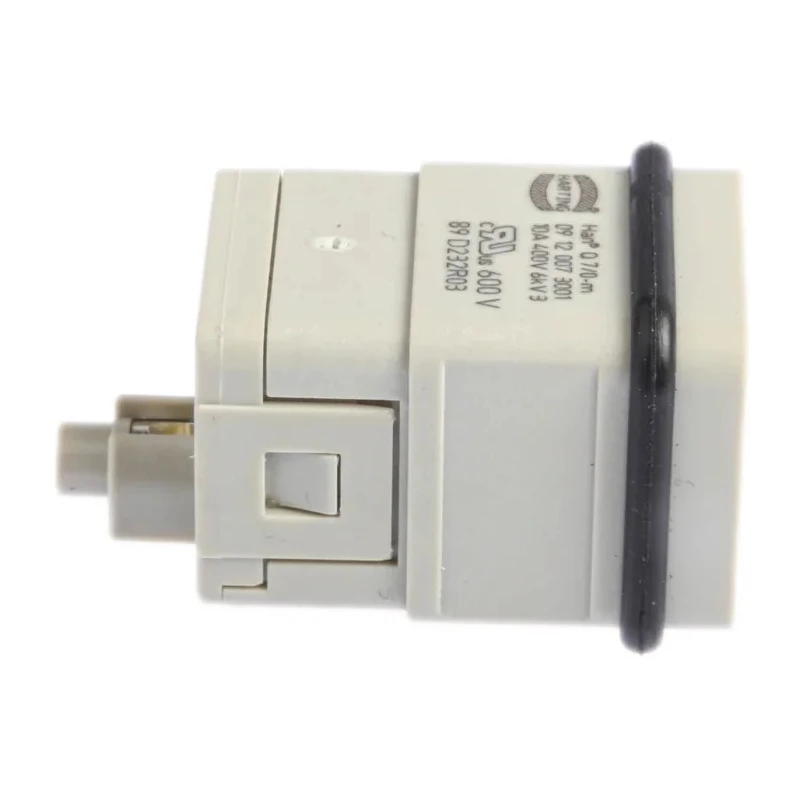

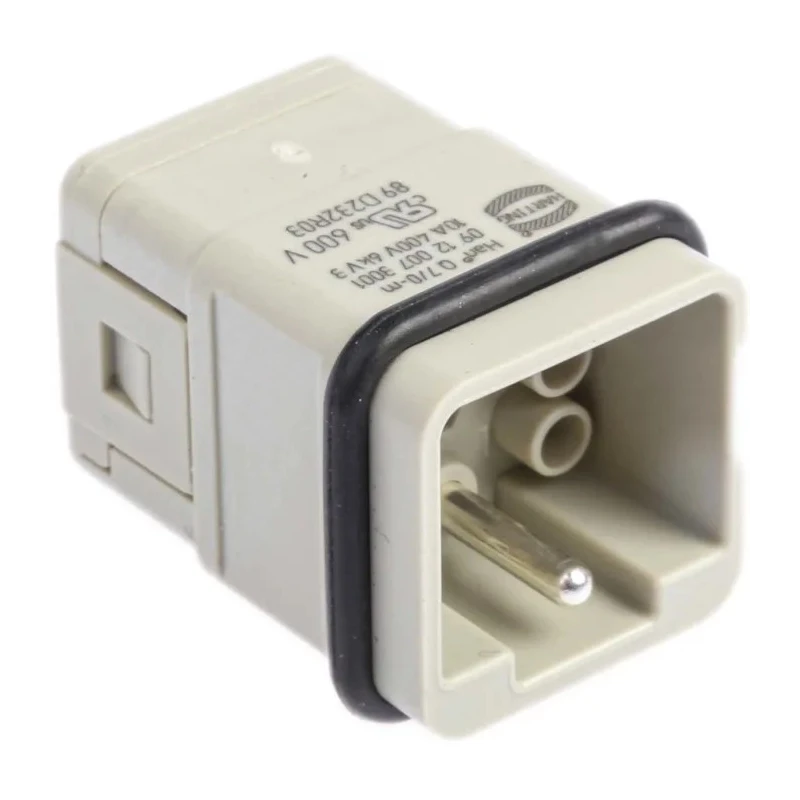

HARTING Heavy Duty Power Connector Insert, 10A, Han Q Series Male, 8 Contacts 09120073001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | Han Q |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Designed for industrial power connections requiring sealed multi-contact connectors.
- IP67 ingress protection suitable for wet and dusty environments.
- Copper alloy contacts with silver plating ensure durable conductivity and mechanical stability.
- Supports conductor wire sizes from 0.14 to 2.5 mm² for versatile cable applications.
- Cable mount type with straight orientation enables inline cable routing and strain relief.
- Complies with IEC 60664-1 insulation requirements for safe high-voltage operation.
- Eight poles arranged in two rows allow focused power distribution with an additional pole for flexibility.
Product Description
HARTING 09120073001 Heavy Duty Power Connector Insert is a cable-mounted male connector designed for secure and durable electrical connections in industrial environments. It belongs to the Han Q Series and features eight contacts arranged in two rows, delivering a current rating of 10A and voltage rating of 400V.
The high-quality copper alloy contacts are silver plated to minimize contact resistance and provide long-lasting mechanical robustness during repeated mating cycles. Its IP67 rating ensures protection against water ingress and dust, making it suitable for harsh indoor and outdoor applications.
This connector supports wire sizes ranging from 0.14 to 2.5 mm², accommodating a broad range of cable types in factory automation, control cabinets, industrial motors, and drive connections. The straight orientation and cable mounting design facilitate effective cable routing and strain relief, ensuring installation reliability.
Compliant with IEC 60664-1 standards, this heavy duty power connector provides appropriate insulation clearances and material properties necessary for safe and consistent industrial power distribution.
Typical applications include factory automation power links, motor drives, control systems requiring sealed cable entries, outdoor electrical installations exposed to environmental factors, and machine tools needing compact multi-contact power feeds.
Designed for sealed multi-contact power interfaces in industrial settings. Supports moderate power distribution at 10A and 400V ratings. Features robust silver plated copper alloy contacts for durability and conductivity.
Ensures environmental protection with IP67 ingress rating. Cable-mounted with straight orientation for easy inline cable routing. IEC 60664-1 compliant insulation coordination for safe operation. Compatible with conductor wire sizes from 0.14 to 2.5 mm².
Eight contact poles in two rows for flexible power layouts.
This HARTING Han Q Series connector insert is essential for numerous industrial, manufacturing, and electrical assembly applications requiring reliable power connections. Explore further industrial connector solutions and accessories in the Heavy Duty Power Connector Inserts category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert has a current rating of 10A.
It has a voltage rating of 400V.
This connector insert has an IP67 rating, providing protection against water and dust ingress.
It supports conductor wire sizes from 0.14 to 2.5 mm².
This model features eight contacts arranged in two rows.
The contacts are made of copper alloy and are silver plated to enhance conductivity.
It has a straight orientation, which facilitates inline cable routing.
It complies with IEC 60664-1 insulation requirements for safe high-voltage operation.
This connector uses a cable mount type design.
It is suitable for factory automation, control cabinets, and outdoor electrical installations.
The country of origin for this connector insert is India.
The pole format consists of 8 poles, allowing for flexible power layouts.
