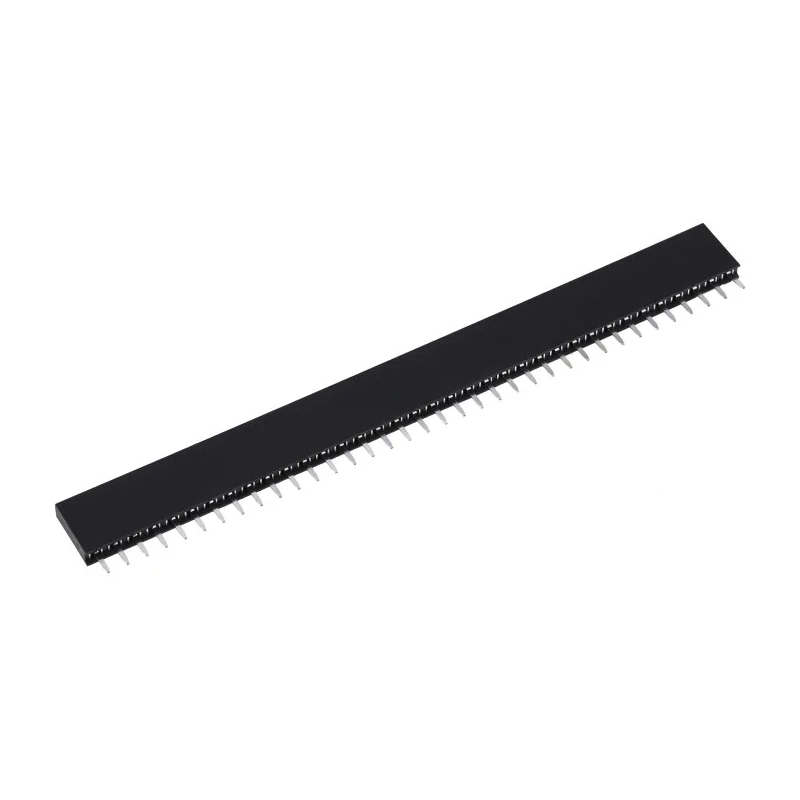

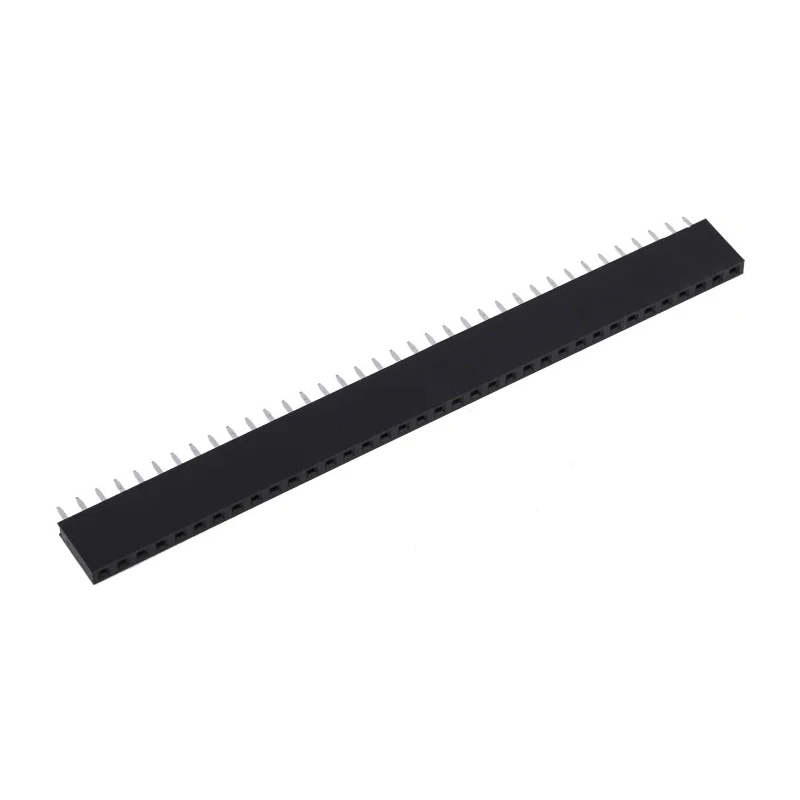

HARWIN M20 Series Straight Through Hole PCB Socket 36-Contact 1 Row 2.54 mm Pitch Solder M20-7823646
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7823646 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design suitable for high-density PCB applications.
- Constructed from high temperature nylon housing for durability.
- Dual beam bronze contacts plated with tin over nickel for reliable electrical connection.
- Supports currents up to 12A per contact and voltage rating of 1kV.
- Mount type is through hole with straight orientation for board-to-board connectivity.
- Operates reliably between -40°C and 105°C temperature range.
- Connector system designed for high mating cycles and durability.
Product Description
HARWIN M20-7823646 PCB Socket is a high-quality, straight through hole socket connector featuring 36 contacts in a single row with 2.54 mm pitch. Its robust nylon housing is UL94V-0 rated for high temperature tolerance, suitable for demanding industrial environments.
The connector incorporates dual beam bronze contacts plated with tin over nickel to provide enhanced electrical reliability and consistent performance over repeated mating cycles. Designed for board-to-board connections, it supports up to 12A current per contact and withstands voltages up to 1kV.
The through-hole mount and straight orientation facilitate secure soldered connections, making it ideal for applications requiring high density and mechanical strength such as embedded PCs, motherboards, and complex electronic systems.
Operating temperature ranges from -40°C to 105°C, ensuring suitability for various industrial, communication, consumer electronics, and control system environments. The M20 series is known for its compact design optimized for PCB density and height restrictions without compromising electrical performance.
Compact design suitable for high-density PCB applications. Constructed from high temperature nylon housing for durability. Dual beam bronze contacts plated with tin over nickel for reliable electrical connection. Supports currents up to 12A per contact and voltage rating of 1kV.
Mount type is through hole with straight orientation for board-to-board connectivity. Operates reliably between -40°C and 105°C temperature range. Connector system designed for high mating cycles and durability. PN: M20-7823646 from the M20 series ensuring industrial standard compliance.
This PCB socket is widely utilized in industrial monitoring equipment, communication devices, consumer electronics, and control drives. It meets industry expectations for durability and performance in electronic component assemblies.
Explore more connectors and PCB socket options in the Electronics Components category on EnvMart to find compatible parts and technical solutions tailored to your project's needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 12A per contact.
It has a voltage rating of 1kV, suitable for various electronic applications.
This socket uses a through hole mounting type, designed for secure soldered connections.
The contacts are spaced at a pitch of 2.54 mm.
It features a nylon housing and dual beam bronze contacts plated with tin over nickel.
The operating temperature range is from -40°C to 105°C, making it suitable for various environments.
This model has a total of 36 contacts arranged in a single row.
It has a straight orientation, designed for board-to-board connectivity.
The termination type for this model is solder, facilitating secure connections on PCBs.
This PCB socket is manufactured in the United Kingdom.
It is widely utilized in industrial monitoring equipment, communication devices, consumer electronics, and control drives.
The contact gender for this socket is female, designed for compatibility with male connectors.
