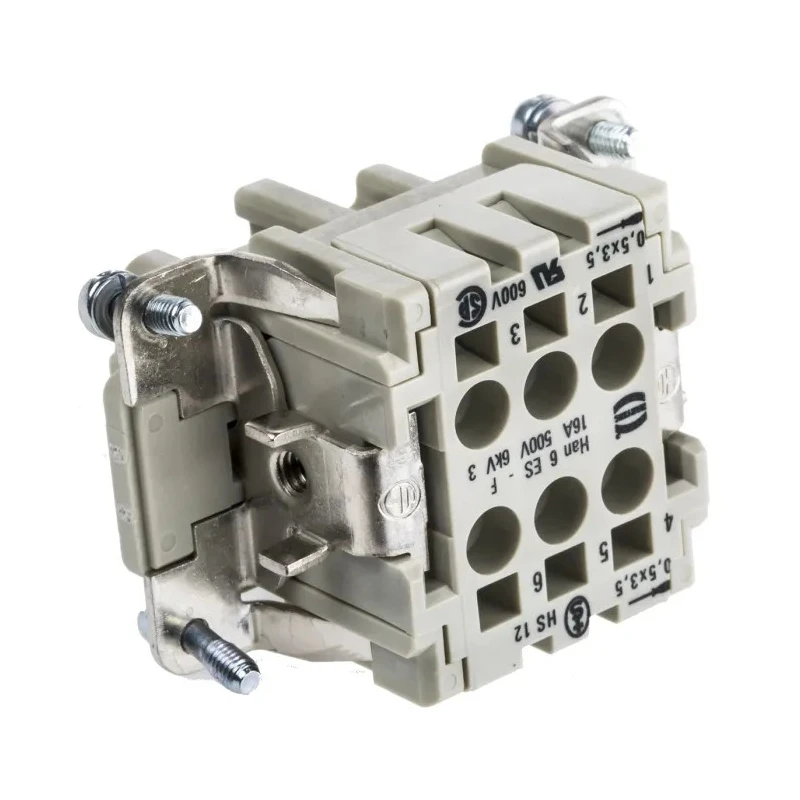

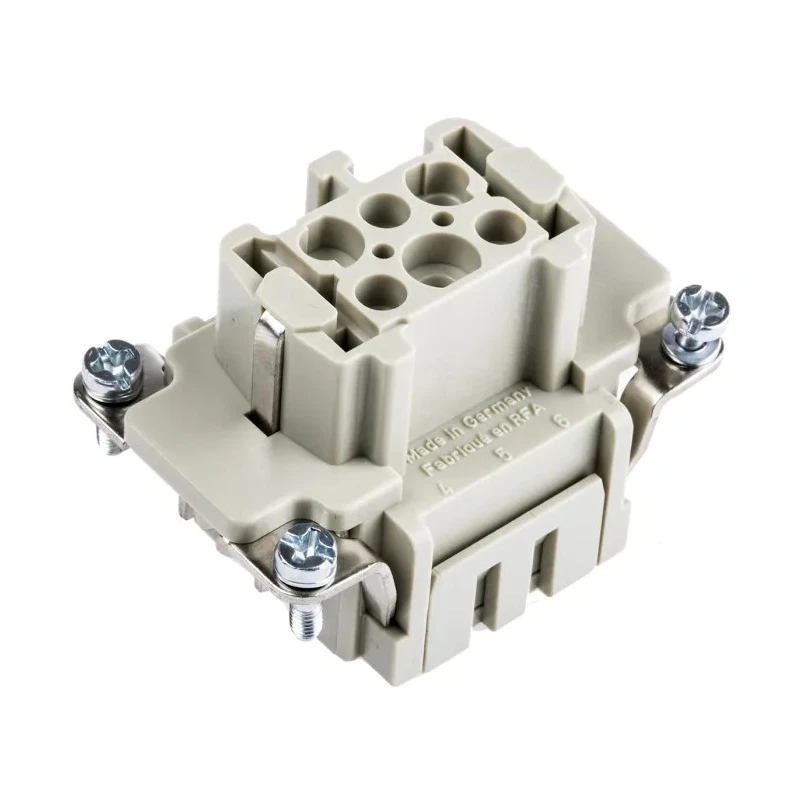

HARTING Heavy Duty Power Connector Insert 10A Han ES Series Female 6 Contacts 500V 09330062716
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | Han ES |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 7 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- This insert belongs to the Han ES series, known for robust cage clamp contact inserts.
- It features a female connector with 6 contacts arranged in 2 rows and 7 poles.
- Contact material is copper alloy plated with silver for excellent conductivity and corrosion resistance.
- Suitable for wires with cross-sectional area from 0.14 mm² to 2.5 mm² without requiring tooling.
- Designed for cable mounting with straight orientation to ensure secure wire termination.
- Ideal for heavy duty power applications requiring simple and quick connection.
- Manufactured in Germany, adhering to high-quality standards.
- Not to be mated or unmated under electrical load to avoid connection damage.
Product Description
HARTING 09330062716 is a Heavy Duty Power Connector Insert from the Han ES series, rated for 10A current and 500V voltage, designed for industrial and heavy duty power connectivity requirements.
This connector insert utilizes robust cage clamp contact technology, enabling easy wire termination for wire sizes ranging from 0.14 mm² to 2.5 mm² without the need for special tools. The silver-plated copper alloy contacts enhance conductivity while resisting corrosion, ensuring reliable electrical performance over extended use.
The insert contains 6 female contacts arranged in 2 rows within a 7-pole configuration, intended for cable mounting with straight orientation. It provides secure and rapid connection solutions in demanding environments such as manufacturing, industrial automation, and power distribution systems.
Designed and manufactured in Germany, this component complies with stringent quality requirements although no approvals like UL or CSA are specified. It is critical not to mate or unmate the connector while under electrical load. Polarisation should be used when connectors are arranged in lines to prevent incorrect connections.
This insert belongs to the Han ES series, featuring cage clamp contact technology. The insert is rated for 10A current and supports up to 500V operating voltage. It supports wire cross sections from 0.14 mm² to 2.5 mm² without tooling required.
Silver-plated copper alloy contacts ensure durability and excellent electrical conductivity. Cable mount type with straight contact orientation for secure connections. The connector has 6 female contacts arranged in 2 rows with a 7-pole format.
Manufactured in Germany, providing assured quality and performance. Can be used in electronics, power connectors, industrial manufacturing, and automation applications.
This part enhances reliable power connectivity in demanding industrial or commercial settings. For related accessories such as hoods and housings refer to the Han ES series compatibility charts. Explore more heavy duty connector solutions and components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 10A and a voltage of 500V.
It features 6 female contacts arranged in 2 rows within a 7-pole configuration.
It supports wire sizes ranging from 0.14 mm² to 2.5 mm² without requiring special tooling for termination.
The contacts are made of copper alloy and are plated with silver for enhanced conductivity and corrosion resistance.
It is designed for cable mounting with a straight orientation to ensure secure wire termination.
This insert belongs to the Han ES series, known for its robust cage clamp contact technology.
It is manufactured in Germany, adhering to high-quality standards.
It is critical not to mate or unmate the connector while under electrical load to avoid connection damage.
It is suitable for heavy duty power applications, including industrial manufacturing and power distribution systems.
The contacts are oriented straight for secure and reliable connections.
This connector insert contains a total of 6 female contacts.
Polarisation should be used when connectors are arranged in lines to prevent incorrect connections.
