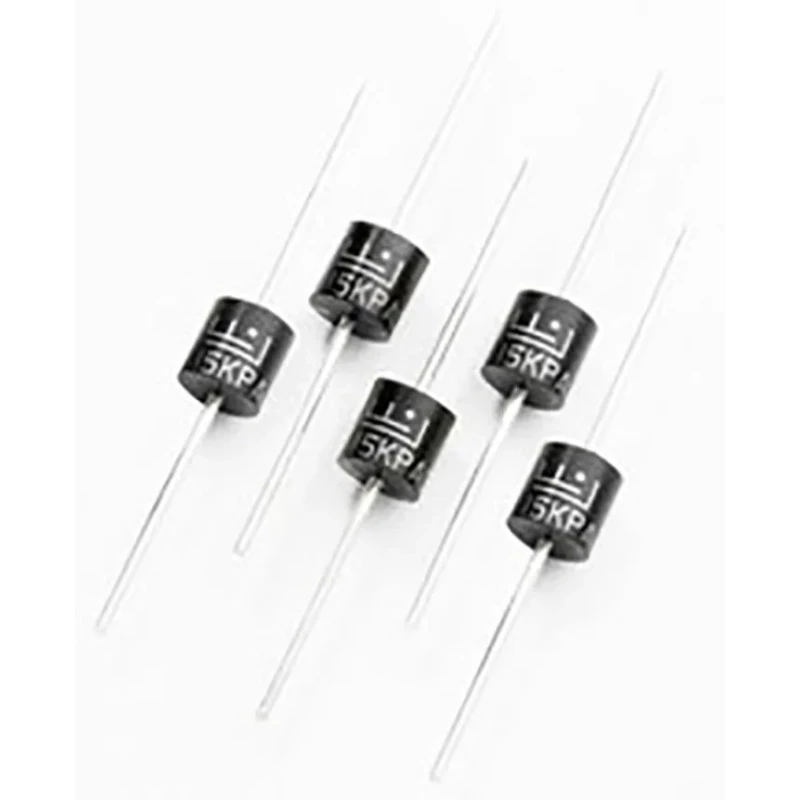

Littelfuse 1-Element Bi-Directional TVS Diode, 15 kW Peak Pulse Power, 2-Pin P600 Package, Model 15KPA36CA

Littelfuse 15KPA36CA is a high-performance 1-element bi-directional TVS (Transient Voltage Suppressor) diode designed to protect sensitive electronic components from voltage transients caused by lightning and other transient voltage events. This product offers a peak pulse power dissipation of 15 kW, making it suitable for demanding industrial, electronic, and power protection applications.

The diode features a single-element configuration and operates bi-directionally, providing effective clamping voltage of 59.8V to suppress surges. Its typical minimum breakdown voltage is 40.2V, with a maximum reverse stand-off voltage rating of 36V. It safely handles peak pulse currents up to 252.5A and maintains a low maximum reverse leakage current of just 2μA above 36V, ensuring minimal impact on circuit operation.

Encased in a P600 package suitable for through-hole mountings, the device has a length and diameter of 9.1 mm each, enabling easy installation on various printed circuit boards. The glass passivated chip junction construction ensures stable performance and longevity under harsh electrical conditions.

This TVS Diode operates reliably in a wide temperature range from -55°C to 175°C, ideal for use in industrial, electronic, and power supply environments. Its fast response time, typically less than 1.0 picosecond to minimum breakdown voltage, offers excellent transient protection for sensitive electronics.

Additional features include halogen-free composition for environmental safety and a guaranteed high-temperature soldering rating up to 265°C for 10 seconds with a 9.5 mm lead length, supporting robust manufacturing and assembly processes.

Applications of the Littelfuse 15KPA36CA include semiconductor protection, power supply circuitry safeguarding, industrial automation, telecommunications, and automotive electronics, where transient voltage suppression is critical for device longevity and system reliability.

Features single diode configuration for fast and reliable transient voltage suppression. Bi-directional operation suitable for protecting circuits from voltage spikes. Supports a minimum breakdown voltage of 40.2V and maximum reverse stand-off voltage of 36V.

Capable of handling peak pulse current up to 252.5A with excellent clamping voltage of 59.8V. Constructed with a glass passivated chip junction to ensure long-term reliability and stable performance. Operates effectively within temperature range from -55°C to 175°C for industrial environments.

Designed for through-hole mounting with a P600 package featuring 9.1 mm length and diameter. Provides electrostatic discharge (ESD) protection and is halogen-free for environmental safety. High temperature soldering guaranteed at 265°C for 10 seconds with lead length of 9.5 mm.

Typical response time less than 1.0 picosecond from 0 Volts to minimum breakdown voltage. Explore our comprehensive semiconductor collection for advanced transient voltage suppressors and related components on EnvMart.
