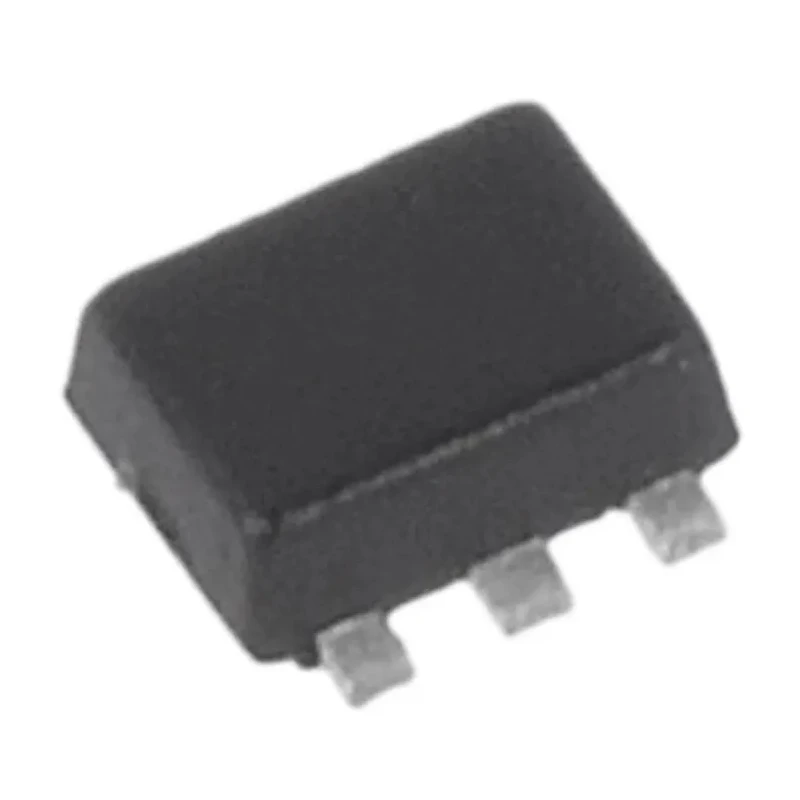

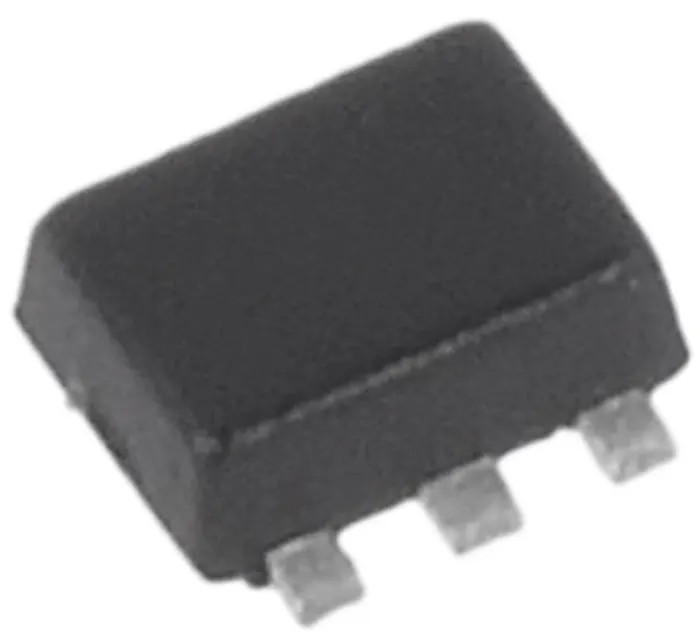

ROHM Bipolar Transistor NPN + PNP 100 mA, 150 mW Power Dissipation, 6-Pin SOT-563 Package EMD53T2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM Bipolar Transistor NPN + PNP 100 mA, 150 mW Power Dissipation, 6-Pin SOT-563 Package EMD53T2R

Name: ROHM Bipolar Transistor NPN + PNP 100 mA, 150 mW Power Dissipation, 6-Pin SOT-563 Package EMD53T2R
Brand: ROHM
SKU: 150870
Price: 0.1 USD
Availability: InStock



Category Bipolar Transistors Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.55mm
Length	1.7mm
Model	EMD53T2R
Width	1.7mm
Mount Type	Surface
Series	EMD53
Package Type	SOT-563
Minimum Operating Temperature	150°C
Digital Multimeter	Handy Type
Pin Count	6
Minimum DC Current Gain hFE	35
Transistor Polarity	NPN + PNP
Maximum Power Dissipation Pd	150mW
Maximum DC Collector Current Idc	100mA
Maximum Transition Frequency ft	250MHz
Motor Control	Brushless DC

Key Features

Supports 150 mW maximum power dissipation.
Minimum DC current gain of 35 ensures efficient switching.
High transition frequency up to 250 MHz suitable for high-speed applications.
Wide operating temperature range from -150°C to +150°C.
Lead-free construction compliant with environmental standards.
Independent transistor elements reduce interface complexity.
Surface mount package optimizes mounting cost and board space.
Ideal for motor control, digital multimeters, and embedded PC applications.

Product Description

ROHM EMD53T2R is a bipolar transistor integrating both NPN and PNP transistor elements within a compact 6-pin SOT-563 surface mount package. It supports a maximum DC collector current of 100 mA and dissipates up to 150 mW of power, making it suitable for low-power switching and amplification in electronic circuits.

The transistor exhibits a minimum DC current gain (hFE) of 35 and a maximum transition frequency (ft) of 250 MHz, allowing it to operate effectively in high-frequency signal environments. Its compact size, measuring 1.7 mm in length and width and 0.55 mm in height, facilitates dense PCB layouts and cost-efficient mounting.

Designed for surface mount technology, the independent transistor elements eliminate interface challenges and reduce mounting costs and area. Constructed with lead-free materials, it supports environmentally safe manufacturing standards.

This device is ideal for use in portable data terminals, coin processing machines, digital multimeters (handy and bench types), brushless DC motor control, programmable logic controllers (PLC), AC servo motors, network attached storage devices, DVR/DVS systems, stepper motor control, POS systems, smart meters, embedded PCs, surveillance cameras, and industrial machine vision cameras, among others.

With an extended operating temperature range from -150°C to +150°C and no automotive certification, the EMD53T2R provides versatile application across various industrial, commercial, and consumer electronic devices requiring compact, efficient bipolar transistors.

Supports 150 mW maximum power dissipation. Max collector current rated at 100 mA. Operational transition frequency up to 250 MHz. Compact 6-pin SOT-563 surface mount package. Lead-free design for environmental compliance.

Independent transistor elements for improved reliability. Wide operating temperature range from -150°C to +150°C. Suitable for various industrial and electronic control applications. Explore ROHM products and discover cutting-edge Bipolar Transistors at EnvMart, your trusted source for semiconductor components.
