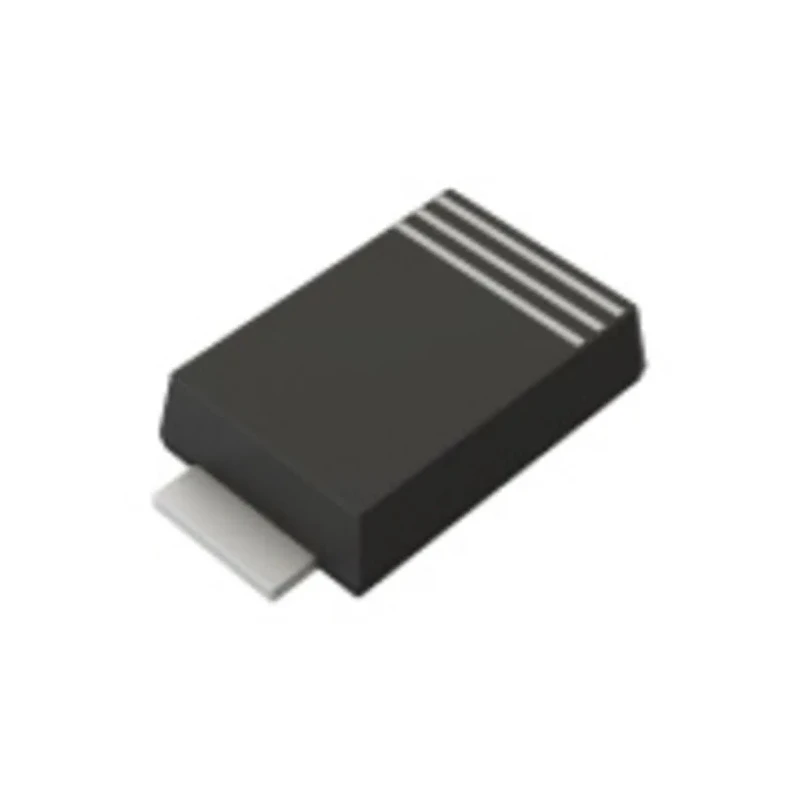

ROHM Zener Diode 33 V Single 1 W Surface Mount SOD-128 Diode Voltage Regulator PDZVTR33B
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ROHM |
| Height | 2.7mm |
| Length | 4.84mm |
| Model | PDZVTR33B |
| Width | 1.05mm |
| Mount Type | Surface |
| Series | PDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 33V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 18Ω |
Key Features
- Compact small mold SOD-128 package designed for surface mounting applications.
- Provides stable voltage regulation with low maximum reverse leakage current at 10 μA.
- Maximum power dissipation rating of 1 watt ensures effective energy handling in compact circuits.
- Wide operating temperature range from -55°C to 150°C for reliable performance in harsh conditions.
- Test current at 10 mA with maximum zener impedance of 18 Ω for precise regulation.
- Compliant with RoHS directives and Automotive Standard AEC-Q101 for quality assurance.
- Pin count of 2 facilitates straightforward integration into electronic designs.
Product Description
ROHM PDZVTR33B is a Zener Diode designed for voltage regulation in electronic circuits, featuring a nominal zener voltage of 33 V and 1 watt maximum power dissipation. Packaged in a compact SOD-128 surface mount type, this single-element diode offers high reliability and excellent temperature tolerance, suitable for automotive and industrial applications requiring stable voltage references.
The diode’s low maximum reverse leakage current of 10 μA ensures minimal power loss and leakage during operation. It operates effectively across a wide temperature range from -55°C to 150°C, making it ideal for demanding environmental conditions. With a maximum zener impedance of 18 Ω at a test current of 10 mA, the PDZVTR33B delivers precise voltage regulation performance.
This component complies with RoHS standards and the automotive quality standard AEC-Q101, supporting use in automotive electronics and other high-reliability fields. Its small mold SOD-128 package measures 4.84 mm in length, 2.7 mm in height, and 1.05 mm in width, allowing compact circuit board layouts without compromising performance.
Typical applications include voltage regulation, voltage reference in power supplies, and protecting sensitive electronics by stabilizing voltage in embedded systems and industrial devices. The 2-pin design simplifies integration into surface-mount PCBs, assisting designers in efficient layout and assembly processes.
Compact small mold SOD-128 package designed for surface mounting applications. Provides stable voltage regulation with low maximum reverse leakage current at 10 μA. Maximum power dissipation rating of 1 watt ensures effective energy handling in compact circuits.
Wide operating temperature range from -55°C to 150°C for reliable performance in harsh conditions. Test current at 10 mA with maximum zener impedance of 18 Ω for precise regulation. Compliant with RoHS directives and Automotive Standard AEC-Q101 for quality assurance.
Dimensions: length 4.84 mm, height 2.7 mm, width 1.05 mm for compact PCB footprints. Pin count of 2 facilitates straightforward integration into electronic designs.
ROHM’s PDZVTR33B Zener Diode is ideal for electronic components, semiconductor, automotive electronics, and industrial voltage regulation applications. Explore more products within the Zener Diode category for diverse power regulation solutions.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this model is 33 V, making it suitable for voltage regulation applications.
This diode has a maximum power dissipation rating of 1 watt, ensuring effective energy handling in circuits.
It operates effectively across a wide temperature range from -55°C to 150°C, suitable for harsh environmental conditions.
The maximum reverse leakage current is 10 μA, which helps minimize power loss during operation.
The SOD-128 package measures 4.84 mm in length, 2.7 mm in height, and 1.05 mm in width, allowing for compact PCB layouts.
This model features a 2-pin design, facilitating straightforward integration into electronic designs.
The maximum zener impedance is 18 Ω at a test current of 10 mA, providing precise voltage regulation performance.
Yes, it complies with RoHS directives and the automotive quality standard AEC-Q101 for quality assurance.
This diode is designed for surface mounting applications, specifically in a compact SOD-128 package.
Typical applications include voltage regulation, voltage reference in power supplies, and protecting sensitive electronics.
The country of origin for this zener diode is Japan.
The diode configuration is a single element per chip, designed for specific voltage regulation tasks.
