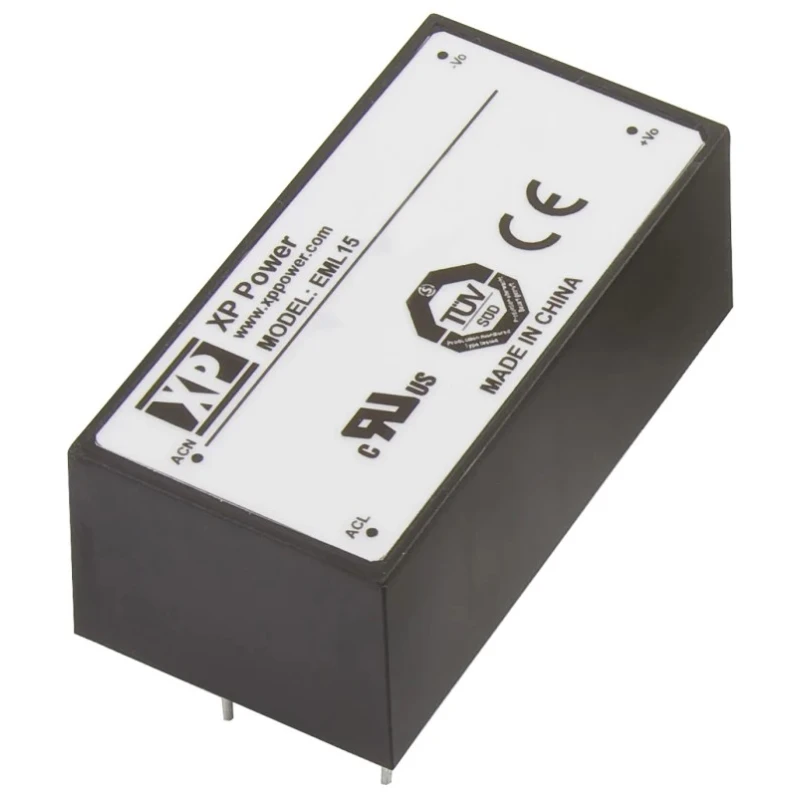

XP Power Switching Power Supply 24V DC 15W PCB Mount Medical Grade EML15US24-E

XP Power EML15US24-E switching power supply is a high-quality AC-DC single output power supply offering 24V DC voltage and 15W output power, specially designed for demanding medical applications.

This PCB mount power supply is compact with dimensions of 65mm length, 33.3mm width, and 24.4mm depth, making it suitable for equipment with space constraints. It operates over a wide input voltage range from 85V AC up to a maximum of 264V AC, ensuring stable performance.

The EML15US24-E is designed to comply with stringent medical safety standards such as ANSI/AAMI ES 60601-1 and IEC 60601-1, making it suitable for Class B equipment with both conducted and radiated emissions controlled. This compliance ensures safety and reliability in medical and industrial environments.

It features a single output providing a maximum current of 630mA and maintains an efficiency of 82%, reducing energy loss during operation. The power supply can operate in ambient temperatures ranging from -20°C to 70°C, suitable for a broad range of use conditions.

The unit is built with a Class II design and provides a peak load capability of 130% for 30 seconds, adding robustness against transient loads. Mechanical options include open frame and encapsulated styles, enhancing its versatility for various applications.

This power supply finds use in industrial machines, laboratory instruments, medical devices, and other applications where reliable DC power output with medical certification is critical.

This power supply supports a maximum input voltage of 264V AC and minimum input voltage of 85V AC. It offers a single output with a maximum output current of 630mA. Designed for PCB mounting with compact dimensions of 65mm length, 33.3mm width, and 24.4mm depth.

Operates efficiently with an efficiency rating of 82% across a temperature range of -20°C to 70°C. Meets worldwide medical safety standards including ANSI/AAMI ES 60601-1 and IEC 60601-1. Features Class II design with a peak load capability of 130% for 30 seconds.

Its open frame and encapsulated design ensure durability and versatility in various industrial and medical environments. Explore more power supplies from XP Power within EnvMart for dependable electronic component solutions.
