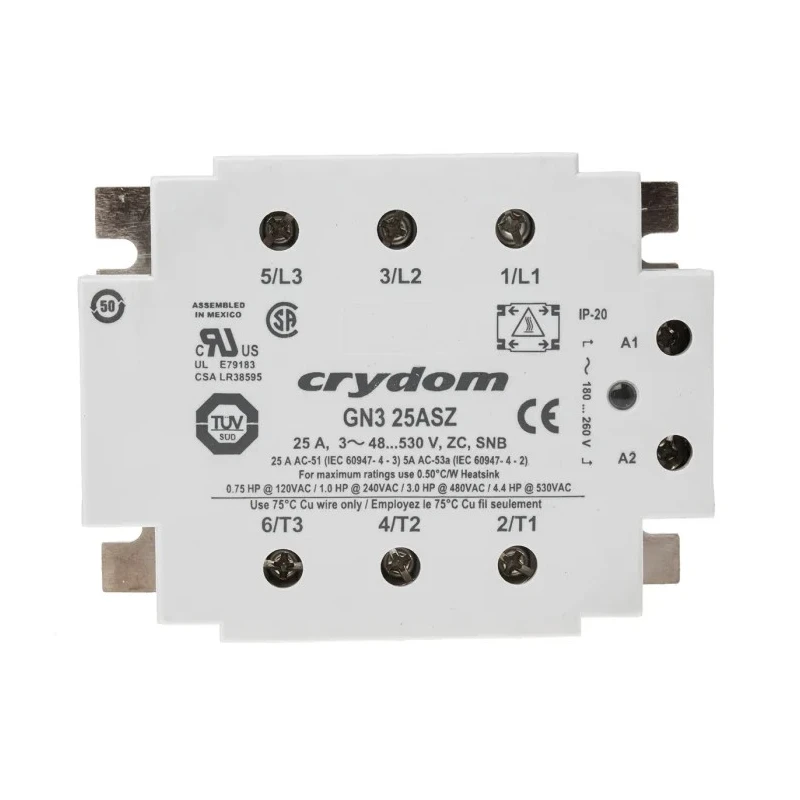

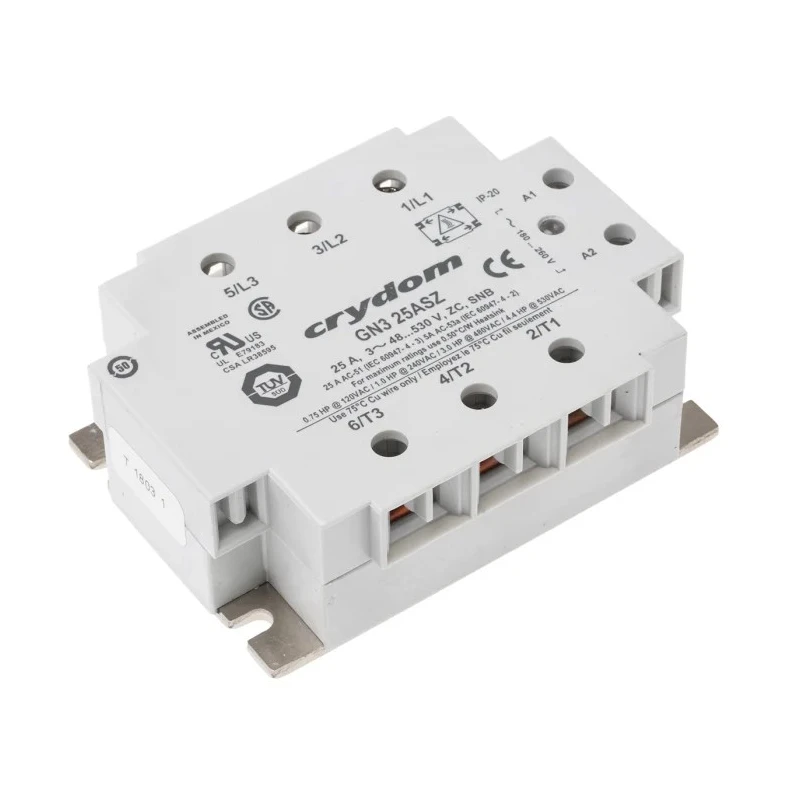

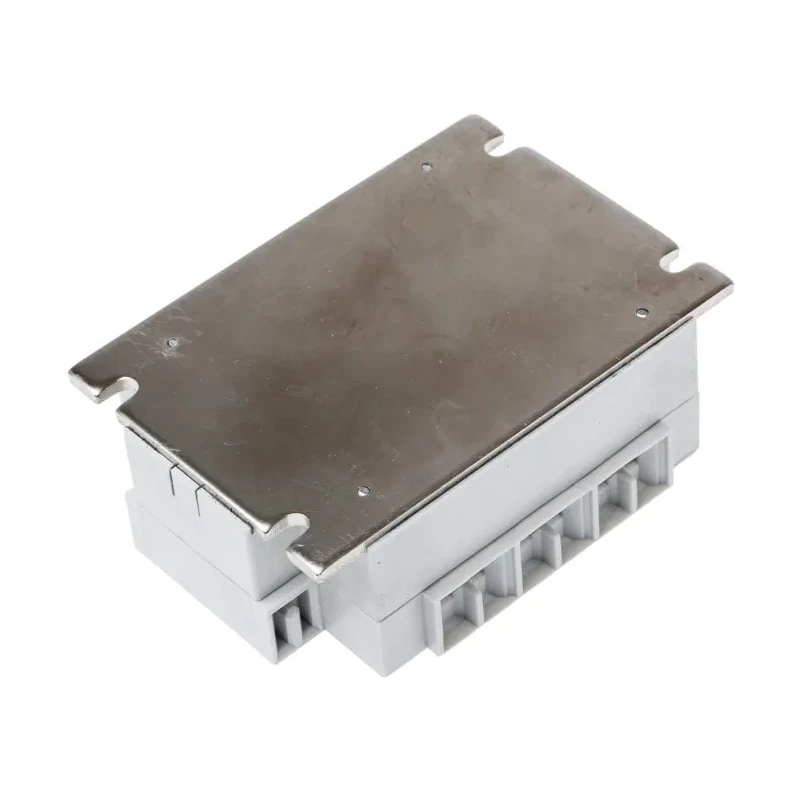

Crydom GN3 Series Solid State Relay 25 A Load 600 V AC Load 260 V AC Control GN325ASZ

Crydom GN3 Series Solid State Relay model GN325ASZ is a high-performance panel mount relay designed for industrial applications requiring reliable AC load switching. It supports a maximum load current of 25 Amps and can handle load voltages up to 600 V AC, controlled by a 260 V AC maximum control voltage input. This solid state relay features zero voltage turn-on switching to minimize switching transients and reduce electrical noise during operation.

The relay includes screw terminals for secure connection and supports operating temperatures from -40°C to 80°C, making it suitable for harsh environments. With an off-state leakage current of just 0.06 mArms and an 8 pF capacitance, it offers excellent performance for sensitive electrical circuits. The device incorporates an LED input status indicator for easy diagnostics and has built-in transient protection for enhanced longevity.

Constructed with direct bond copper substrate technology, the GN325ASZ offers superior thermal performance and durability for demanding industrial, laboratory, HVAC, manufacturing, and automation control systems. This solid state relay excels in applications requiring precise, reliable switching of AC loads with minimal mechanical wear.

Its compact dimensions of approximately 101.3 mm length and 79.7 mm height enable efficient panel installation. The switch function is zero voltage turn-on, and the output type is triac, ensuring smooth AC load control. This relay is RoHS and CE compliant, affirming its manufacturing quality and environmental standards.

Ideal for use in electrical control panels and automation systems, this Crydom GN3 Series Solid State Relay supports various industrial use cases, such as motor controls, heating systems, and lighting controls, providing stable and maintenance-free operation.

Supports a maximum load current of 25 Amps for heavy-duty applications. Panel mount design simplifies integration into control panels. Operates at maximum load voltage up to 600 V AC. Control voltage range between 180 V AC minimum and 260 V AC maximum ensures compatibility.

Equipped with zero voltage turn-on switching to optimize switching performance. Screw terminal type allows secure and easy wiring connections. Operating temperature range from -40°C to 80°C suits demanding environments. Features low off-state leakage current of 0.06 mArms for energy efficiency.

Includes an LED input status indicator for operational feedback. Built-in transient protection enhances device durability. Uses a triac output type for AC load switching applications. Suitable for industrial automation, HVAC, manufacturing, and electrical control systems.
