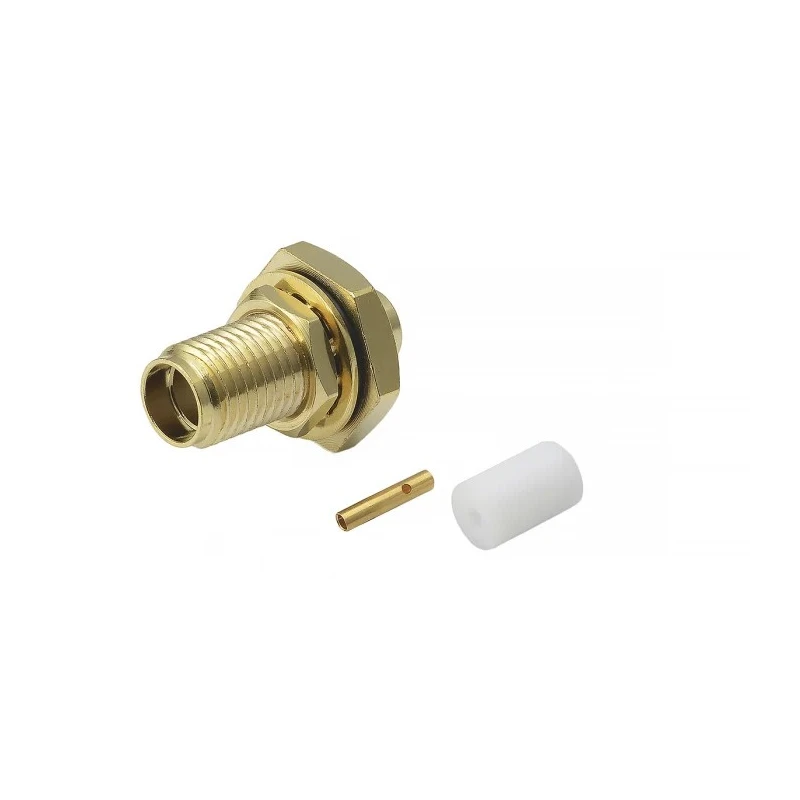

RS PRO Coaxial Connector Panel Mount Male SMA 50 Ω Straight Body Solder 170-6941
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 170-6941 |
| Mount Type | Panel Mount |
| Operating Frequency | 26.5GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG402/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Operates at frequencies up to 26.5 GHz for high-speed signal transfer.
- Gold plating on body and contacts ensures excellent conductivity and corrosion resistance.
- Designed for panel mounting with a bulkhead style installation.
- Suitable for RG402/U cables with a standard size interface.
- Operates reliably across a wide temperature range from -65°C to 165°C.
- Contact is constructed from beryllium copper for durability and strength.
- Standard SMA connector type with male polarity and straight orientation.
- Termination method is solder for secure electrical connection.
Product Description
RS PRO 170-6941 represents a high-quality Panel Mount Male SMA Coaxial Connector designed for demanding electronic and RF applications. This product exhibits a straight body form with solder termination, making it ideal for bulkhead mounting setups in professional environments.
The connector supports an operating frequency up to 26.5 GHz, providing high-performance signal integrity suitable for RF coaxial cabling such as RG402/U (UT.085"). Its 50 Ω impedance aligns with industry standards for RF transmission, ensuring minimal signal loss and reflection.
Constructed with a gold-plated body and contacts made of beryllium copper, the connector offers excellent electrical performance and corrosion resistance, enhancing longevity and reliability. The connector is built to withstand challenging environments with an operating temperature range from -65°C to 165°C.
This SMA series connector features male polarity and straight orientation, facilitating straightforward and secure installations on panels. Its solder termination method ensures a robust and reliable electrical connection to the cable.
Designed to meet professional requirements, the RS PRO 170-6941 connector can be used in various industrial, laboratory, manufacturing, and electronic test & measurement applications where high-frequency coaxial transmission is essential.
Operates at frequencies up to 26.5 GHz for high-speed signal transfer. Gold plating on body and contacts ensures excellent conductivity and corrosion resistance. Designed for panel mounting with a bulkhead style installation.
Supports RG402/U (UT.085") coaxial cables with standard size interface. Reliable performance from -65°C to 165°C operating temperature range. Beryllium copper contact material enhances durability and conductivity. Male gender connector with straight orientation for efficient connections.
Solder termination for secure and permanent cable attachment. Voltage rated up to 500 volts, suitable for multiple industrial applications.
The RS PRO 170-6941 is an excellent choice for professionals requiring dependable, precision Coaxial Connectors within Electronics & Electricals sectors. Browse the extensive catalog of RS PRO components at EnvMart for compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 170-6941 coaxial connector operates at a maximum frequency of 26.5 GHz, making it suitable for high-speed signal transfer applications.
This model is compatible with RG402/U coaxial cables, which have a standard size interface for reliable connections.
The connector operates reliably within a temperature range from -65°C to 165°C, allowing it to function in various environmental conditions.
This coaxial connector has an impedance of 50 Ω, which aligns with industry standards for RF transmission.
The connector features a gold-plated body and contacts made from beryllium copper, which enhances electrical performance and corrosion resistance.
The RS PRO 170-6941 uses a solder termination method, ensuring a secure and permanent electrical connection to the cable.
This model has a straight orientation, which facilitates straightforward installations on panels.
The RS PRO 170-6941 features male polarity, making it a male connector type.
This connector complies with ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007) standards, ensuring it meets industry requirements.
The connector is designed for panel mounting with a bulkhead style installation, suitable for professional environments.
The RS PRO 170-6941 is classified as a standard size connector, ensuring compatibility with standard interfaces.
The RS PRO 170-6941 is manufactured in Taiwan, which is noted in its country of origin.
