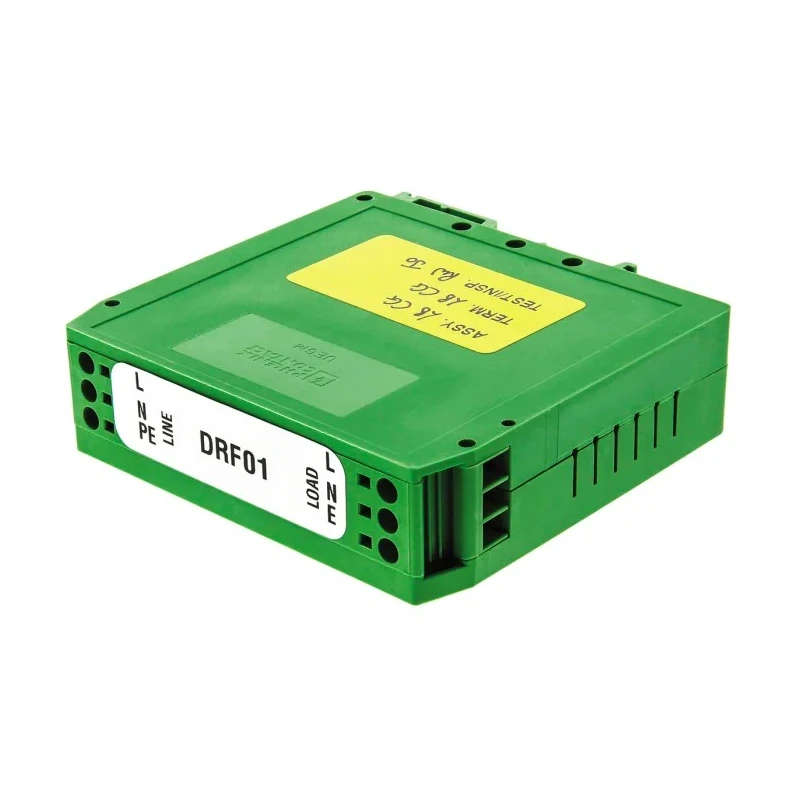

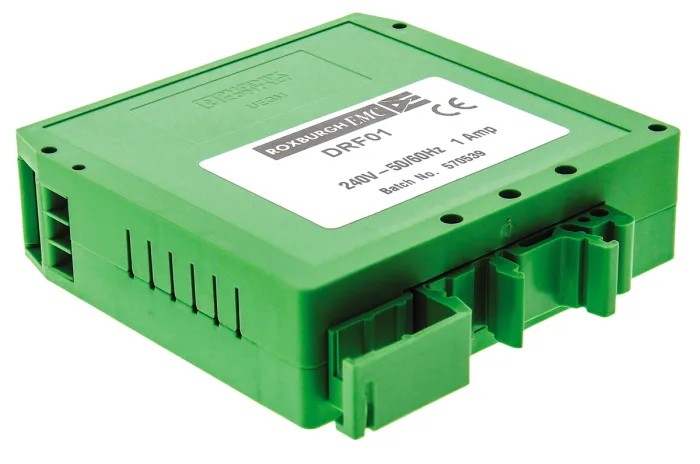

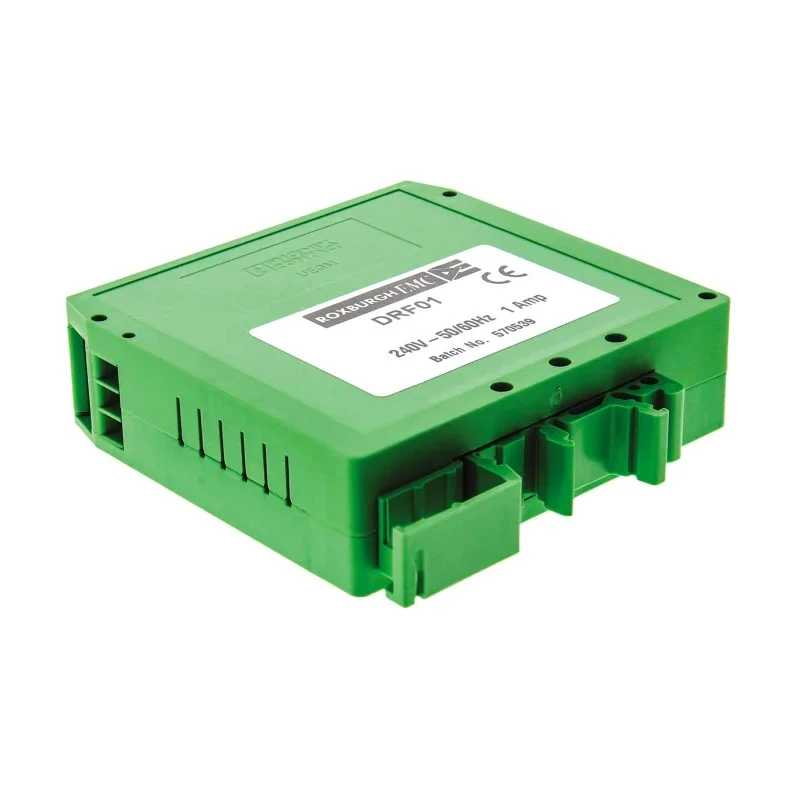

Roxburgh EMC DIN Rail RFI Filter, 1 Phase, Screw Termination, 250V AC 440Hz, 1A Current, 1μF Capacitance, Model DRF01

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC DIN Rail RFI Filter, 1 Phase, Screw Termination, 250V AC 440Hz, 1A Current, 1μF Capacitance, Model DRF01

Name: Roxburgh EMC DIN Rail RFI Filter, 1 Phase, Screw Termination, 250V AC 440Hz, 1A Current, 1μF Capacitance, Model DRF01
Brand: Roxburgh EMC
SKU: 149964



Category Electronic Components Brand Roxburgh EMC Condition New

Specifications

Country of Origin	United Kingdom
Brand	Roxburgh EMC
Height	93mm
Length	80mm
Model	DRF01
Depth	22.5mm
Mount Type	DIN Rail
Operating Frequency	440Hz
Series	DRF
Maximum Operating Temperature	85°C
Resistance	640mΩ
Capacitance	1μF
Minimum Operating Temperature	-25°C
Maximum Current	1A
Number of Phases	1
Leakage Current	1.46mA
Maximum Voltage	250V ac
Inductance	18mH
Standards/Approvals	EN 60939
Termination Style	Screw
Power Loss	0.64W
Roxburgh EMC, DRF 3 A 250V ac 440Hz, DIN Rail RFI Filter, Screw 1 PhaseBrand	Roxburgh EMC
Block, HFE 156-230/X 1 A 250V ac 60Hz, DIN Rail RFI Filter, Screw 1 PhaseBrand	Block

Key Features

Suitable for industrial and electronic equipment requiring EMI suppression.
Offers spike and surge protection with universal DIN rail mounting.
Operating frequency of 440Hz with effective filtering between 150 kHz to 30 MHz.
Compact dimensions of 93mm height, 80mm length, and 22.5mm depth.
Leakage current rating of 1.46mA ensures safety and compliance.
Robust construction supports operating temperatures from -25°C to 85°C.
Power loss is low at 0.64W for energy-efficient operation.
Includes 1μF capacitance and 18mH inductance for high-performance filtering.

Product Description

Roxburgh EMC DRF01 is a high-quality DIN Rail RFI filter designed for use in single-phase AC applications with a maximum current of 1A and voltage rating of 250V AC at 440Hz. This filter provides effective EMI suppression and voltage spike protection across the line, ensuring enhanced performance and longevity of electronic and industrial equipment.

The filter features a screw termination style for secure electrical connections and is suitable for both 'Top Hat' and 'G-Type' DIN rails. Its compact dimensions (93mm height, 80mm length, and 22.5mm depth) allow easy mounting in control panels and electrical enclosures.

Operating within temperature ranges from -25°C to 85°C, the Roxburgh EMC DRF01 maintains filtering performance with low leakage current at 1.46mA and minimal power loss of 0.64W. The capacitance of 1μF and inductance of 18mH contribute to effective filtering of frequencies ranging from 150 kHz to 30 MHz, making it ideal for protecting sensitive Electronic Components and reducing interference.

Spike and surge protection for electrical equipment. Universal DIN rail mounting compatibility. Effective EMI filtering in industrial and commercial environments. Compact size for easy installation in electrical panels. Complies with EN 60939 standards for electromagnetic compatibility.

Designed for use in AC and DC line voltage applications. Low power loss enhances energy efficiency. Robust build suited for demanding industrial conditions. Leakage current and resistance ratings ensure safe operation.

This RFI filter is widely used in industrial automation, power management, manufacturing, and electrical distribution systems where EMI suppression is critical. Its reliable performance helps maintain system integrity and compliance with regulatory standards.
