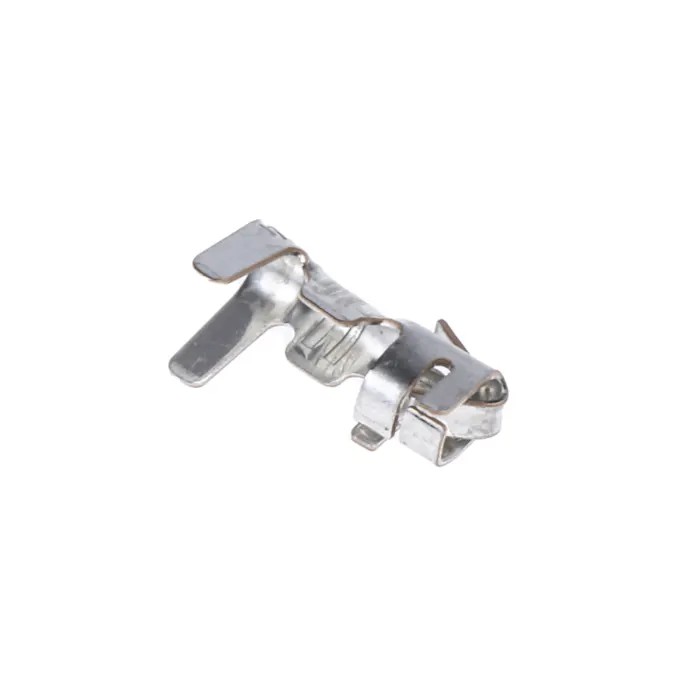

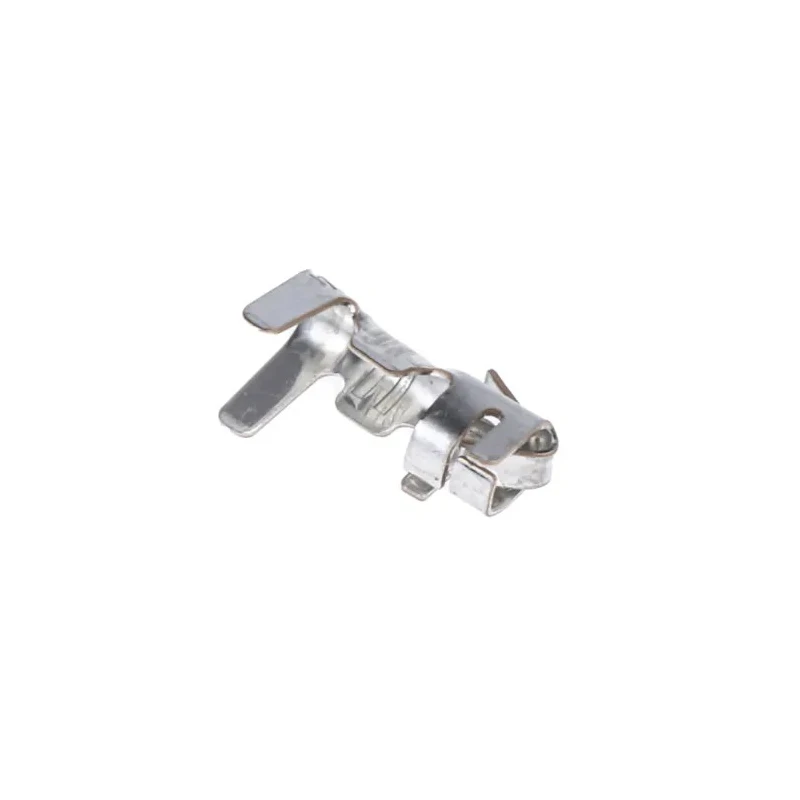

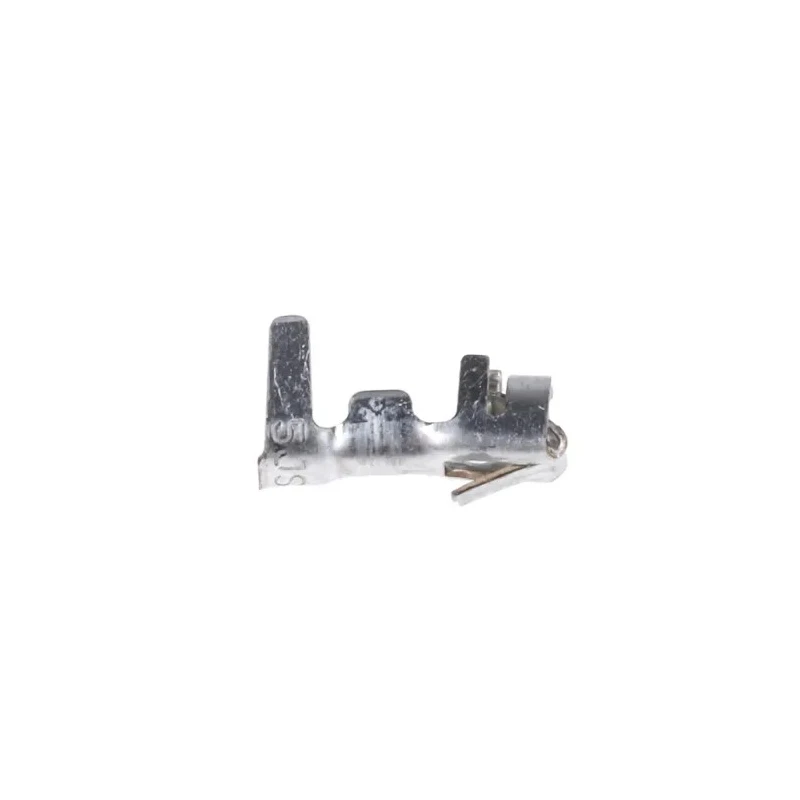

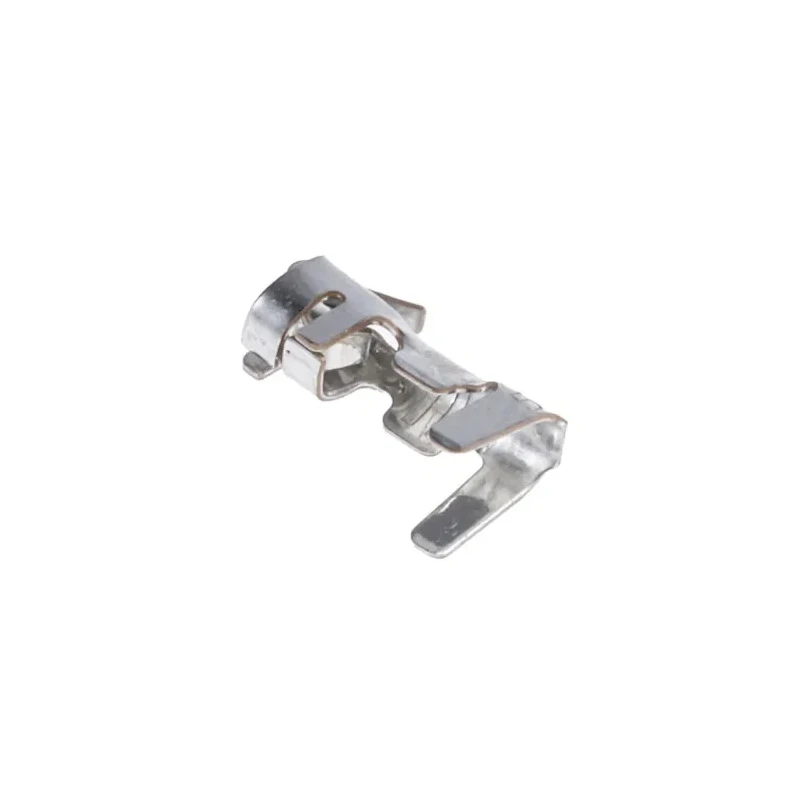

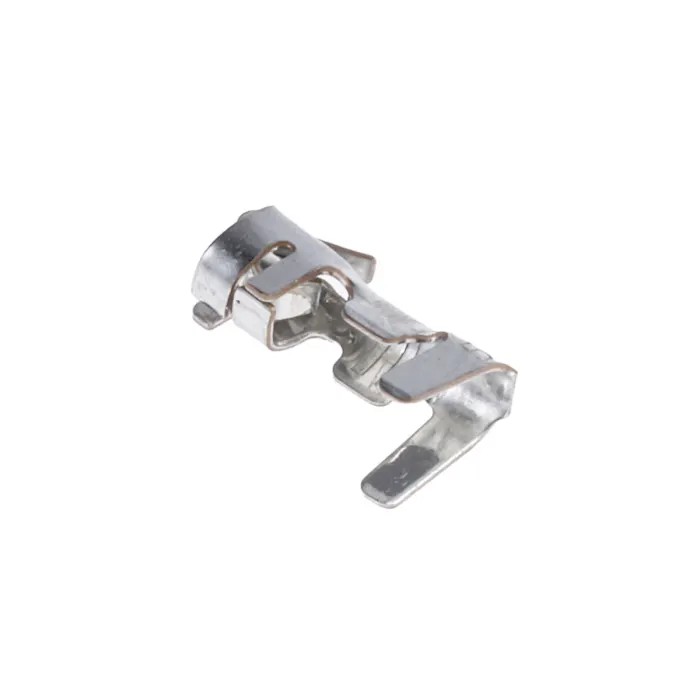

JST XH Series Female Crimp Terminal 3A Current 28 AWG to 22 AWG BXH-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Female Crimp Terminal 3A Current 28 AWG to 22 AWG BXH-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	BXH-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	XH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	XH Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ
JST XH Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	JST

Key Features

The crimp terminal is made from phosphor bronze with tin plating for excellent conductivity and corrosion resistance.
It features a female contact type for XH series connectors.
Supports a wire size range of 28 AWG minimum to 22 AWG maximum, suitable for diverse electrical applications.
The contact resistance is low, with a maximum of 10 milliohms ensuring reliable connections.
Operating temperature ranges from -25°C to 85°C, making it suitable for various environmental conditions.
Termination type is crimp, allowing secure and efficient wire connections.
Manufactured in China and conforms to standard industrial requirements but has no specific approvals mentioned.

Product Description

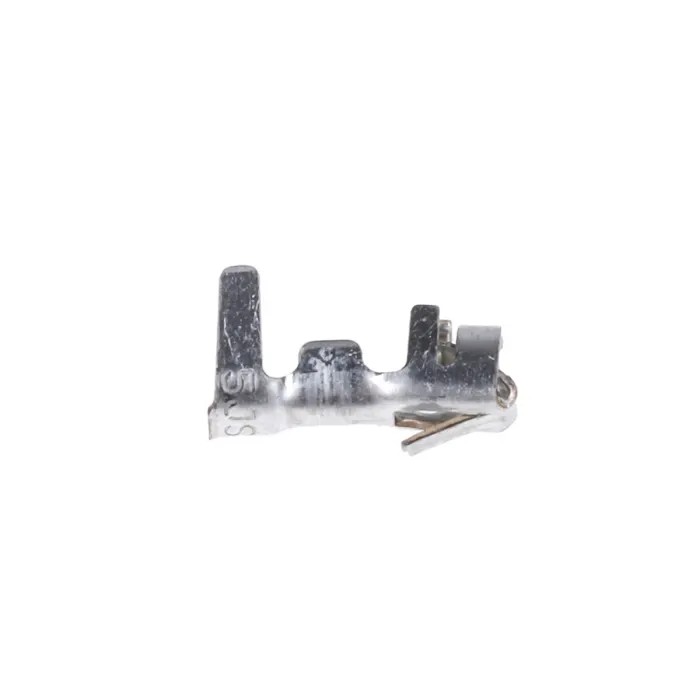

JST BXH-001T-P0.6 Female Crimp Terminal is a high-quality electrical connector contact designed for reliable performance in electronic and electrical applications. Intended for use with XH Connector Housings, this crimp terminal accepts wire sizes from 28 AWG (0.08 mm²) up to 22 AWG (0.33 mm²), supporting a current rating of 3 amperes.

Constructed from robust phosphor bronze, the contact is plated with tin to provide superior conductivity and resistance to corrosion, ensuring long-lasting electrical connections. The female contact type is specifically tailored for XH series connectors, offering seamless compatibility in assemblies.

With a maximum contact resistance of 10 milliohms and an operating temperature range from -25°C to 85°C, this crimp terminal is suitable for use in diverse industrial, electronic manufacturing, and assembly environments. The crimp termination type allows for secure wire attachments, enhancing connection integrity and durability.

The product is manufactured in China and does not carry specific certification approvals, but adheres to typical industry standards for such components. The crimp terminal is made from phosphor bronze with tin plating offering reliability and corrosion resistance.

Compatible with XH Series Connector Housings for efficient assembly. Supports wire sizes ranging from 28 AWG to 22 AWG, suitable for a variety of electrical wiring needs. Maximum contact resistance of 10 milliohms ensures minimal power loss.

Operates effectively within a temperature range of -25°C to 85°C, suitable for diverse environments. Termination type is crimp, facilitating firm wire connections. Current rating of 3 amperes supports moderate electrical loads.

This JST XH Series Female Crimp Terminal is ideal for electronics, power and connectors industry segments, including PCB assembly, wiring harness manufacturing, and electronic device construction. It is frequently used in industrial automation, HVAC control units, and commercial electrical equipment assemblies.
