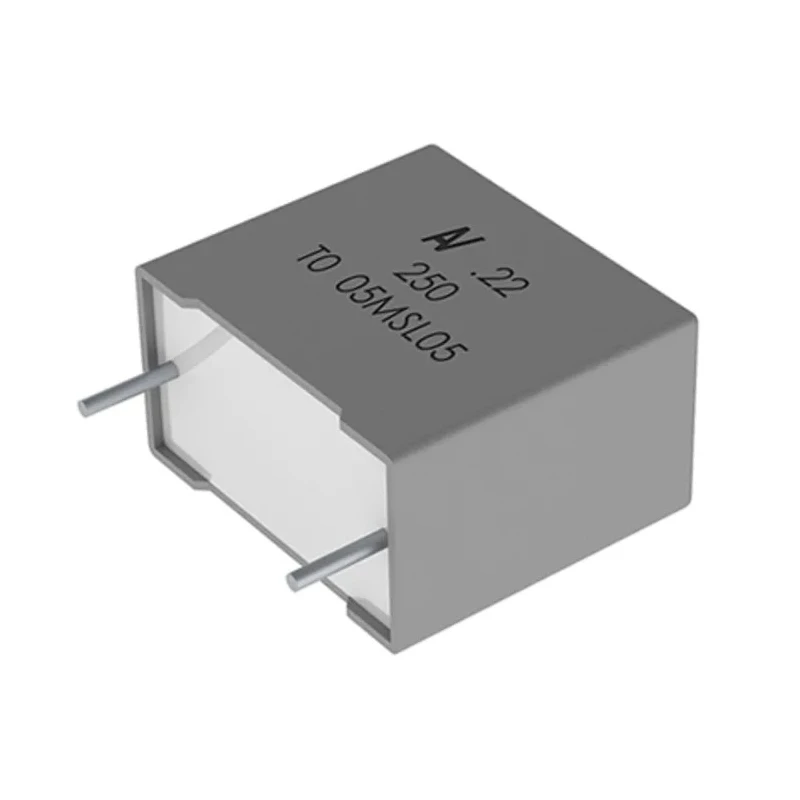

KEMET R60 Film Capacitor, ±10% Tolerance, 220 nF, 250 V DC, 160 V AC, Through Hole Mount R60IF3220506AK
Specifications
| Country of Origin | Italy |
|---|---|
| Capacitance Range | 0.001 μF - 150.0 μF |
| Brand | KEMET |
| Height | 11mm |
| Length | 13mm |
| Model | R60IF3220506AK |
| Packaging | Bag |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | R60 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Climatic category | 55/105/56 |
| Terminal type | Solder |
| Dissipation Factor | 1% |
| Lead Length | 25mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 160V ac |
| Rated DC Voltage | 250V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 10.0 - 37.5 mm |
Key Features
- Constructed with metallized polyester film ensuring stability and high insulation resistance.
- Radial leads with 10 mm lead pitch and 25 mm lead length suitable for through hole soldering.
- Operating temperature range from -55°C to 105°C for reliable performance.
- Designed to meet Automotive Standard AEC-Q200 for quality and durability.
- Compact dimensions with length 13 mm, width 5 mm, and height 11 mm.
- RoHS compliant and encapsulated with thermosetting resin for enhanced protection.
- Ideal for blocking, bypassing, coupling, and decoupling electronic circuits.
- Dielectric dissipation factor of 1% ensuring low energy loss.
Product Description
The KEMET R60IF3220506AK is a high-quality R60 Series film capacitor designed for various electronic and industrial applications. Featuring a capacitance of 220 nF with a ±10% tolerance, this capacitor supports rated voltages of 250 V DC and 160 V AC, making it suitable for both DC and AC circuit designs.
Manufactured using metallized polyester film technology, the capacitor offers excellent electrical properties and stability. Its through hole mount with radial tinned wire leads spaced 10 mm apart and lead length of 25 mm ensures easy and secure soldering to printed circuit boards.
Operating reliably in temperature ranges from -55°C to 105°C, it complies with the automotive standard AEC-Q200, guaranteeing durability in automotive and harsh environment applications. The compact size (13 mm length, 5 mm width, 11 mm height) and RoHS compliance highlight its suitability for environmentally conscientious electronic design.
Common applications include blocking unwanted DC components in signals, bypassing noise in circuits, coupling for AC signals, and decoupling power supplies to maintain signal integrity. The dielectric dissipation factor of 1%, along with lead diameter of 0.6 mm and dual pin connections, further enhance its electrical performance.
Constructed with metallized polyester film, providing reliable electrical characteristics. Radial leads designed for secure through hole mounting. Wide operating temperature range enables use in various environments. Compliance with RoHS and automotive quality standard AEC-Q200.
Compact dimensions optimize board space utilization. Suitable for blocking, coupling, bypassing, and decoupling circuit functions. Low dissipation factor minimizes energy losses. Manufactured in Italy to high quality standards.
This Film Capacitor is an excellent choice for industrial, automotive, laboratory, electronic manufacturing, and HVAC equipment applications where reliable passive component performance is critical.
EnvMart offers the KEMET R60IF3220506AK capacitor to support projects requiring precise capacitance, stable operation, and compliance with international standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 220 nF with a tolerance of ±10%.
It has a rated DC voltage of 250 V and a rated AC voltage of 160 V.
The operating temperature range is from -55°C to 105°C.
The lead length is 25 mm, and the lead pitch is 10 mm.
This model supports through hole mounting with radial leads.
Its dimensions are 13 mm in length, 5 mm in width, and 11 mm in height.
The dielectric dissipation factor is 1%, which indicates low energy loss.
It is designed to meet the automotive standard AEC-Q200, ensuring quality and durability.
Yes, the KEMET R60IF3220506AK is RoHS compliant.
It is suitable for blocking, bypassing, coupling, and decoupling electronic circuits.
The terminal type is solder, designed for secure connections.
This capacitor is manufactured in Italy.
