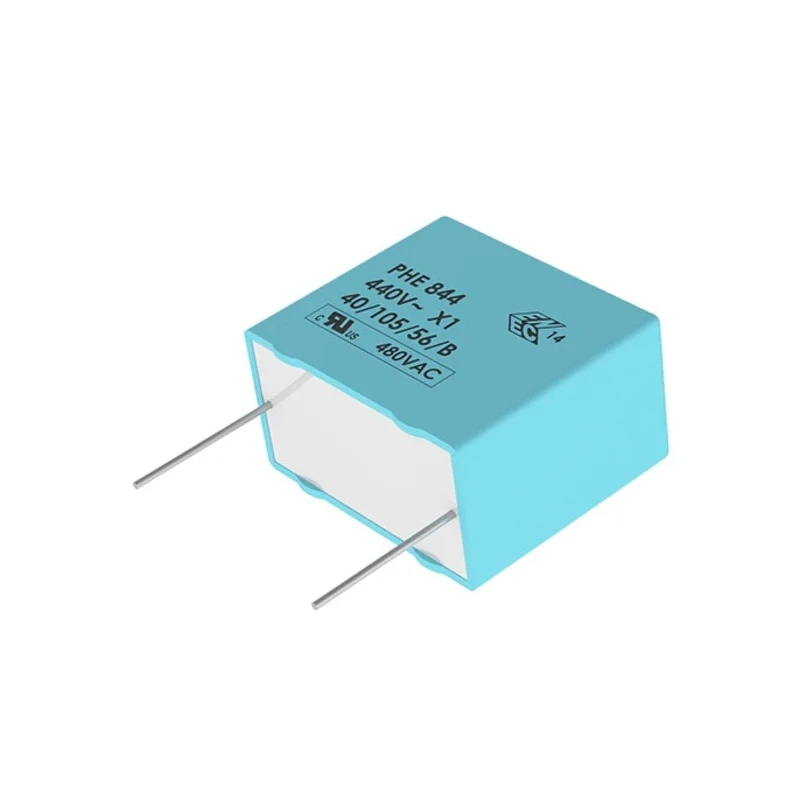

KEMET PHE844 Film Capacitor X1, ±20 % Tolerance, 470 nF Capacitance, 1 kV DC, 440 V AC, Through Hole Mount PHE844

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE844 Film Capacitor X1, ±20 % Tolerance, 470 nF Capacitance, 1 kV DC, 440 V AC, Through Hole Mount PHE844

Name: KEMET PHE844 Film Capacitor X1, ±20 % Tolerance, 470 nF Capacitance, 1 kV DC, 440 V AC, Through Hole Mount PHE844
Brand: KEMET
SKU: 149218
Price: 2.19 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Capacitance Range	0.1 - 2.2 μF
Display	screen
Brand	KEMET
Height	24.5mm
Length	26mm
Model	PHE844
Packaging	Tape & Reel
Width	15.5mm
Mount Type	Through Hole
Series	PHE844
Maximum Operating Temperature	105°C
Tolerance	±20 %
Capacitance	470nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	0.4%
Lead Length	30mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	440V ac
Rated DC Voltage	1kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Suppression Class	X1
Capacitance tolerance	±20%, ±10%
Lead Spacing	22.5 - 37.5 mm

Key Features

Constructed with metallized polypropylene film for durability and reliability.
Capacitance tolerance of ±20% ensures stable performance.
Rated AC voltage of 440 V AC and DC voltage of 1 kV DC.
Operating temperature range from -40°C to +105°C for versatile use.
Radial terminal type with lead pitch of 22.5 mm and lead length of 30 mm.
Encapsulated with self-extinguishing resin for safety.
Compliance with RoHS standards for environmental compliance.
Suitable for EMI suppression with Class X1 rating.

Product Description

KEMET PHE844 Film Capacitor PHE844 is a high-quality capacitive component designed for EMI suppression in electrical circuits. It features metallized polypropylene film construction encapsulated with a self-extinguishing resin ensuring safety and reliability in operation. The capacitor offers a capacitance of 470 nF with a ±20% tolerance suitable for demanding applications.

Rated for an AC voltage of 440 V AC and a DC voltage rating of 1 kV DC, this capacitor supports robust performance across a wide temperature range from -40°C to +105°C. The radial terminal type with a lead pitch of 22.5 mm and lead length of 30 mm allows for secure through hole mounting in various PCB designs. The dissipation factor is low at 0.4%, contributing to high efficiency.

The PHE844 series is environmentally compliant with RoHS standards and features lead-free terminations packaged in tape and reel format for ease of use in automated manufacturing processes. Its Class X1 suppression rating makes it ideal for applications requiring EMI suppression and noise reduction in industrial, laboratory, and commercial electronic assemblies.

Constructed with metallized polypropylene film encapsulated with self-extinguishing resin. Rated AC voltage 440 V AC and DC voltage 1 kV DC. Operating temperature range of -40°C to +105°C. Radial terminal type with 22.5 mm lead pitch and 30 mm lead length.

RoHS compliant and environmentally safe. Low dissipation factor of 0.4% for efficient performance. Class X1 suppression rating suitable for EMI filtering. Tape and reel packaging suited for automated assembly. Capacitance tolerance ±20%, capacitance range 0.1 - 2.2 µF.

This Film Capacitor is employed widely across industrial, electronic manufacturing, and commercial electronic equipment for EMI suppression and noise filtering. Its robust temperature tolerance and safety certifications enable confident use in demanding environments. Explore more electronic components and capacitors at EnvMart's Electronics & Electricals category for comprehensive solutions.
