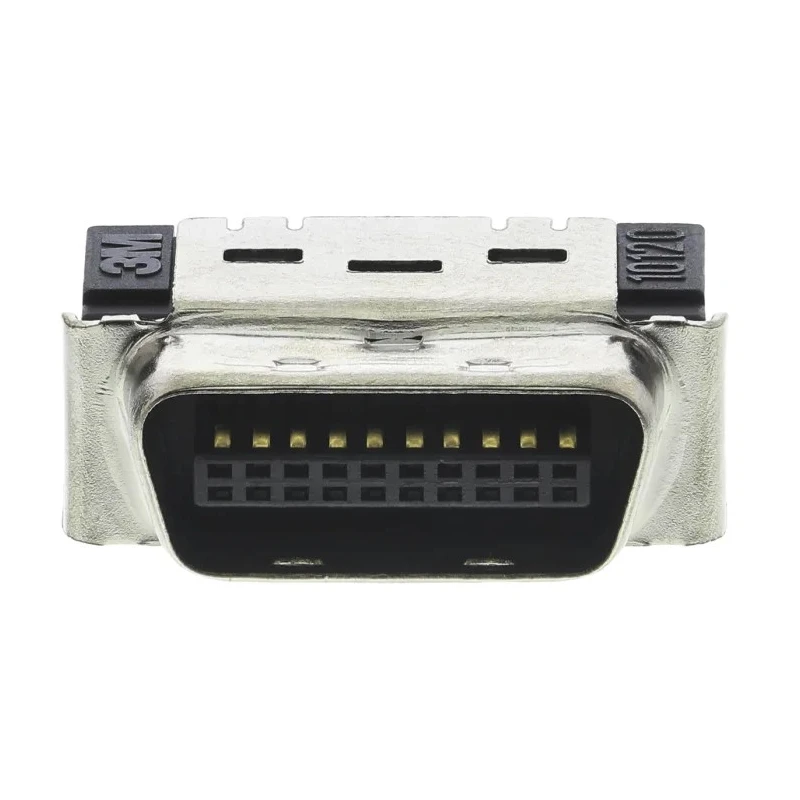

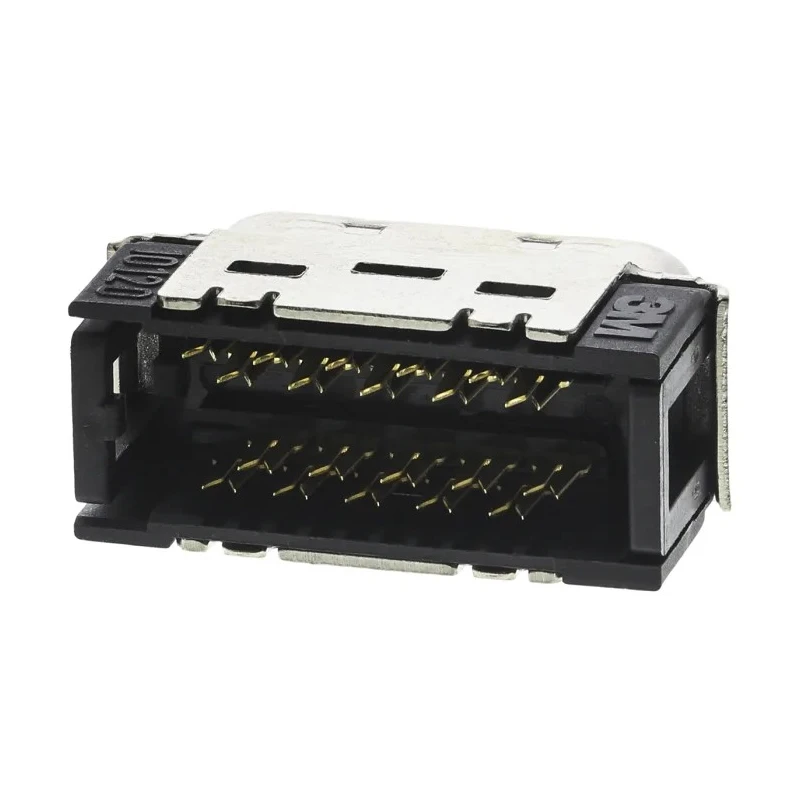

3M 20 Way Right Angle 1.27 mm Pitch Cable D-Sub Connector with Wire Male 10120-6000EL

Free Delivery in India | Lowest Global Shipping Charges

3M 20 Way Right Angle 1.27 mm Pitch Cable D-Sub Connector with Wire Male 10120-6000EL



Category D-Sub Connector Brand 3M Condition New

Specifications

Country of Origin	Japan
Voltage	200V
Brand	3M
Orientation	Right Angle
Current	1A
Model	10120-6000EL
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	101
Mounting Hardware	Wire
Termination Type	IDC
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Pitch	1.27mm
Contact Plating	Gold over Nickel
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
D-Sub Shell Size	D

Key Features

The connector features 20 contacts for stable power and signal transfer.
Right angle orientation supports versatile cable mounting options.
Constructed with a steel housing and copper alloy contacts plated with gold over nickel for excellent durability and conductivity.
Supports voltage of up to 200V and current rating of 1A.
Operates reliably within temperature ranges from -20°C to 85°C.
Provides exceptional EMI and ESD protection to safeguard connected equipment.
Compatible with various cable types including flat, round, twisted pair, and twinax cables.
Ideal for applications in hospital communications, automated assembly lines, and office networks.

Product Description

3M 10120-6000EL is a 20 Way Right Angle Cable D-Sub Connector designed for secure and robust electronic connectivity. Featuring a 1.27 mm pitch and IDC wire termination, it ensures stable and reliable signal and power transfer in various electronic and industrial applications.

This cable-mount connector plug is suitable for diverse cable constructions including flat, round, twisted pair, and twinax cables, providing flexibility across multiple connection schemes. Its steel housing delivers mechanical strength and corrosion resistance, complemented by copper alloy contacts with gold over nickel plating to ensure excellent electrical conductivity and durability.

Operating voltage is rated at 200V with a current capacity of 1A, making it suitable for moderate power applications. The connector has a specified operating temperature range from -20°C to 85°C, allowing use in environments ranging from cold to warm industrial conditions. The robust design also incorporates effective electromagnetic interference (EMI) and electrostatic discharge (ESD) shielding, protecting sensitive circuits and connected devices from electrical noise and damage.

This 3M 101 series connector enhances connection reliability with its insulation displacement connection (IDC) termination and wiper-on-wiper contact design. It is widely used in industrial automation, hospital communication interfaces, office network equipment, and other instrumentation requiring dependable multi-contact cable connections.

The connector supplies stable electrical connections with gold-plated contacts to minimize resistance and wear. Right angle mounting facilitates installation in confined spaces and supports cable routing optimization. Its steel housing and glass-reinforced polyester components resist rust and require minimal maintenance.

Applications include automated production lines, medical communication systems, and network infrastructure. Manufactured in Japan, the connector meets rigorous quality and performance standards. Explore EnvMart’s range of connectors for superior electronic components designed to meet your industrial and commercial requirements.
