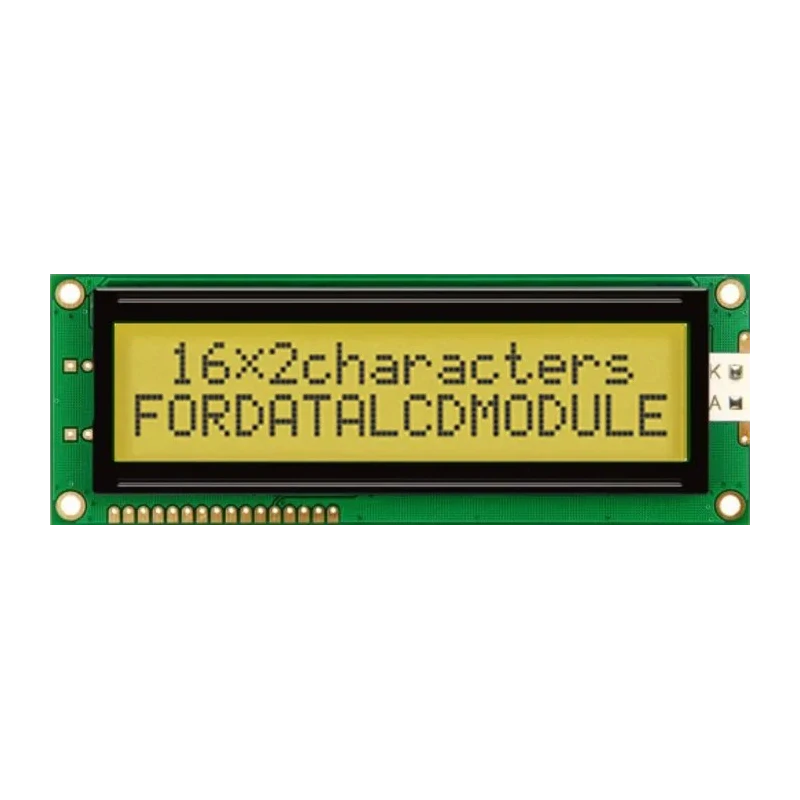

Fordata LCD Graphic Display 2 x 16 Characters, Yellow and Green Illumination, LED Backlight, FC1602P00-FHYYBW-51SE

Free Delivery in India | Lowest Global Shipping Charges

Fordata LCD Graphic Display 2 x 16 Characters, Yellow and Green Illumination, LED Backlight, FC1602P00-FHYYBW-51SE

Name: Fordata LCD Graphic Display 2 x 16 Characters, Yellow and Green Illumination, LED Backlight, FC1602P00-FHYYBW-51SE
Brand: Fordata
SKU: 148624
Price: 29.05 USD
Availability: InStock



Category LCD Graphic Display Brand Fordata Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Fordata
Model	FC1602P00-FHYYBW-51SE
Series	FC
Character height	9.7mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
External Width	122mm
External Depth	13.2mm
External Height	44mm
Standards/Approvals	RoHS
Character Width	4.8mm
Illumination Colour	Yellow, Green
Viewing Area Dimensions	99 x 24 mm
Backlight Type	LED
Character Matrix	2 x 16

Key Features

The display features a viewing area of 99 x 24 mm with external dimensions of 122 mm width and 44 mm height.
It supports a character height of 9.7 mm and width of 4.8 mm.
The backlight uses LED technology providing superior visibility in low light conditions.
Operates reliably within a temperature range of -20°C to 70°C.
Complies with RoHS standards ensuring environmental safety.
Features a built-in controller (SPLC780D or equivalent) and supports 4-bit or 8-bit MPU interface.
Operates at a +5.0V power supply with a 1/16 duty cycle.
Backlight can be driven by multiple pin options for flexible integration.

Product Description

Fordata FC1602P00-FHYYBW-51SE LCD Graphic Display is a high-quality 2 x 16 character LCD module featuring LED backlighting with yellow and green illumination suitable for industrial, electronic component, and embedded system applications.

This module offers a viewing area of 99 x 24 mm and external dimensions of 122 mm width, 44 mm height, and 13.2 mm depth. The character height is 9.7 mm and width is 4.8 mm, ensuring clear and precise text display.

Equipped with a built-in SPLC780D or equivalent controller, the display supports 4-bit or 8-bit MPU interface for flexible connectivity. It operates on a +5.0V power supply, featuring a 1/16 duty cycle for efficient energy use. The LED backlight ensures excellent visibility even under low ambient lighting conditions, with illumination colors including yellow and green.

This display module is compliant with RoHS standards and operates reliably within -20°C to 70°C, making it suitable for diverse industrial, laboratory, manufacturing, and embedded electronics applications where robust temperature tolerance is required.

The backlight circuitry is designed for convenient control, allowing activation via multiple pin configurations (PIN1, PIN2, PIN15, PIN16, or A, K pins), enabling integration flexibility across various hardware platforms.

The display’s compact size and character configuration make it ideal for user interface panels, instrumentation displays, and embedded device monitoring. The durable construction and compliance with environmental standards assure long-term reliability and regulatory adherence.

Compatible with a range of electronic devices requiring monochrome LCD display with efficient backlighting. Suitable for industrial automation, instrumentation, control panels, and consumer electronics requiring reliable text display.
