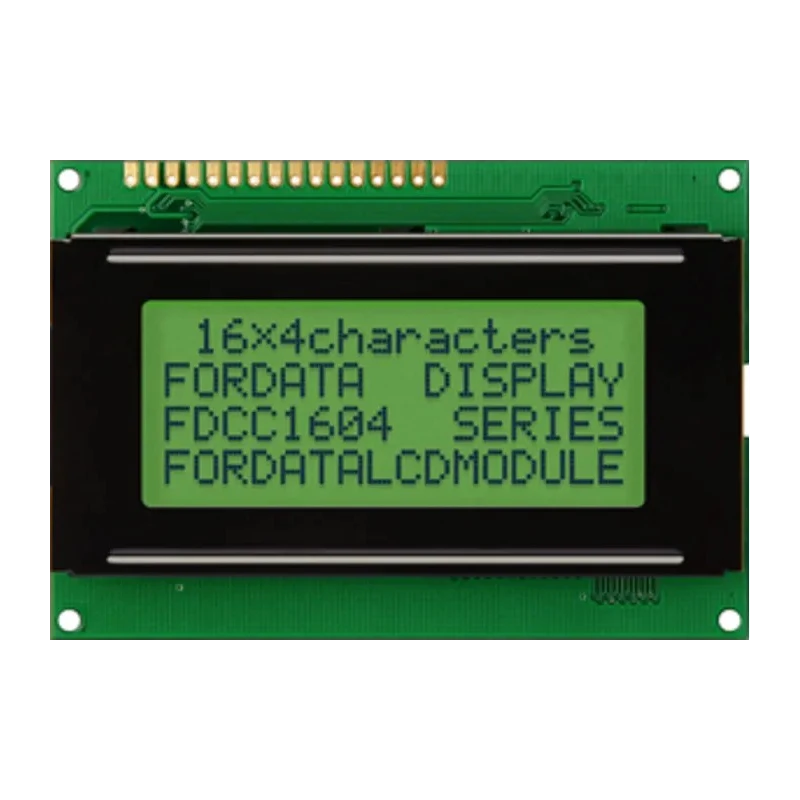

Fordata LCD Graphic Display 4 x 16 Characters Yellow Green Illumination FC1604A01-RNNYBW-66SE

Fordata FC1604A01-RNNYBW-66SE LCD Graphic Display is a 4 x 16 character matrix monochrome display module featuring yellow and green illumination. This compact display is designed with a viewing area of 62 by 25 mm and comes with an external dimension of 87 mm width, 60 mm height, and 9.5 mm depth.

This display module includes a built-in controller compatible with SPLC780D or equivalent, ensuring seamless integration with microprocessor units. It operates with a standard +5.0V power supply, with options available for +3.0V supply, supporting both 4-bit and 8-bit MPU interfaces.

Designed for industrial, laboratory, and electronic component integration applications, this LCD module supports a 1/16 duty cycle and provides excellent character clarity with a 5x8 dot matrix and a character height of 5.4 mm and width of 3 mm.

The backlight illumination color is yellow and green, making it suitable for systems requiring clear visibility under various lighting conditions. The module is RoHS compliant and supports operational temperatures ranging from -20°C to +70°C, enhancing its reliability in diverse environments.

This display module is ideal for use in industrial electronic devices, instrumentation panels, and embedded systems requiring graphical character display modules. The country of origin is China.

Features a 5x8 dot character matrix with cursor support. Built-in controller (SPLC780D or equivalent) for efficient operation. Operates with a +5.0V power supply, also available for +3.0V. Offers 1/16 duty cycle and supports 4-bit or 8-bit MPU interface.

Backlight (BKL) driven via PIN1, PIN2, or PIN15, PIN16, or A, K for flexible control. Explore the Electronics Components category at EnvMart for more high-quality display modules from reputable brands like Fordata.
