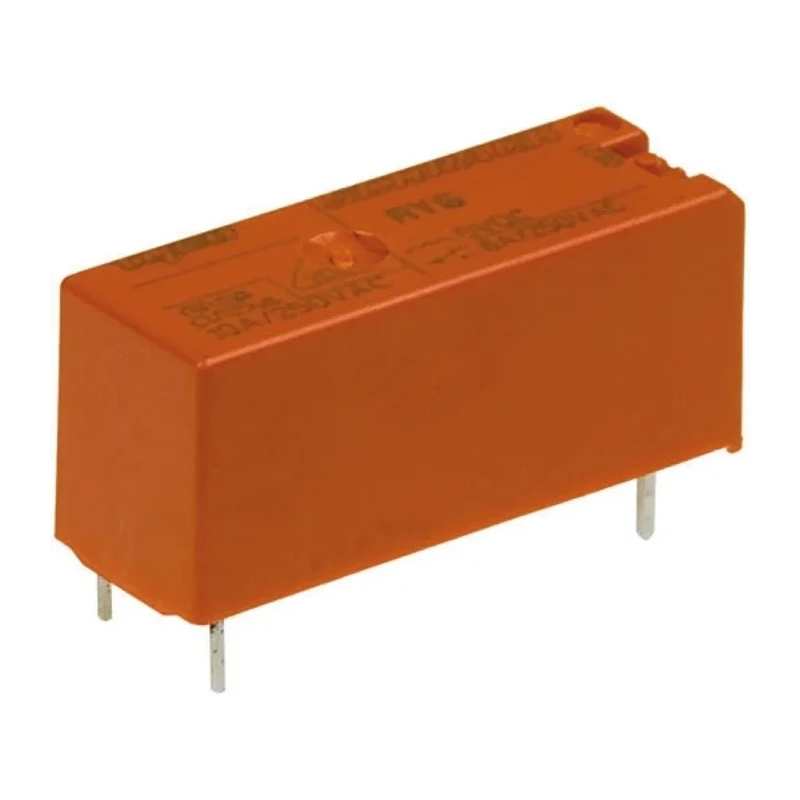

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current SPDT RY612012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY612012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 627Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Designed for PCB mounting with solder terminal type.
- Switching AC voltage rating of 400V AC.
- Gold plated contacts for enhanced durability and conductivity.
- Operating temperature range from -40°C to 70°C.
- Coil resistance of 627 ohms and 250mW power consumption.
- Complies with IEC 60335-1, RoHS, and VDE standards.
- Creepage and clearance distance of 8mm for electrical safety.
Product Description
TE Connectivity RY612012 PCB Power Relay is engineered for reliable switching performance in industrial and automation applications. This power relay utilizes a 12V DC coil with an 8A switching current capacity and an SPDT (Single Pole Double Throw) contact configuration, making it versatile for PCB integration.
The relay features a solder terminal type optimized for PCB mounting, providing secure and stable electrical connections. Its switching AC voltage rating of 400V AC supports high voltage operational requirements, while gold plated contacts ensure minimal contact resistance and high conductivity for durable operation.
Designed to operate effectively within a broad temperature range from -40°C to 70°C, this relay adapts well to harsh industrial environments. The compact size with dimensions of height 12.3mm, width 10.1mm, and length 28.5mm makes it suitable for space-constrained PCB layouts.
The coil specifications include a resistance of 627 ohms and a power consumption of 250mW, promoting energy efficiency during operation. The relay's design conforms to international standards such as IEC 60335-1, RoHS, and VDE, ensuring compliance with safety, quality, and environmental regulations.
Additional features include a creepage and clearance distance of 8mm, enhancing electrical safety by preventing short circuits and flashover. Manufactured in the Czech Republic, the RY612012 relay ensures high reliability and consistency in performance.
Designed for PCB mounting with solder terminal type. Switching AC voltage rating of 400V AC. Gold plated contact material for durability. Wide operating temperature range from -40°C to 70°C. Compact dimensions with 28.5mm length and 12.3mm height.
Energy efficient coil with 627Ω resistance and 250mW power. Conforms to IEC 60335-1, RoHS, VDE standards. Creepage and clearance distance of 8mm for electrical safety.
This TE Connectivity PCB Power Relay is ideal for industrial automation, electrical control systems, manufacturing equipment, and other applications requiring reliable and efficient switching. Its compliance with international standards guarantees safety and performance consistency.
Explore more Power Relay options and advanced electrical components at EnvMart for your professional industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 8A, making it suitable for various applications requiring reliable switching performance.
The coil voltage for this relay is 12V DC, which is essential for its operation in various electronic circuits.
The dimensions of this relay are 28.5mm in length, 10.1mm in width, and 12.3mm in height, making it compact for PCB mounting.
This relay has a maximum switching AC voltage rating of 400V AC, suitable for high voltage applications.
The relay features a Single Pole Double Throw (SPDT) contact configuration, allowing versatile switching options.
The operating temperature range for this relay is from -40°C to +70°C, enabling it to function in harsh environments.
The coil resistance of this model is 627 ohms, which contributes to its energy efficiency during operation.
The contacts of this relay are made from gold plated material, which enhances conductivity and durability.
This relay complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental compliance.
The relay features a solder terminal type, optimized for secure PCB mounting and stable electrical connections.
The coil power consumption for this relay is 250mW, promoting energy efficiency during its operation.
This model is manufactured in the Czech Republic, ensuring high reliability and consistent performance.
