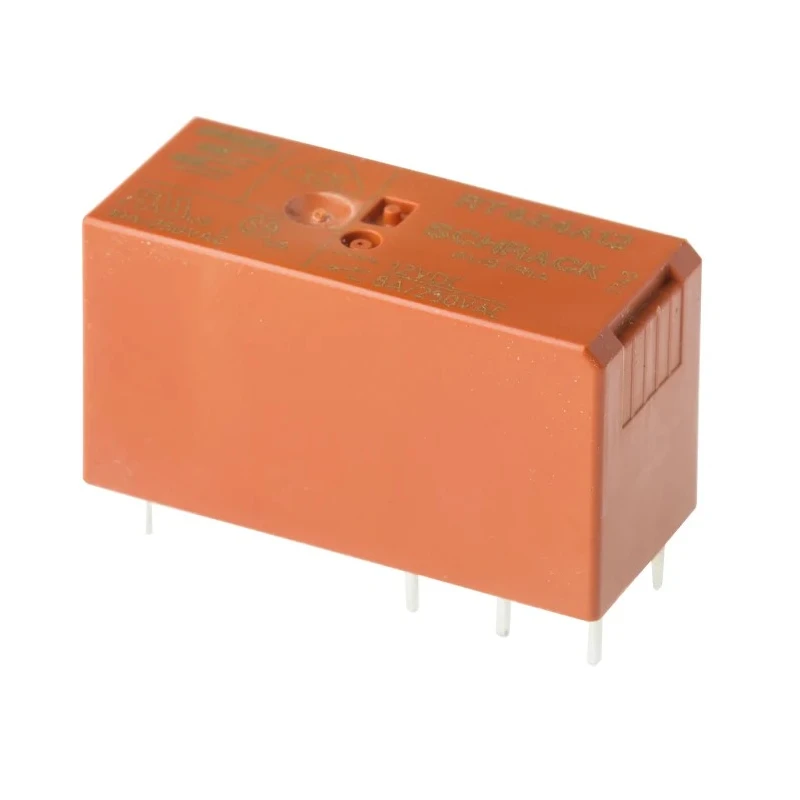

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424A12

TE Connectivity RT424A12 is a high-quality PCB power relay designed for industrial and electronic applications requiring reliable switching control. Featuring a 12V DC coil and an 8A switching current with a double pole double throw (DPDT) contact configuration, this relay is ideal for controlling multiple circuits simultaneously in compact PCB-based designs.

The relay is part of the SCHRACK series, which emphasizes reinforced insulation and robust shock resistance, capable of withstanding destructive shocks up to 100g. Its construction includes silver alloy contacts for excellent conductivity and durability. The coil resistance of 360 ohms efficiently supports the 12V DC operation, while its switching capabilities extend to 400V AC and 2 kVA switching power.

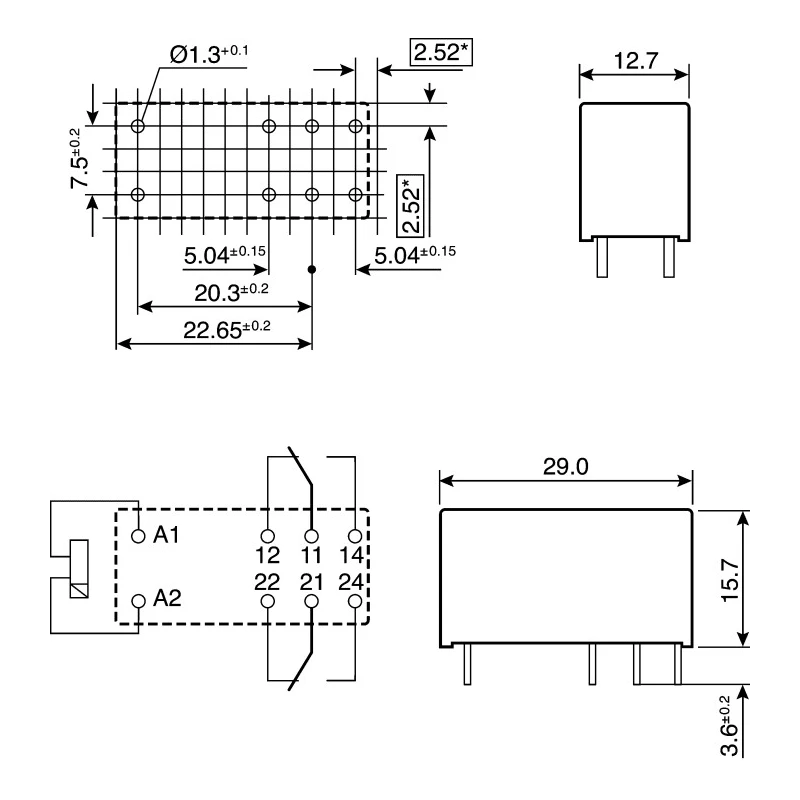

Physical dimensions of 29mm length, 12.7mm width, and 15.7mm height enable easy integration into existing electronic assemblies. Terminal solder type guarantees secure and reliable mounting on printed circuit boards. Operating temperature range from -10°C to 85°C allows use in diverse industrial environments, making it suitable for automation systems, control circuits, and other demanding electrical applications.

Manufactured in Austria, this relay complies with RoHS environmental regulations, ensuring safety and quality. The product is supplied in new condition and is designed for reliable, long-term operation in industrial, manufacturing, and automation equipment.

This relay features a PCB mount type suitable for compact circuit designs. It provides a double pole double throw (DPDT) contact configuration for versatile switching. The contact material is a durable silver alloy ensuring reliable conductivity.

It operates over a temperature range from -10°C up to 85°C, suitable for industrial environments. The relay coil resistance is 360 ohms, optimized for 12V DC coil voltage operations. Physical dimensions include a length of 29mm, width of 12.7mm, and height of 15.7mm.

Switching AC voltage rating is 400V AC with a maximum switching power of 2 kVA. Designed under the SCHRACK series, known for high quality and performance. Terminal type is solder, ensuring secure electrical connections on PCBs.

Complies with RoHS standards and is manufactured in Austria with new product condition.
